Actuator Control
E-stop (Fast Stop)
The black/white buttons on the control console control movement of the actuators that
provide elevation adjustments to the chamber.
• The left black/white controls the left actuator.
• The right black/white controls the right actuator.
Activation of the E-stop will disable the chamber contactor which cuts power to the
lamps, cooling fan and water and air solenoids.
To reset the E-stop switch, turn the switch head to the right.

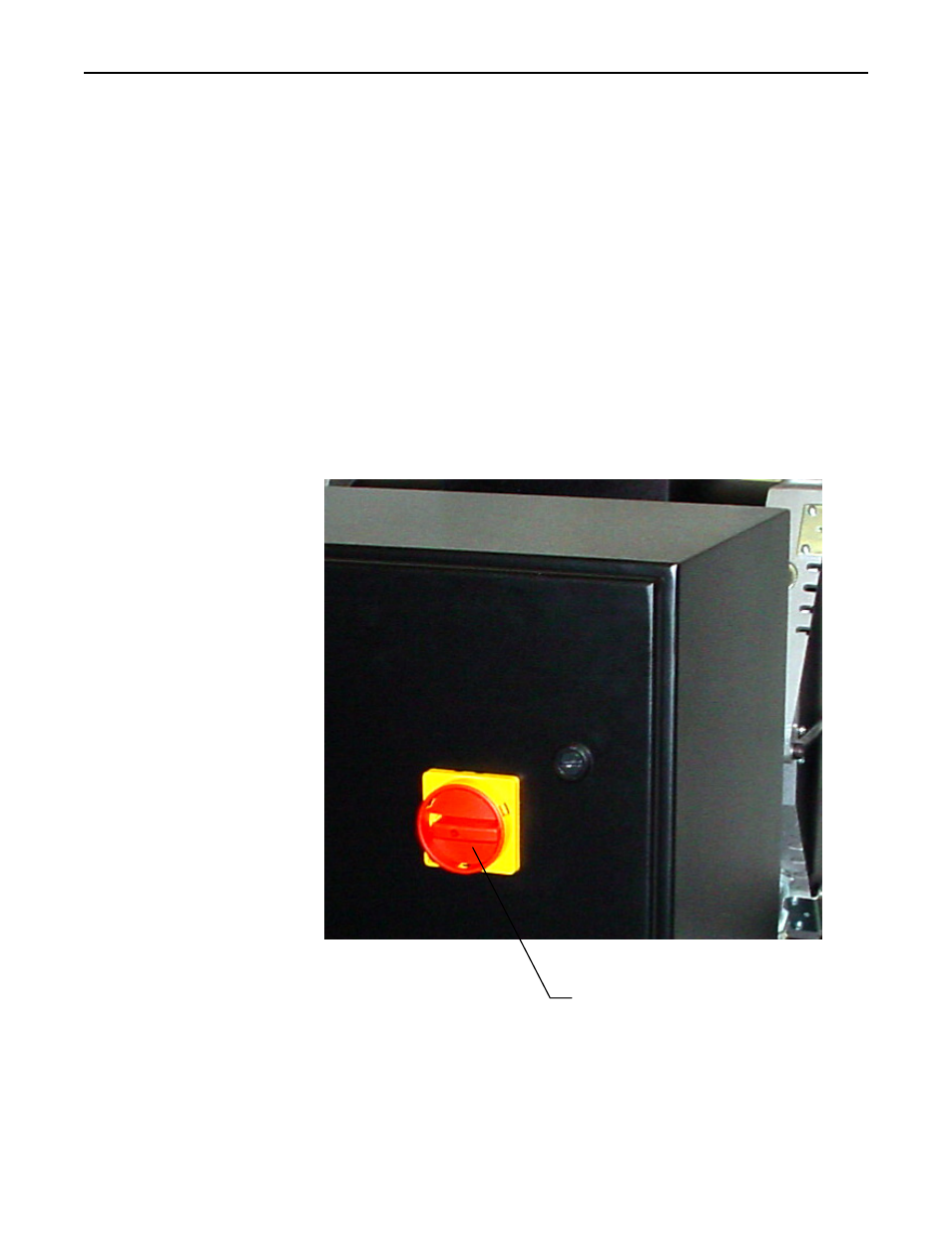

Figure 4.
Main
Disconnect
