INSTALLATION
3
23
OPTIMASS 2400
www.krohne.com 07/2014 - 4003533101- MA OPTIMASS 2400 R01 en

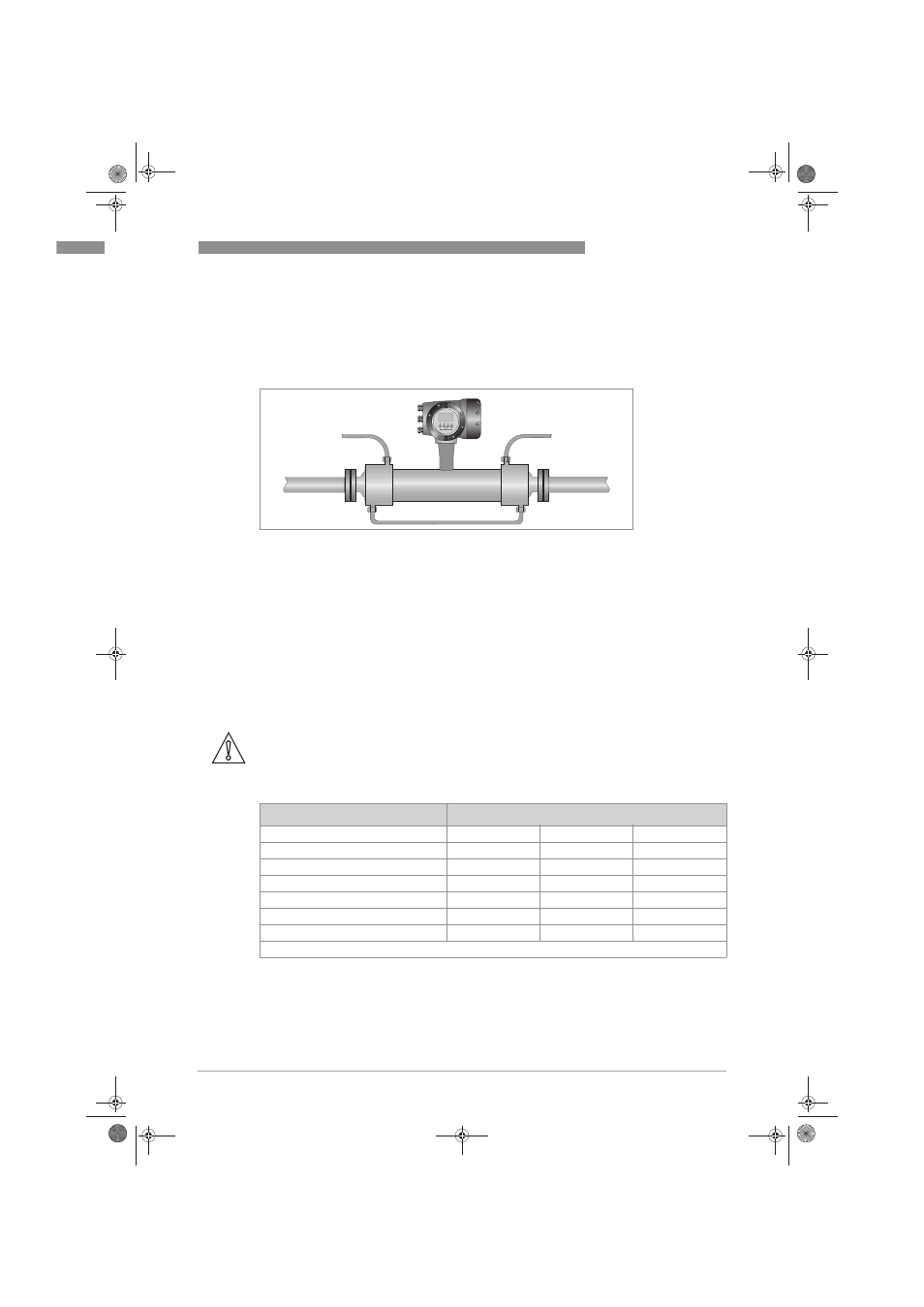

Factory fitted heating jacket Factory fitted heating jacket Factory fitted heating jacket Factory fitted heating jacket
If the meter has been ordered with a heating jacket, it will be supplied with NPT, Ermeto or
flange connections.
Connecting / using the heating jacket
• Use reinforced flexible hoses to connect the heating jacket to the heat source.
• The heating jacket material is 316L but the heating medium is also in contact with the outer
cylinder, which might be a lower grade stainless steel.
• Suitable heating mediums are steam or hot oil. Avoid the use of heating mediums that can
cause crevice corrosion in Stainless Steel.
• Where liquid is being used, set up the pipe configuration so that air can be vented from the
system.
• Where steam is being used, set up the pipe configuration so that condensation can be drained
off.
• Heat the jacket to working temperature before flowing the process fluid through the meter.
Heating times
CAUTION!
The maximum heating pressure and temperature for heating jackets is 10 barg at
130°C / 145 psig at 266°F
Temperature [°C / °F] 1 Time [minutes]
S100 S150 S250
40 / 104 7 7 10
60 / 140 10 10 17
80 / 176 15 15 30
100 / 212 20 20 60
110 / 230 30 50 90
120 / 248 75 200 270
1 Measured at the spigot end of the measuring tube.
