6.4 Measuring accuracy
Each flowmeter is standard wet calibrated under reference conditions by direct volume
comparison. The performance of the flowmeter is defined and documented in an individual
calibration certificate.
Reference conditions
• Medium: water
• Temperature: +10...30°C / +50...86°F
• Operating pressure: 1 bar / 14.5 psi
• Inlet section: ≥ 5 DN
• Electrical conductivity: ≥ 300 μS/cm
Accuracy

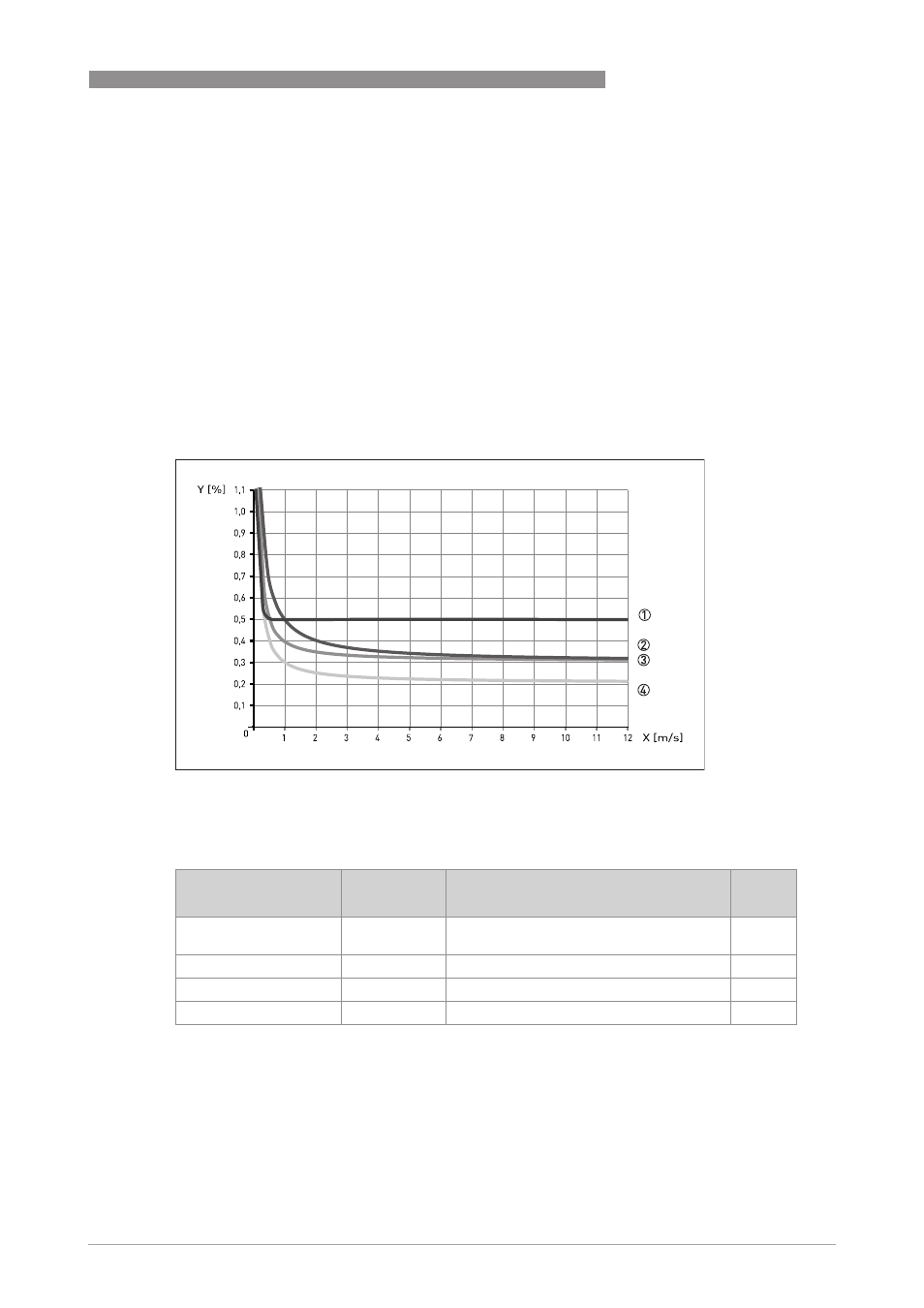

Figure 6-4: Flow velocity vs. accuracy
X [m/s] : flow velocity
Y [%]: deviation from the actual measured value (mv)
Sensor diameter Converter
type Accuracy Curve
DN25...1200 / 1...48" IFC 050 0.5% of mv above 0,5 m/s,
below 0,5 m/s, deviation ± 2.5 mm/s
1
DN25...1200 / 1...48" IFC 100 0.3% of mv + 1 mm/s 3
DN25...1600 / 1...64" IFC 300 0.2% of mv + 1 mm/s 4
DN1800...3000 / > 64" IFC 300 0.3% of mv + 2 mm/s 2
