Installing a new sensor
• Make sure that the O-ring 5 and the washer 4 on the sensor are assembled in the sequence
indicated in the drawing.
• Screw the sensor into the female thread 2 of the flow through holder 1. Tighten the sensor
by hand.
• If you have not yet established the electrical connection to the signal converter, leave the
protective cap on the sensor until you establish the electrical connection.
3.4.3 Mounting to OPTISYS CL 1100 measuring system

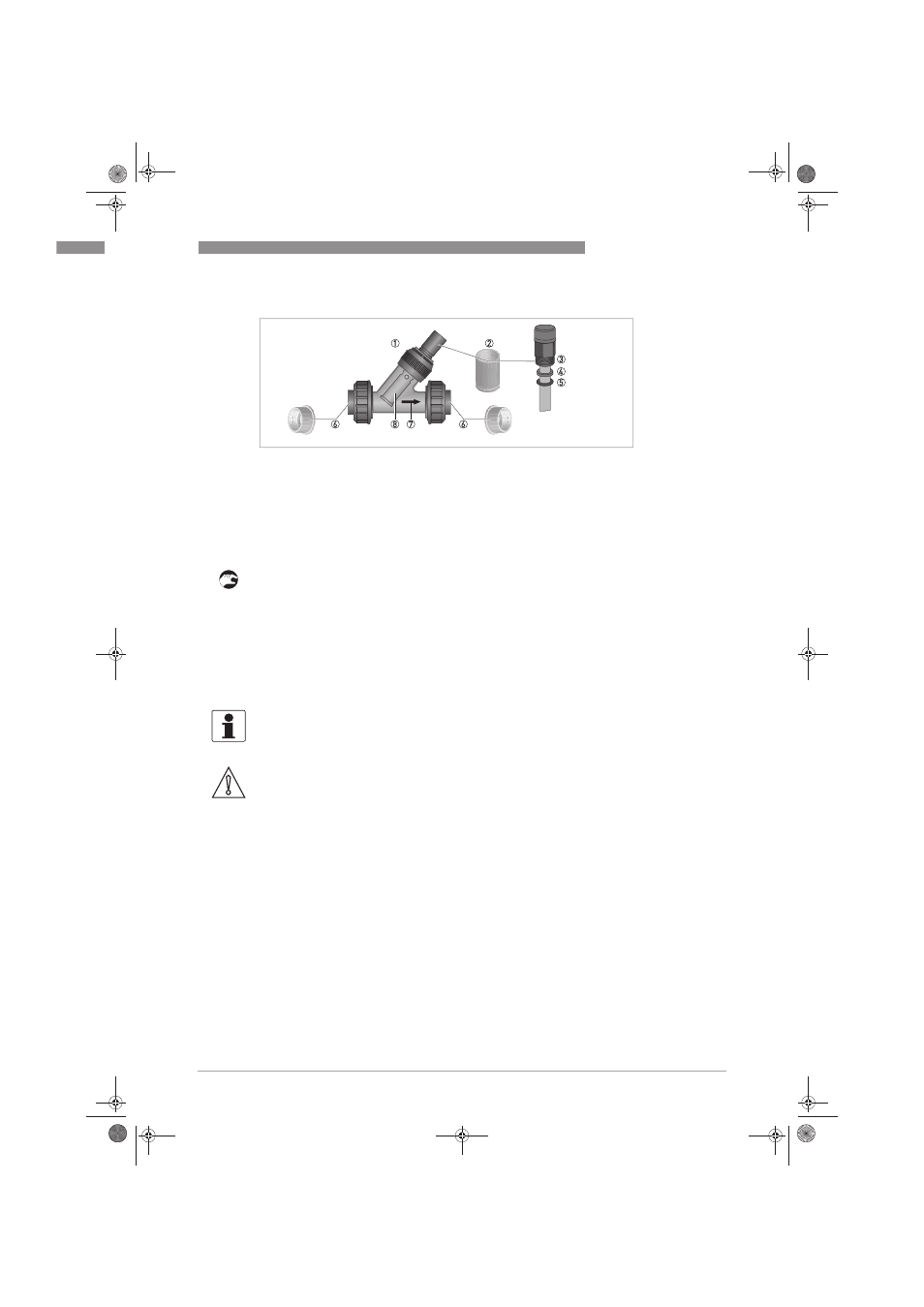

Figure 3-5: Installing the sensor into the flow through holder
1 Flow through holder
2 Female thread
3 Sensor thread
4 Washer
5 O-ring
6 Process connection
7 Flow direction
8 Protective cage
INFORMATION!
The OPTISYS CL 1100 is a preconfigured free chlorine, chlorine dioxide or ozone measuring
system and not part of the sensor's scope of delivery.
CAUTION!
The sensors are delivered with protective caps, which have to be removed before mounting into
the flow cell.
