7.2 Dimensions and weights
Weight for compact housing: approx. 150 g / 0.33 lbs
Weight field housing: approx. 600 g / 1.32 lbs
Hygienic process connections

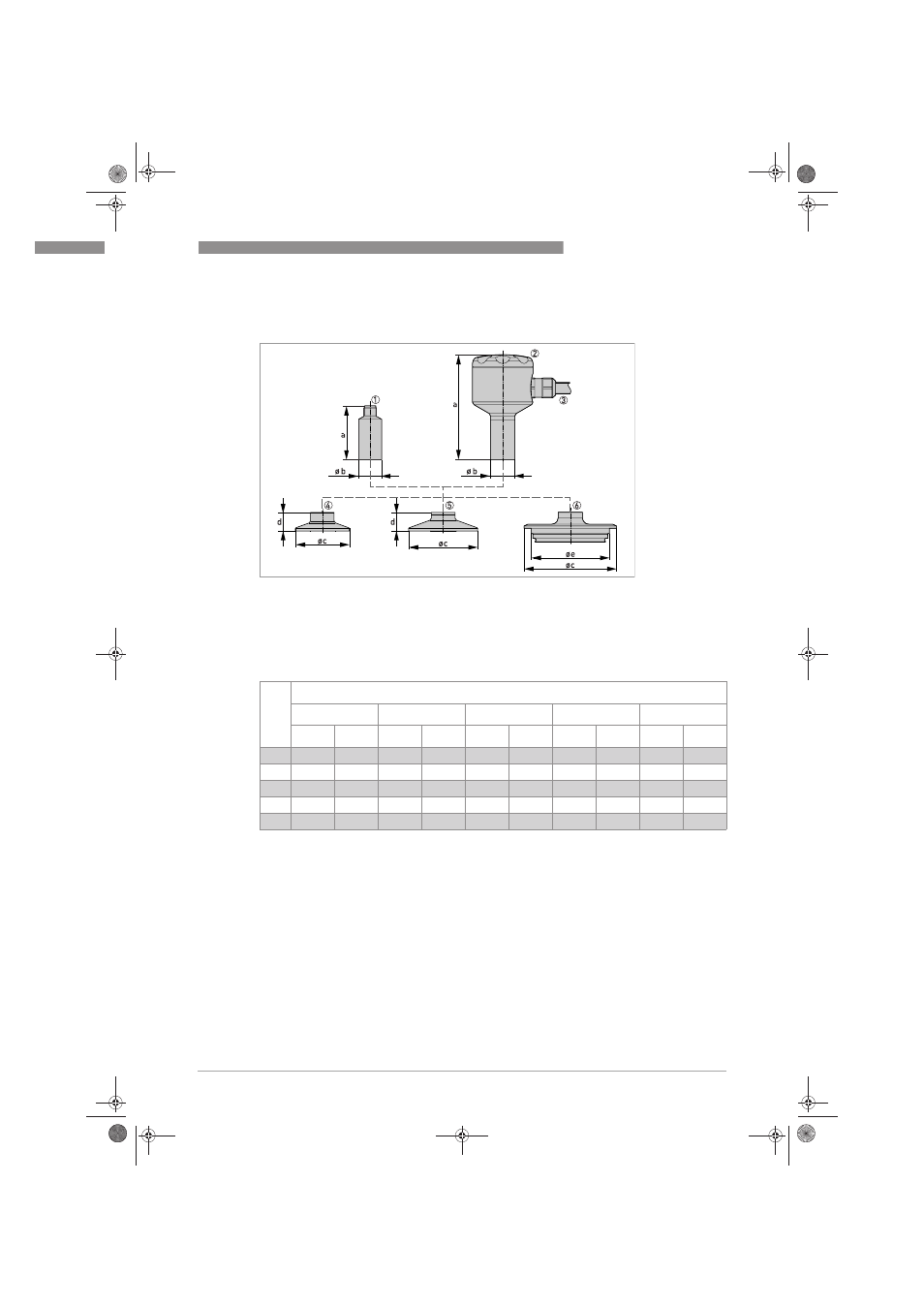

Figure 7-1: Dimensions for pressure transmitter with hygienic connections
1 Compact housing with M12 plug
2 Field housing with M16 cable feedthroughs
3 Max. cable diameter: Ø8...10 mm / Ø0.3...0.4"
4 DN38 ISO 2852 / Tri-Clamp 1½", DN38 DIN 32676 clamp 3A
5 DN51 ISO 2852 / DIN 32676 clamp 3A
6 GEA Tuchenhagen type N connection
Dimensions
1 2 4 5 6
[mm] ["] [mm] ["] [mm] ["] [mm] ["] [mm] ["]
a 51.6 2 94.5 3.7 - - - - - -
b Ш22 Ш0.9 Ш22 Ш0.9 - - - - - -
c - - - - Ш50.5 Ш2 Ш64 Ш2.5 Ш84 Ш3.3
d - - - - 17.3 0.7 17.3 0.7 - -
e - - - - - - - - Ш68 Ш2.7
