1.3 Electrical connections
1.3.1 Potential earth (PE): measuring chamber
Connect an electrical cable with a metallic shield to the PE. The PE is installed at the bottom of
the measuring chamber, on the side of the device nameplate.
1.4 Start-up
Do a start-up check:
• Are the wetted components (gasket, chamber and float) resistant to corrosion by the tank
product?
• Does the information given on the nameplate agree with the application?
• Did you connect the equipotential bonding system correctly?

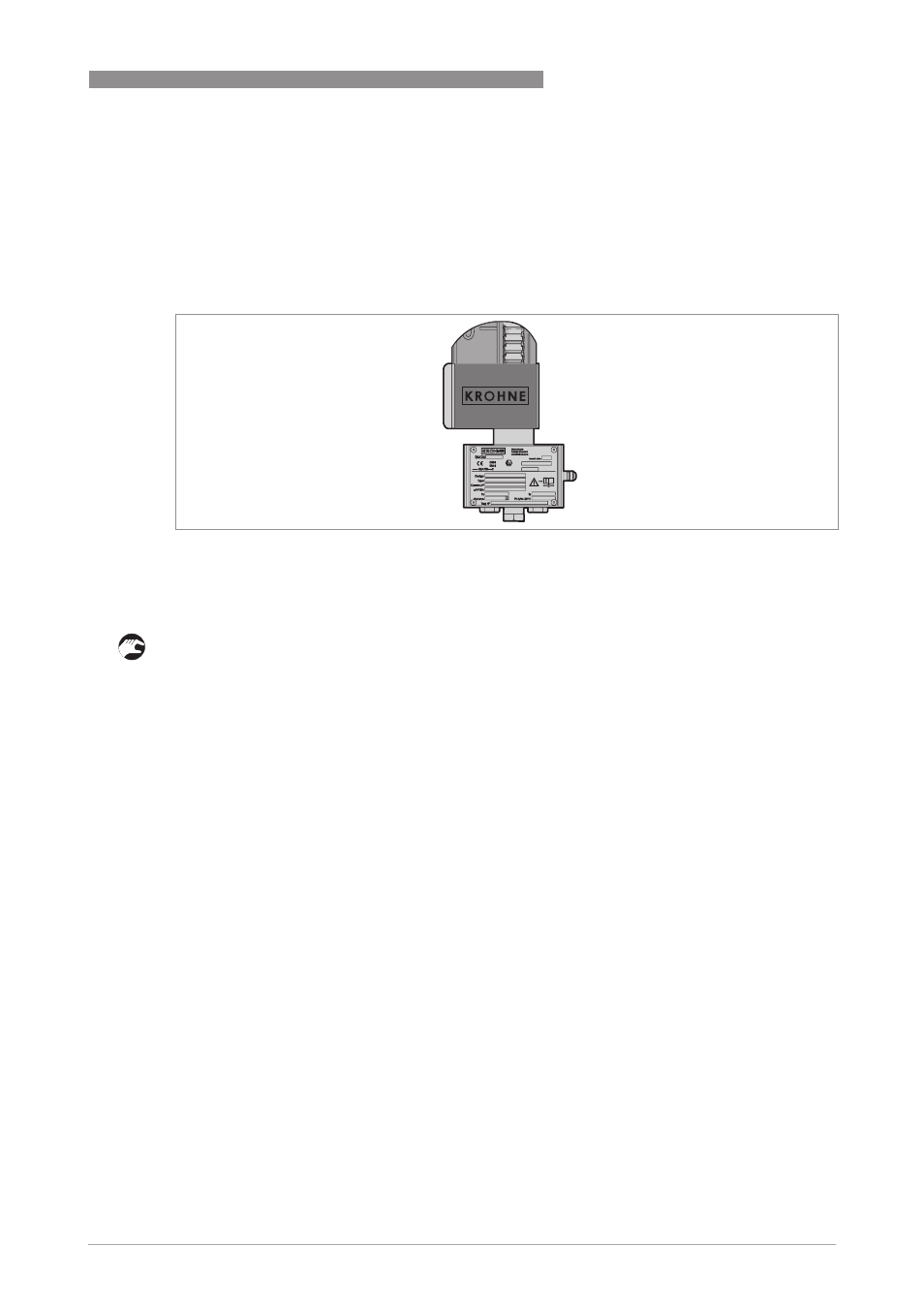

Figure 1-3: Potential Earth (PE)
1 PE terminal
