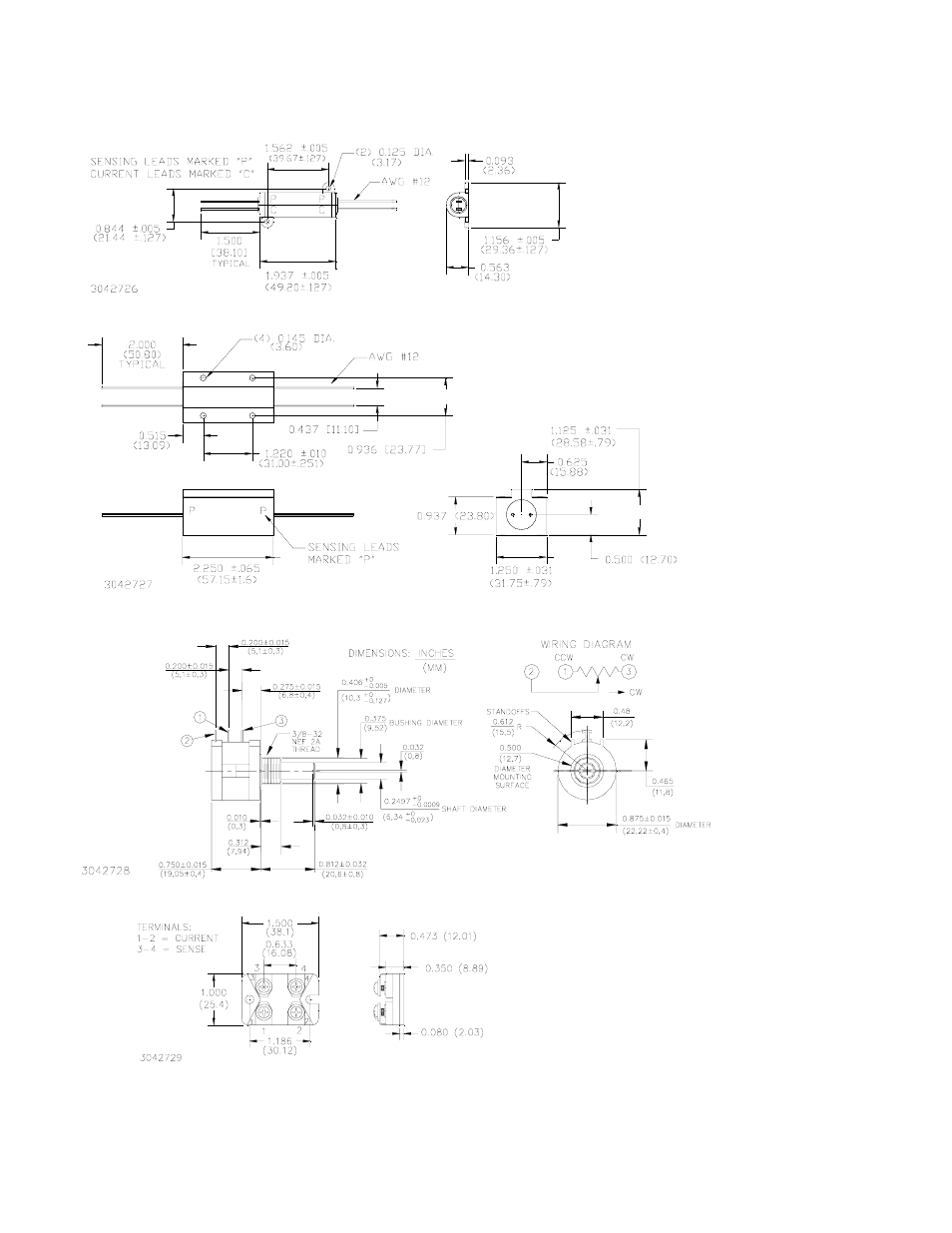

FIGURE 4. MECHANICAL OUTLINE DIMENSIONS
D. TYPICAL 30W RESISTOR (SCREWS)
MOUNTING HARDWARE
SCREW, 6-32 X 1/2 BR. BHPH (KEPCO P/N 101-0071)
WASHER, #6, INT LOCK, ST (KEPCO P/N 103-0015)
NUT, HEX, 6-32 X 1/4 ACF, ST., (KEPCO P/N 102-0004)
WIRING HARDWARE (SUPPLIED)
SCREW, M4 X 8MM, SS. PHPH (KEPCO P/N 101-0463)
WASHER, #6, FLAT LOCK, ST (KEPCO P/N 103-0028)
NUT, HEX, 6-32 X 1/4 ACF, ST., (KEPCO P/N 102-0004)
C. KT 1304 CURRENT CONTROL RHEOSTAT
A. TYPICAL 50W RESISTOR (LEADS)
B. TYPICAL 100W RESISTOR (LEADS)
MOUNTING HARDWARE
SCREW, 4-40 X 1-1/4 ST. BHSL (KEPCO P/N 101-0089)
WASHER, #4, FLAT LOCK, ST (KEPCO P/N 103-0063)
NUT, HEX, 4-40 X 1/4 ACF, ST., (KEPCO P/N 102-0003)
NOTE: Dimensions shown in parentheses are in millimeters.
MOUNTING HARDWARE
SCREW, 4-40 X 3/8 ST. BHPH (KEPCO P/N 101-0461)
WASHER, #4, FLAT LOCK, ST (KEPCO P/N 103-0063)
NUT, HEX, 4-40 X 1/4 ACF, ST., (KEPCO P/N 102-0003)
