Step 4. Remove the knurled nuts and lockwashers securing the BIT 4886 Card to hex spacers and
remove BIT 4886 Card by sliding to front of BOP, then rotating away from A1.

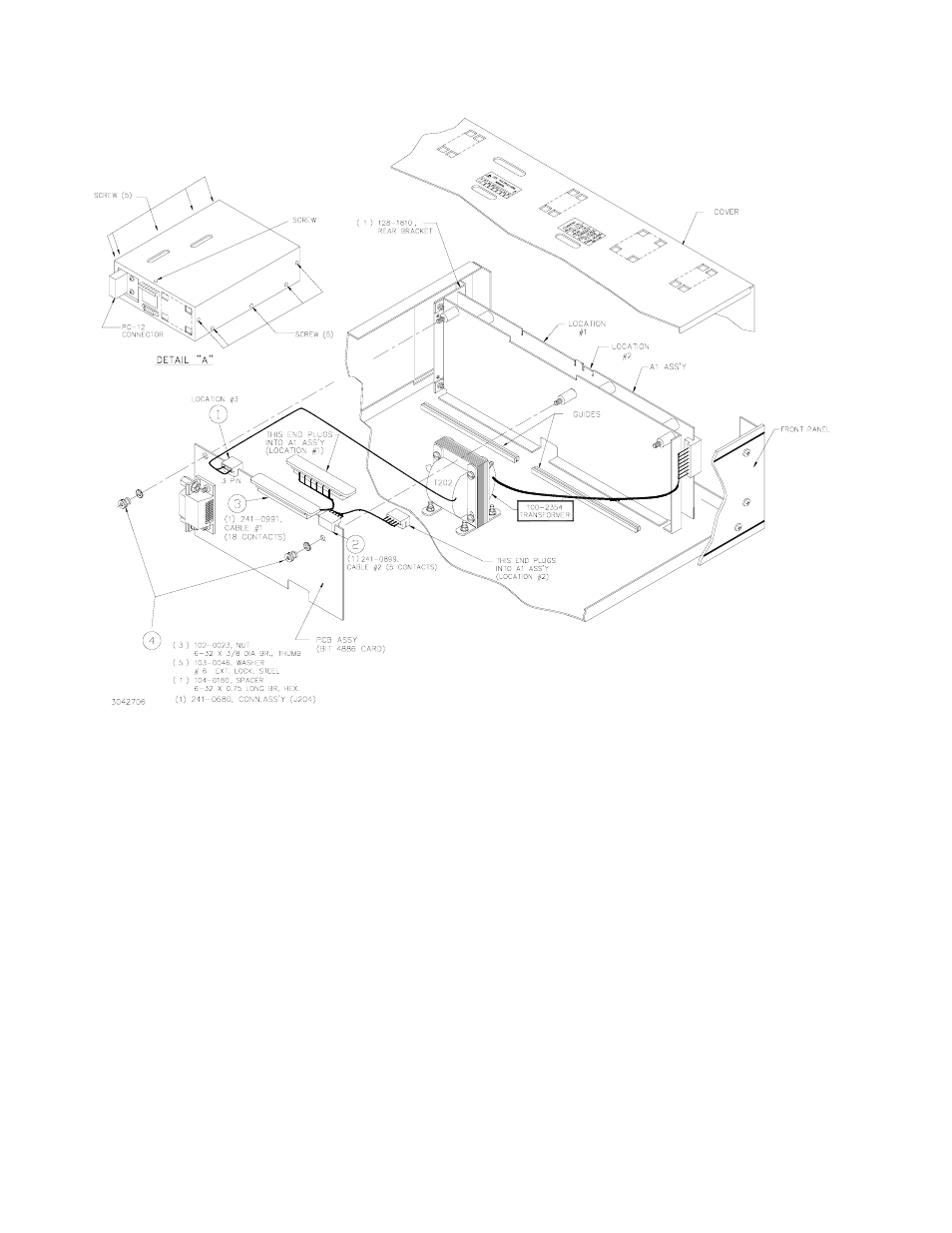

FIGURE 1. BIT CARD REMOVAL
4. A brown IC socket located towards the rear of the unit contains the PROM. Locate the small depression
or notch in the PROM as shown in Figure 2. This is pin 1 of the PROM.
CAUTION: FAILURE TO USE AN ESD WRIST STRAP MAY DAMAGE THE PROM!
5. Connect the wrist strap to the chassis of the BOP. Place the strap on your wrist as indicated by the
instructions for the wrist strap.
6. Touch the IC tube to the chassis of the BOP. Open one end.
7. Use the extractor and insert the hook, first into one slot and then the other, and gently pry out the PROM.
Place the PROM in the tube and close the tube.
