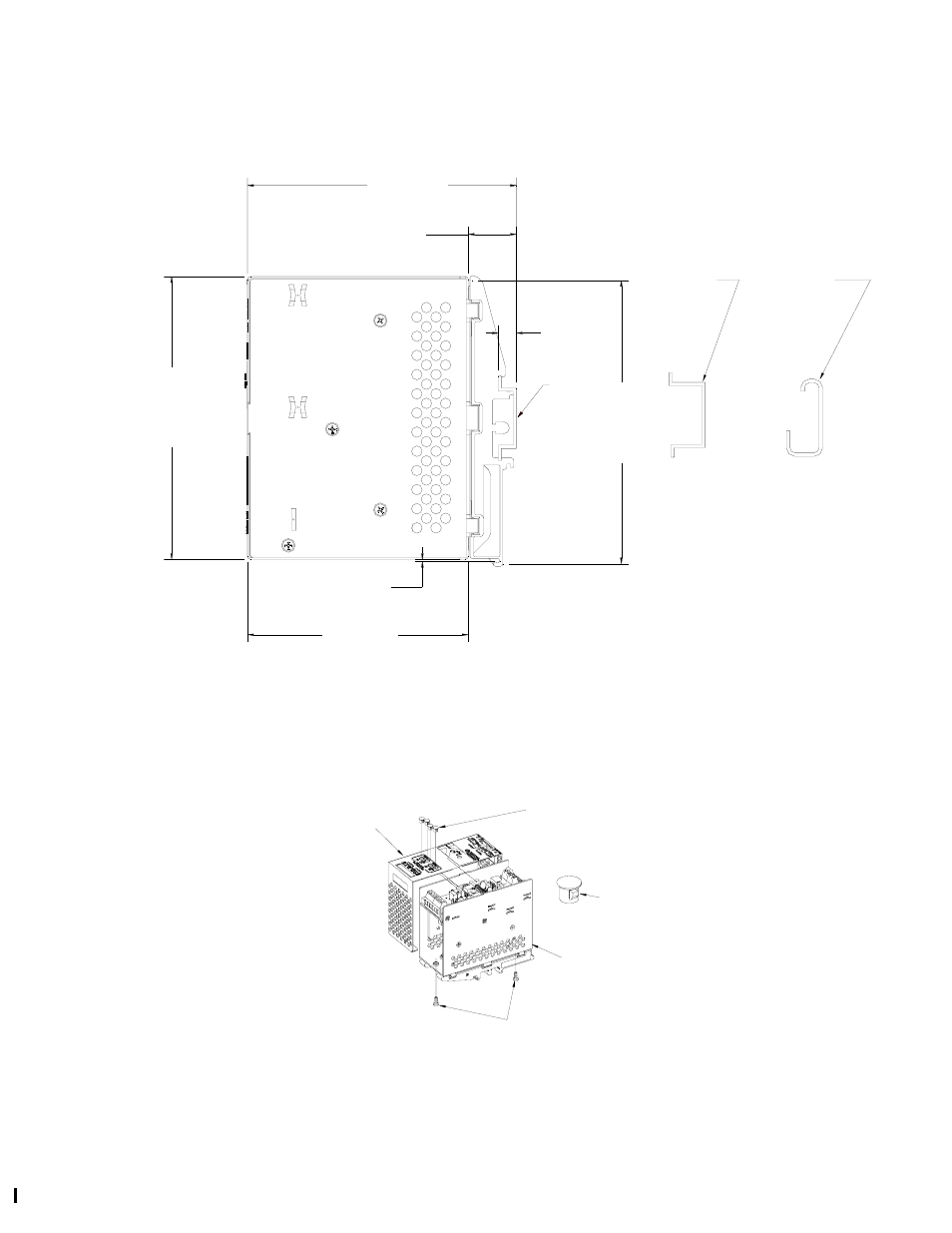

FIGURE 6. KDA 24 SERIES OUTLINE DIMENSIONS
FIGURE 7. SECURING ALARM ADJUSTMENTS
DIN RAIL
NS35/15 "G" DIN
RAIL NS32
DIN RAIL
NS35/7,5
4.38
[111.4 mm]
3.60
[91.4 mm]
0.03 [0.8 mm]
4.61
[117.1 mm]
0.78 [19.9 mm]
0.30
[7.5 mm]
4.62
[117.4 mm]
3010306
PLUG ( QTY 4)
P/N 108-0473
SCREW (QTY 2)
P/N 101-0092
(BHPH, 4-40 x 0.312 ST NA)
PLUG
DETAIL
PRESS
TO
RELEASE
3043531
KDA COVER
NOTE: TO REMOVE PLUG, REMOVE TWO SCREWS AND
SLIDE KDA COVER OFF CHASSIS. THEN RELEASE
PLUG PRONGS WHILE PUSHING PLUG OUT.
KDA CHASSIS
