• VDC ON/ALARM indicator. Lights green when unit is oper-
ating. When enabled by DIP switch configuration, lights
red to indicate loss of output voltage in parallel configu-
ration only (see PAR. 3.7.1).
• V.ADJ Output voltage adjustment trimmer: Adjusts out-
put voltage within limits specified in Table 2 (see PAR.
3.4.1). Not functional if remote output control is enabled
(see PAR. 3.4.2).
• TEST POINT (+, –): Connect to voltmeter to monitor d-c
output voltage.
• OUTPUT RESET switch. Used to recycle power in the
event of an alarm condition (see PAR. 3.6). Not func-
tional when remote on/off control is enabled (see PAR.
3.5).
• POWER ON/OFF switch. Applies power to the unit. CAU-
TION: Power must be OFF before unit is removed
from the rack adapter.
• Retaining Latches (2). Prevents inadvertent removal of
unit from rack adapter (see PAR. 3.9).
• AM Models only: Voltage/Current meter: Monitors out-
put voltage or current according to setting of Meter Mode
switch. NOTE: Use remote sensing for voltmeter to dis-
play voltage at the load.
• AM Models only: Meter Mode slide switch: Set to V for
display to show output voltage, set to A to show output
current.
• AM Models only: V indicator: Lights green to indicate
meter is showing Volts.
• AM Models only: A indicator: Lights amber to indicate
meter is showing Amperes.

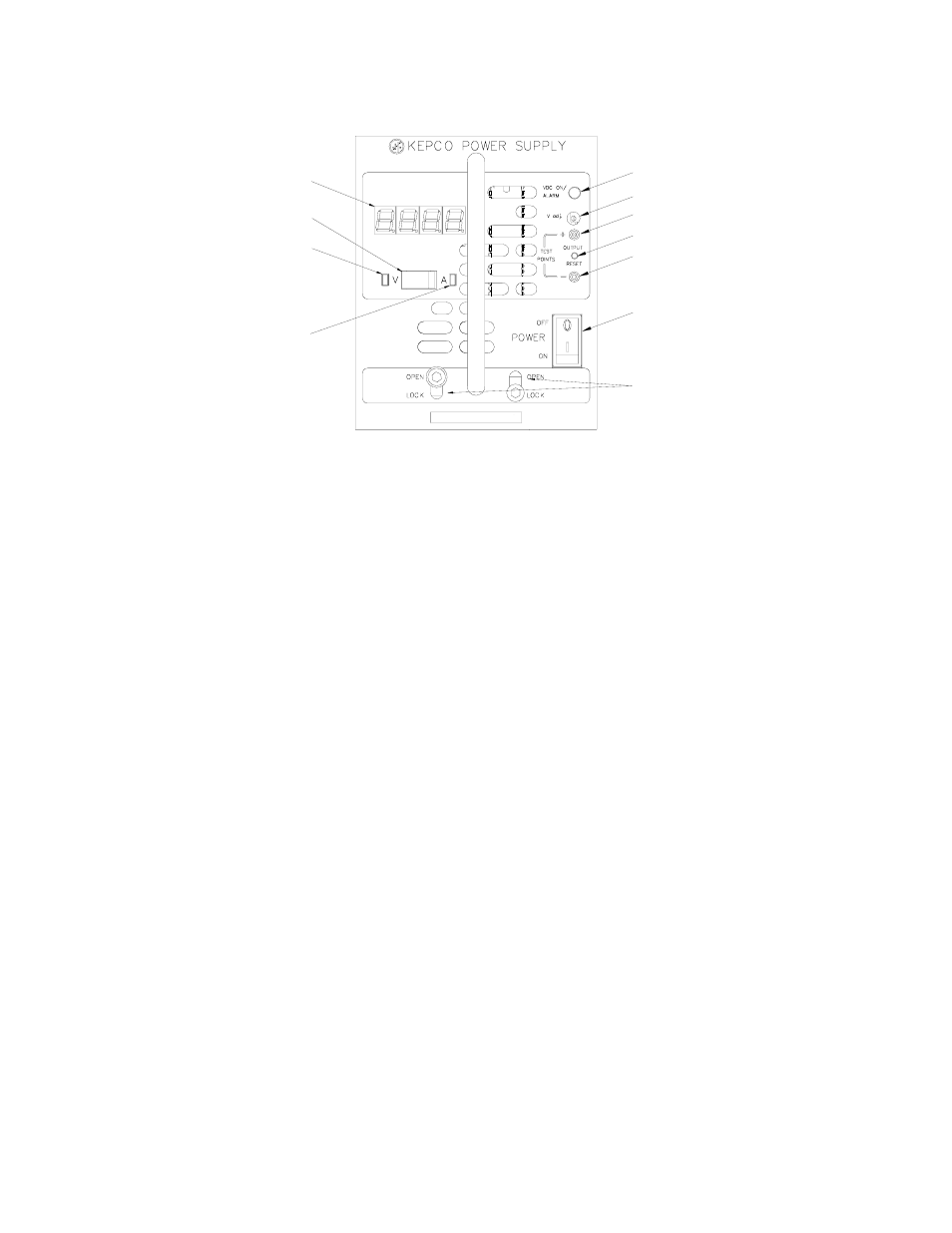

FIGURE 5. FRONT PANEL CONTROLS, INDICATORS AND TEST POINTS (HSF AM, TYPICAL)
3043129
Retaining Latches
POWER ON/OFF switch
OUTPUT RESET switch
TEST POINT (-)
TEST POINT (+)
V. ADJ Output Voltage Adjustment Trimmer
VDC ON/ALARM Indicator
Voltage/Current Meter
Meter Mode switch
V (Voltage) indicator
A (Amperes) indicator
