3
pressed. Therefore from 0A to 9A, the MSD shows units
of Amps. From 10A to 99A the MSD shows 10A per
digit. Clicks can be set to a maximum of 10A/click. The
adjustment is continuously variable up to the maximum
value for the selected mode. Choosing a less significant
digit increases the number of turns x 10 per digit.

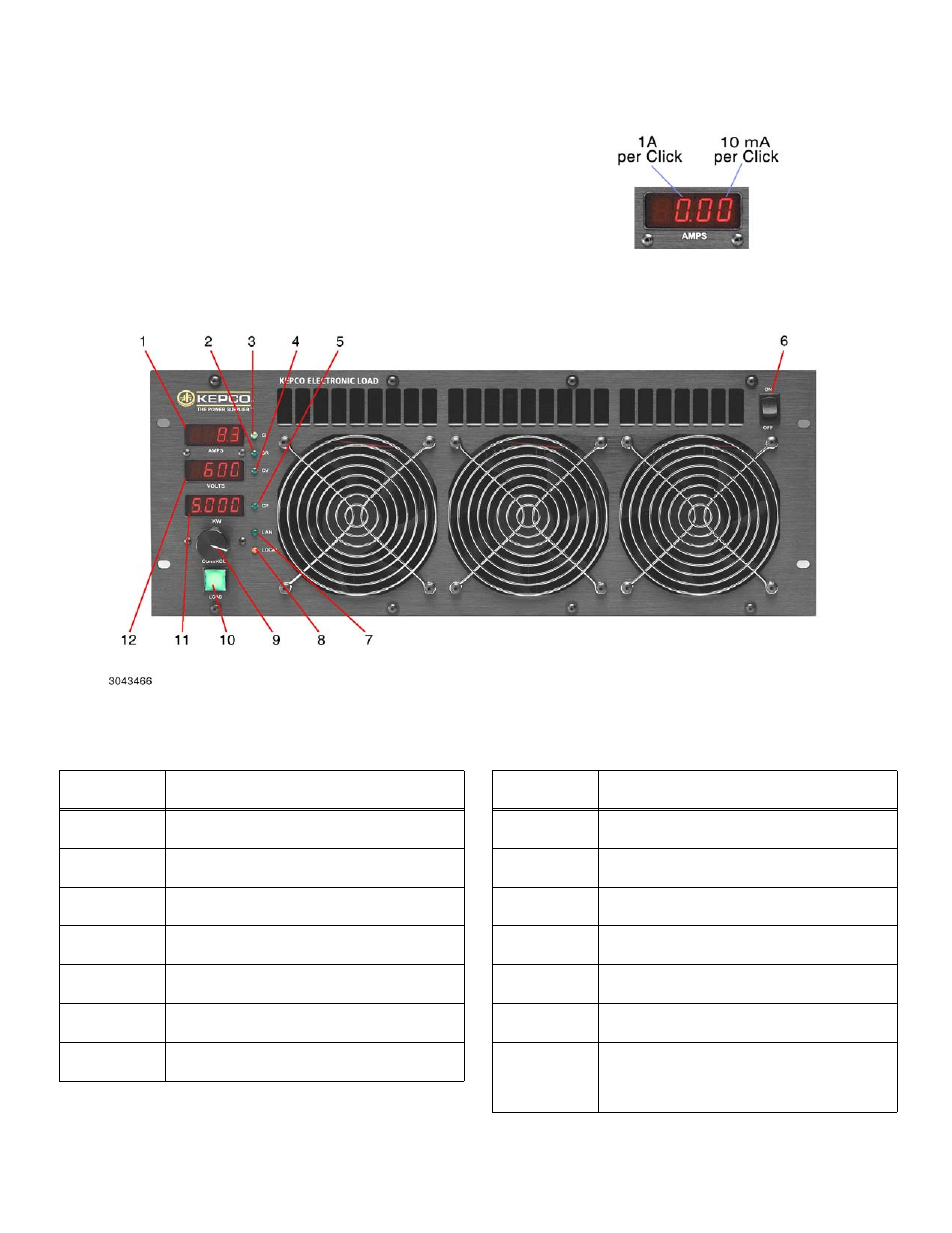

FIGURE 1. ADJUSTING RESOLUTION
FIGURE 2. FRONT PANEL CONTROLS AND INDICATORS
TABLE 2. MODE SELECTION
MODE
INDICATOR
MODE SELECTED
Only CI on
(solid)
CI (Constant Current) mode.
Only CR on
(solid
CR (Resistance) mode.
Only CR on
(blinking)
CS (Conductance) mode.
Only CV on
(solid)
CV (Voltage) mode.
Only CP on
(solid)
CP (Constant Power) mode.
CI, CR, CV and
CP all blinking
Short mode (lowest resistance possible), maximum
current. USE CAUTION prior to setting,
CI, CR, CV and
CP all off
Modes off: Load will not engage, no setpoints are
active and load will not conduct current.
TABLE 3. LOCAL ADJUSTMENTS
MODE
INDICATOR
SETPOINT ADJUSTMENT
when LOAD switch shows green
Only CI on
(solid)
CONTROL sets constant current level in Amperes
as viewed on AMPS display.
Only CR on
(solid
CONTROL sets resistance in Ohms as viewed on
KW display.
Only CR on
(blinking)
CONTROL sets conductance in Siemens (I/E, I in
Amps, E in Volts) as viewed on KW display.
Only CV on
(solid)
CONTROL sets voltage in Volts as viewed on
VOLTS display.
Only CP on
(solid)
CONTROL sets constant power level in kilowatts as
viewed on KW display.
CI, CR, CV and
CP all blinking
Short mode; no adjustment. USE CAUTION prior to
setting.
CI, CR, CV and
CP all off
Modes off; no adjustment. Pressing LOAD switch
causes indicator to blink green, then CONTROL
used to view model, serial number, IP information,
etc.
