Acer 510 User Manual
Page 78
70
Removal and Replacement

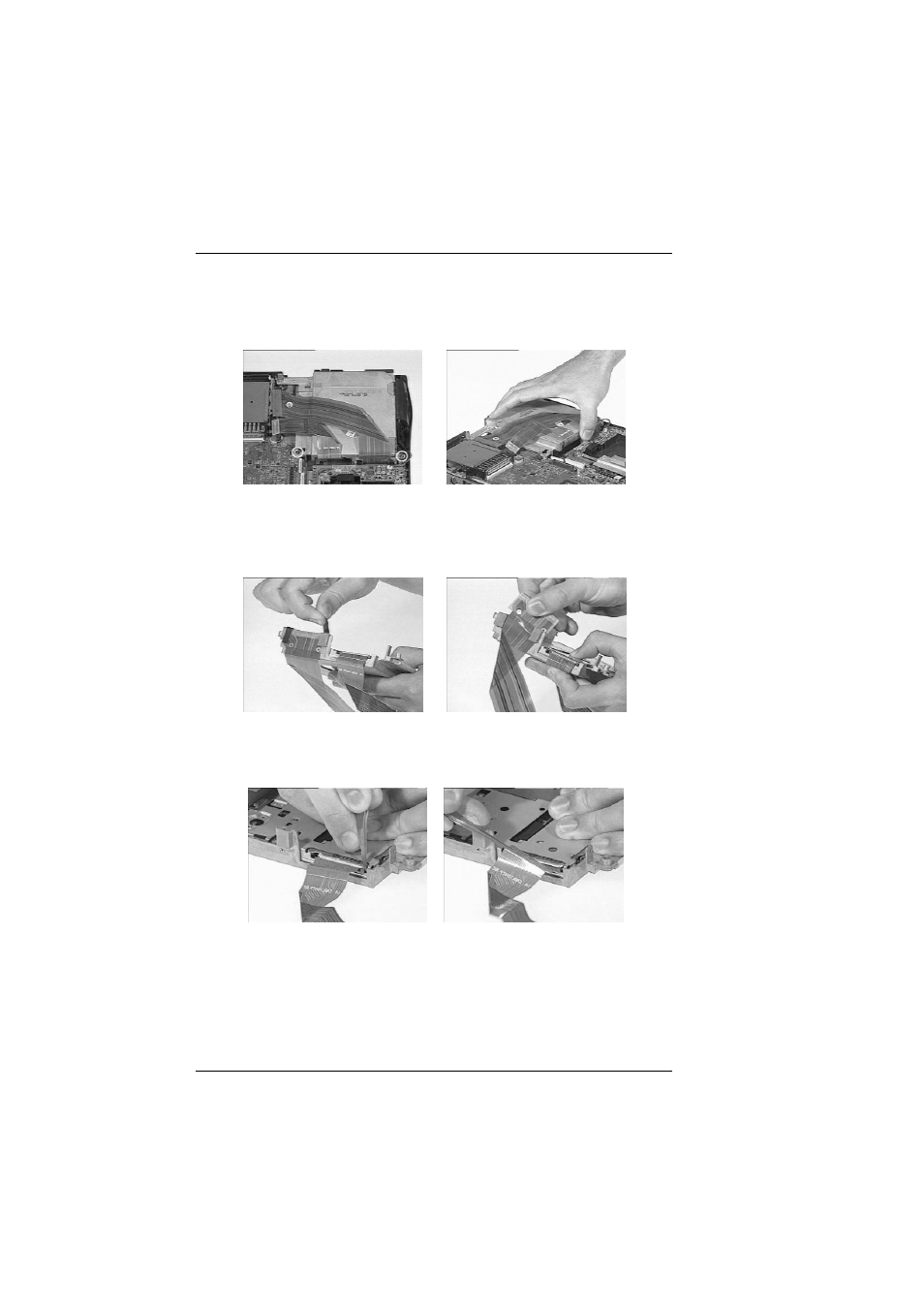

3. Remove the two screws from the CD-ROM and diskette drive module.
4. Gently, pull out the CD-ROM and diskette drive module from the lower
case.
5. Peel the tape off.
6. Release the CD-ROM cable from the CD-ROM and diskette drive module.
7. Disconnect the floppy drive cable from the floppy drive.
