Removing the touchpad – Acer 510 User Manual
Page 74
66

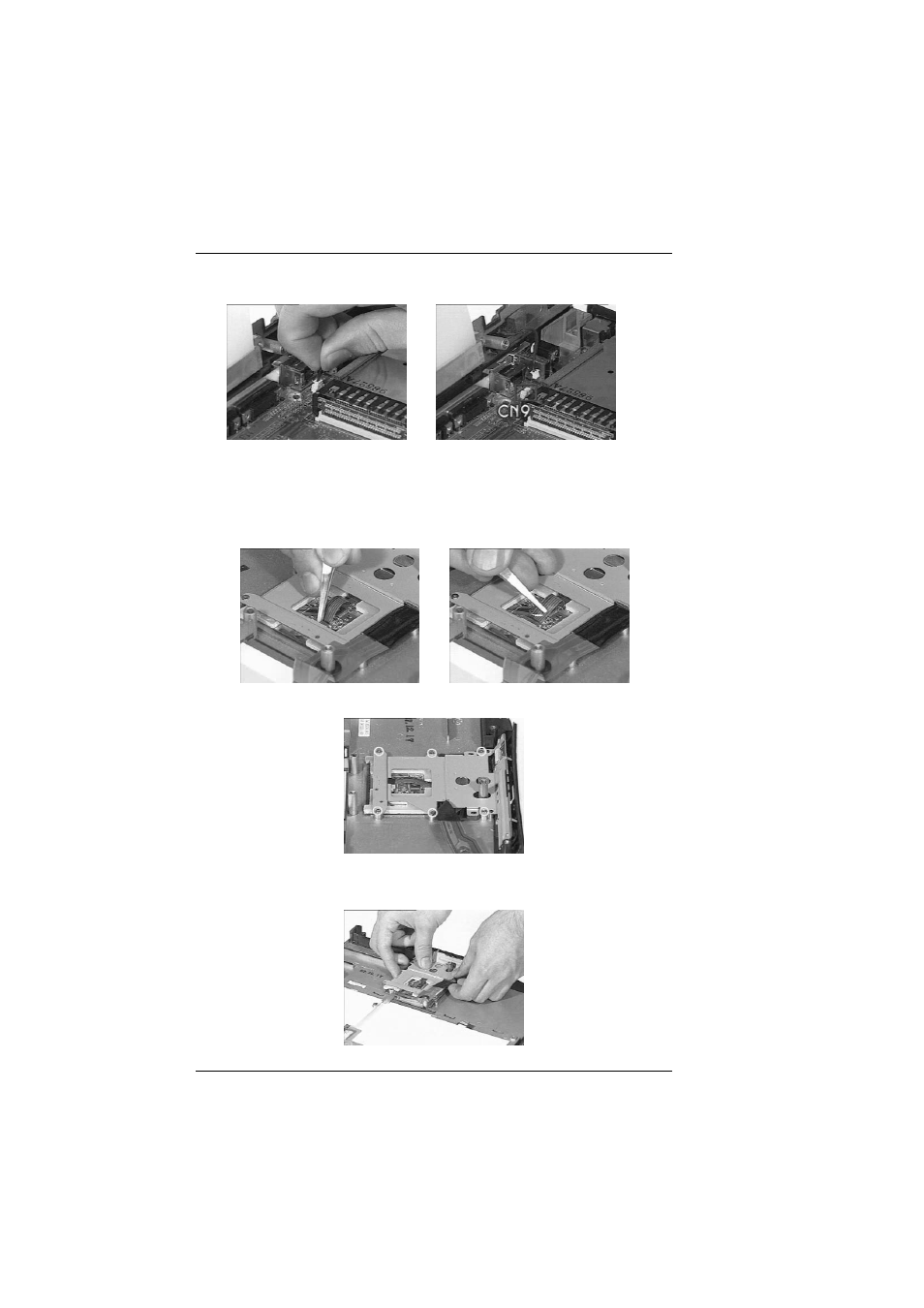

Removal and Replacement
4. Disconnect the LCD cover switch from the system board at CN9, then
remove the upper case.
Removing the Touchpad
1. Disconnect the touchpad cable from the touchpad. .
2. Remove the 6 screws of the touchpad bracket.
3. Lift the touchpad bracket together with the touchpad cable and CD-ROM
control board assembly away from the upper case.
