Acer 510 User Manual
Page 70
62
Removal and Replacement

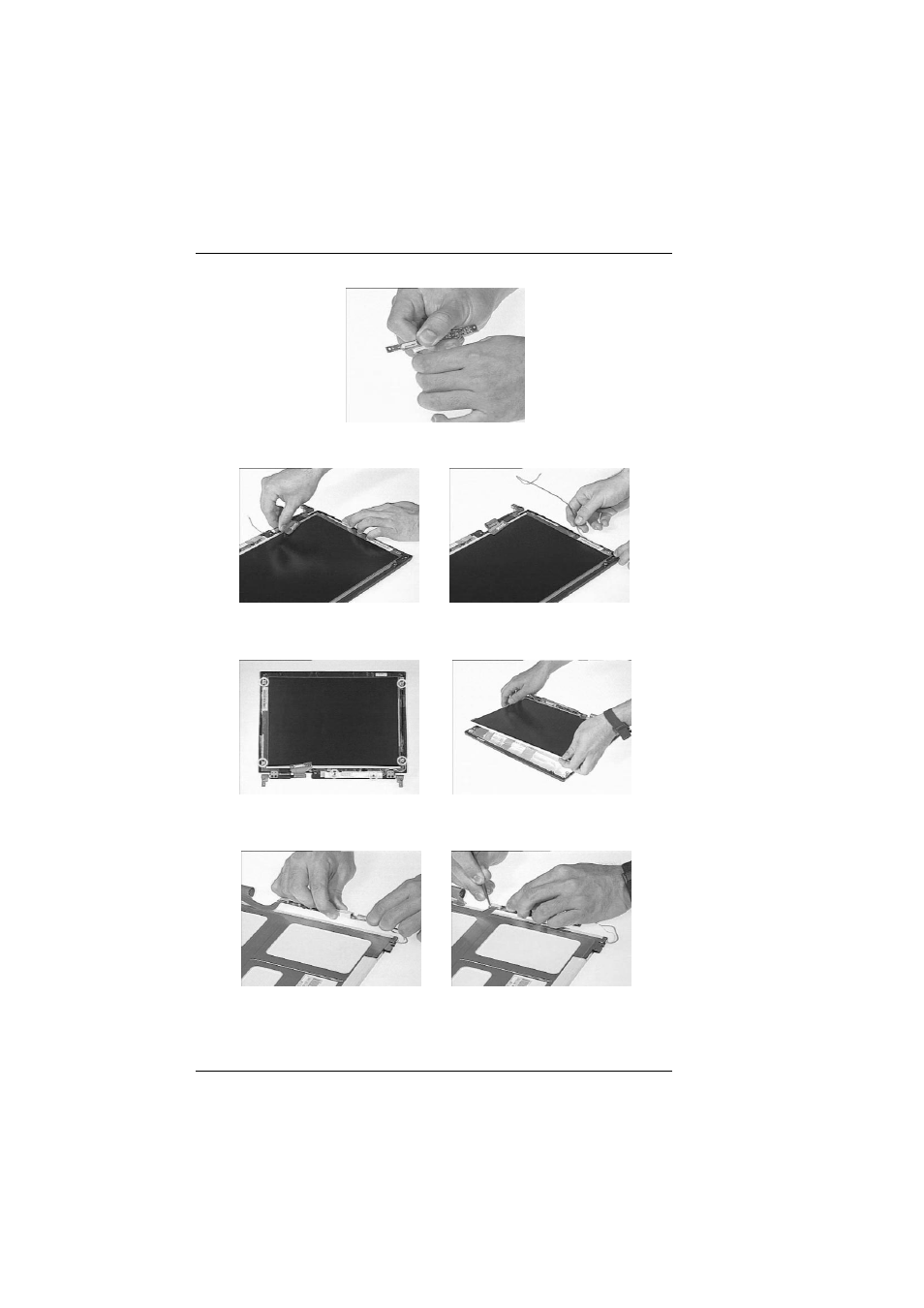

5. Disconnect the LED cable from the LED board.
6. Carefully remove the internal microphone cable from the LCD panel.
7. Remove the six screws as shown below to separate the LCD and the LCD
inverter board from the display panel.
8. To remove the LCD inverter board, disconnect the LCD power cable and
LCD FPC cable from the inverter board. .
