Page 38
5. Data Output
32
5.2 Digital Output (RS-232C)

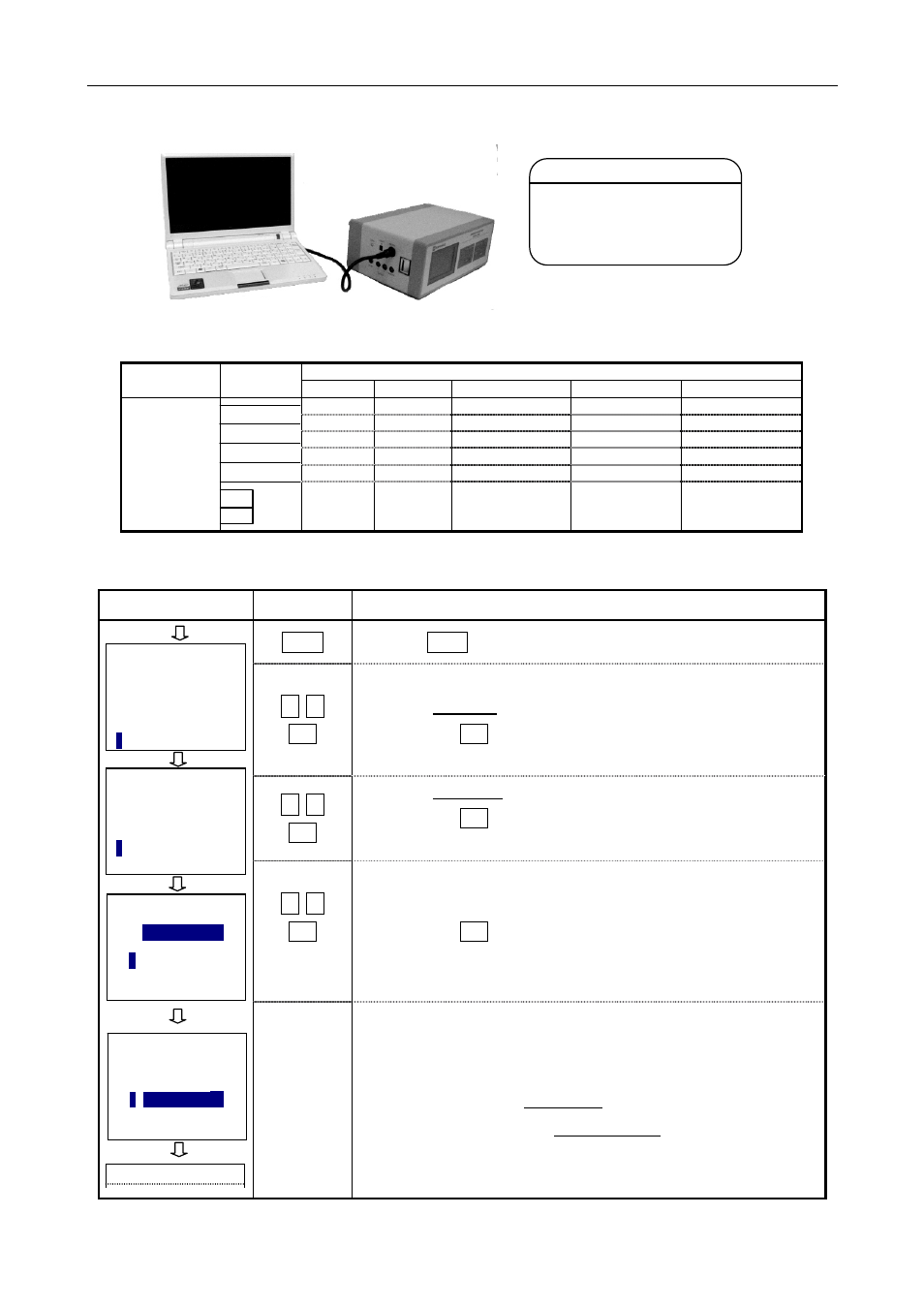

5.2.1 Connection Example
Anemomaster (MODEL 6162)
Signal Name
Wire
Connection
Pin No. Signal Name
Signal Meaning
Signal Direction
Signal Line Color
GND
1
GND
Signal Ground
- - -
Brown
TXD
2 RXD
Received
Data
Input
Red
RXD
3 TXD
Transmit
Data
Output
Orange
RTS
4 CTS
Clear
To
Send
Input
Yellow
CTS
5 RTS
Request
To Send
Output
Blue
DSR
DCD
DTR
5.2.2 Baud Rate Setting
Display Key
Procedure
MENU
(1) Press MENU key.
△
, ▽
SET
(2) Select 5. UTILITY.
Then press SET key.
△
, ▽
SET
(3) Select 4. RS-232C.
Then press SET key.
△
, ▽
SET
(4) Select baud rate.
Then press SET key.
(5) The selected baud rate will be highlighted, and the screen will
automatically display menu screen.
★
To transfer raw data: 1. MONITOR
To transfer memory data: 3. DATA OUTPUT
Output Format
Baud Rate:
4800, 1200
Word Length:
8 bit
Parity Bit:
None
Stop Bit:
1 bit
< MENU >
1.MONITOR
2.MEASUREMENT
3.DATA OUTPUT
4.MEMORY CLEAR
5
.UTILITY
< UTILITY >
1.CALENDAR
2.ANALOG OUTPUT
3.PROGRAM SET
4
.RS-232C
< RS ‒ 232C >
1. 1200 bps
2
.
4800 bps
< RS ‒ 232C >
1.
1200 bps
2
. 4800 bps
< MENU >
