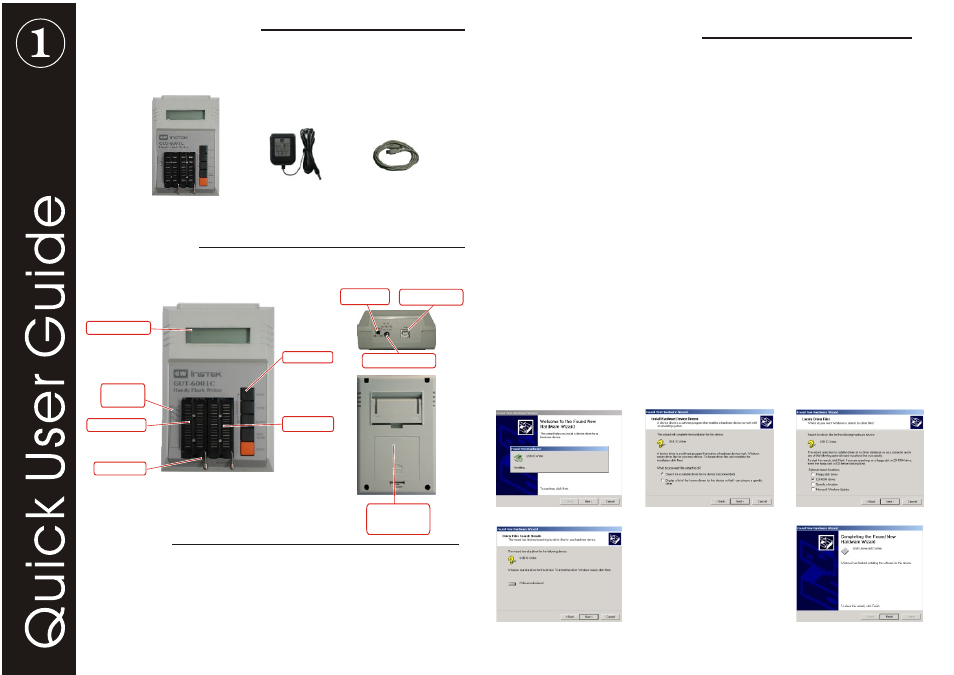

Standard Accessories
Unit back view
Attention
DC 12V input socket
Power switch USB port (B type)
16X2 LCD display
Textool handle
Function keys
IC package
diagram
Master Textool Slave Textool
GUT-6001C Flash Writer main unit x1, USB cable x1,
DC 12V/500mA adaptor x1, PC Software, drivers and manuals on CD-ROM x1
Introduction
Main unit
USB cable Adaptor
Unit top view
1. It is preferred to use an internal USB port of your PC. External USB
ports are not recommended because of shared bandwidth and
possible compatibility issues of other USB devices.
2. In PC mode operation, the Slave textool is used for all operations.
In stand-alone mode, the source IC should be placed in the Master
textool and the target IC in the Slave textool.
Battery
compartment
Install software and driver
1. Set Font Size to [small fonts] (96 dpi) to have the optimal display.
1.1 Click the right button on the desktop. -> Select the [Properties] at the
bottom of the function menu.
1.2 Select [Settings] and then click the [Advanced] to set Font Size.
2. Install the software before connecting the GUT-6001C to the PC.
2.1 Insert the software CD into your CD-ROM drive. Normally the installation
program will start automatically (if Auto Run is enabled for your CD-drive).
Follow the instructions to complete installation.
2.2 If Auto Run doesn't work, click [Setup.exe] in the CD directory to start the
installation.
3. Install the driver for the GUT-6001C hardware.
3.1 Make sure the GUT-6001C power is [OFF]. Connect the power adapter to
the GUT-6001C and a power outlet.
3.2 Connect the USB cable to PC USB port and to the programmer USB port.
3.3 Turn the GUT-6001C power to [ON]. Windows will now start the [Found
New Hardware Wizard].
3.4 Install Hardware Device Driver
-> Search for a suitable driver for my device (recommended)
3.5 Select Optional search locations
-> CD-ROM drives
3.6 Driver Files Search Result
-> Windows will find a driver for this device ...\driver\flashwriter.inf
3.7 Click [Finish] in the Found New Hardware Wizard
The GUT-6001C software and drivers have now been installed and the unit is
ready for usage.
[3.3] [3.4] [3.5]
[3.7] [3.6]
