Appendix B: Sensiscan 2000 Connecting the APS-6RF to an MPS-24AF
20
APS-6RF Instruction PN 50893:B 7/20/00
Connecting the APS-6RF to an MPS-24AF
Make the following connections as shown in the figure below.
• Connect primary power from TB1 to MPS-24AF terminal block
TB1, Pin 5( NEUT ) and Pin 7( HOT )
• Connect secondary power from TB3 to MPS-24AF terminal block
TB2, Pin 1(+) and Pin 2(–)
• Connect trouble input from J3 to MPS-24AF terminal block P5

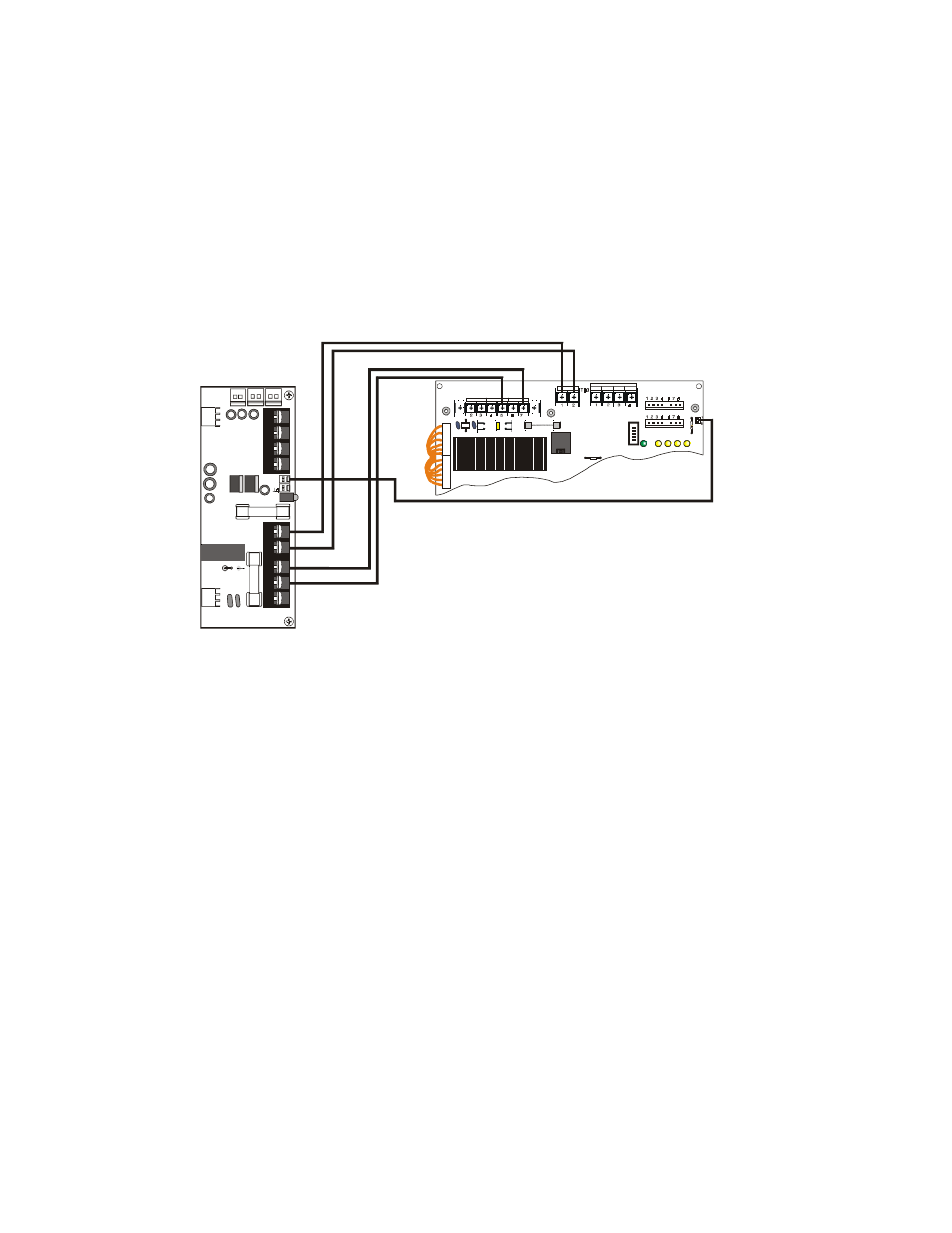

Figure 12 Wiring to MPS-24AF
