APS-6RF Instruction PN 50893:B 7/20/00
17
Appendix A: Sensiscan 200
Mounting in a CAB-200 Backbox
The Auxiliary Power Supply is mounted as shown in the figure below.
To mount the APS-6RF, follow these instructions:

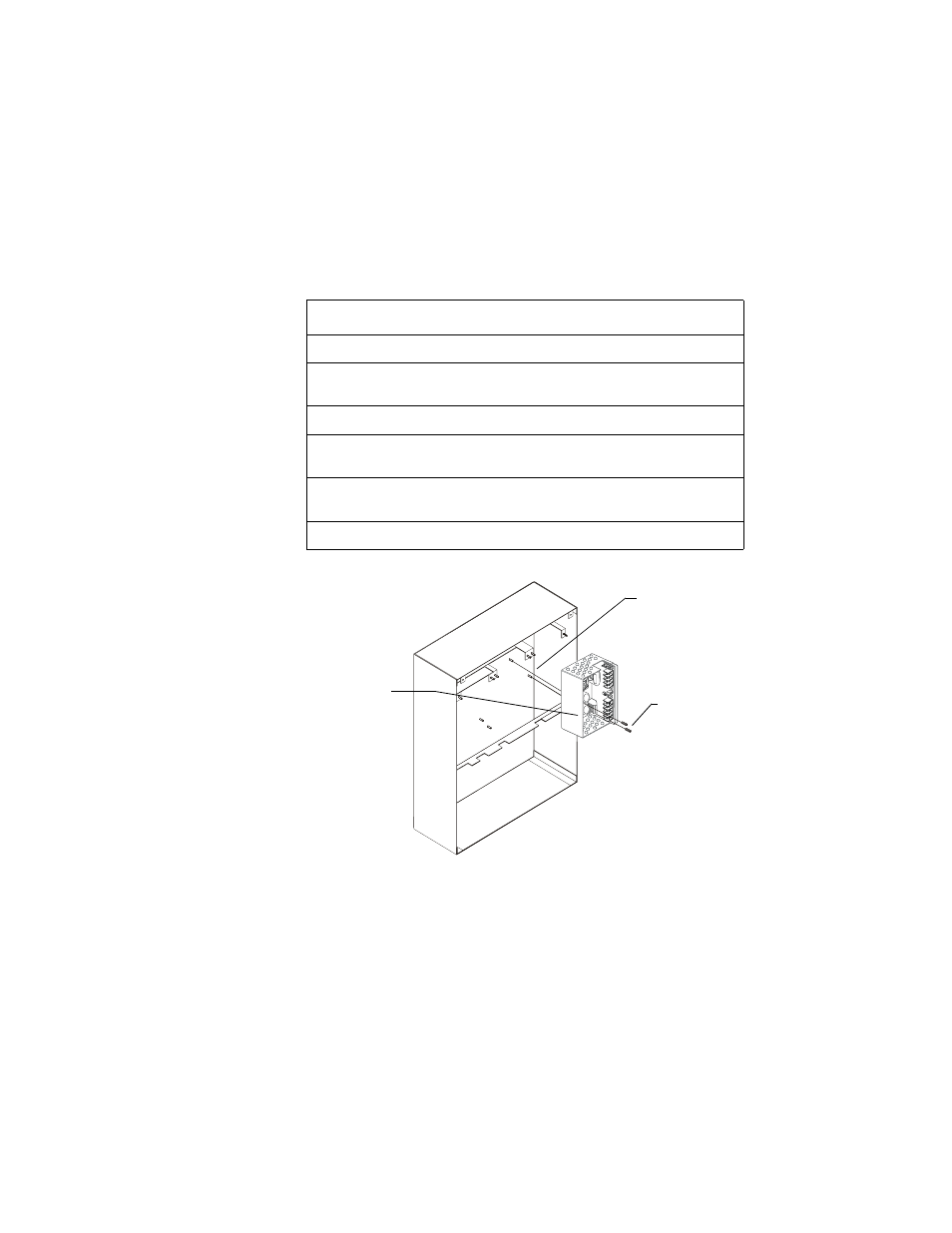

Figure 9 Mounting an APS-6RF to a CAB-200 Backbox
Step Action
1 Remove plastic cover from APS-6RF.
2 If 240 VAC is to be used, cut JP1 jumper at this time. See "Configuring the
APS-6RF" on page 15.
3 Place the APS-6RF onto the mounting studs in the backbox.
4 Insert a standoff through each of the printed circuit board mounting holes,
threading each standoff to the mounting studs.
5 Tighten the standoffs until the APS-6RF is securely fastened to the
backbox.
6 Reinstall the plastic chassis cover.
Standoff
(2 places)
APS-6RF
Assembly
CAB-200
Backbox
Mounting
Studs
A
PS-
6
R
t
o
C
AB-
AA.
c
d
r
