STEP 6
Front and Back
Panel Assembly

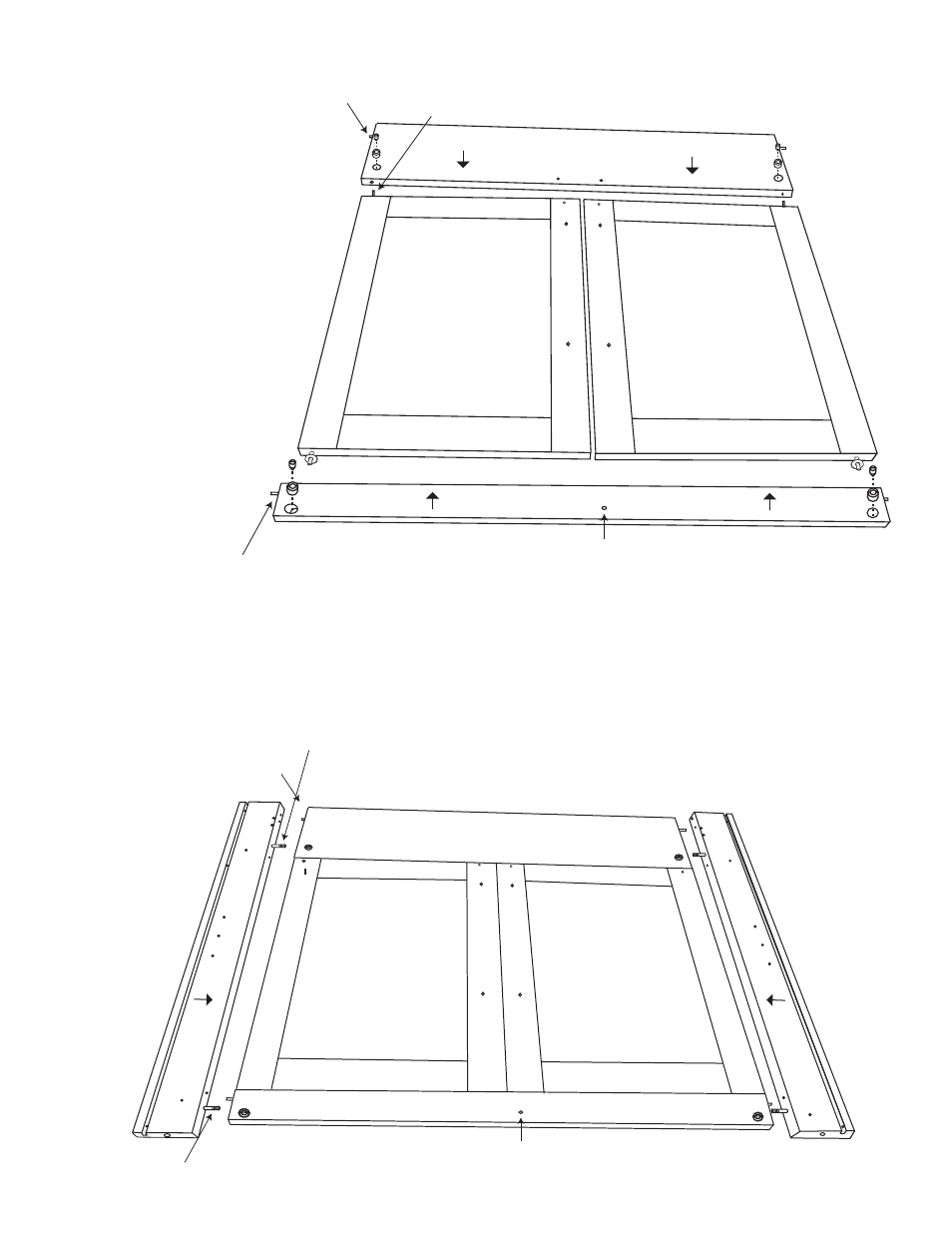

A. The Back Panel Assembly
consists of a Right and Left
Rear Legs, Top Back Brace,
Bottom Brace, a Left Door and
a Right Door. Insert 1 1/2 inch
Pins into the top and bottom
of the Right and Left Doors.
Be sure to add a Washer
over the Pins on the bot-
tom of the doors. Insert
the Bottom Door Pins into
the holes in the bottom
brace as illustrated. In-
sert the Pins in the top
of the doors into the
Top Back Brace
as illustrated.
Back Panel Assembly
Top Back Brace
Bottom Brace
3/4” Pin
Note pin hole in center
3/4” Pin
Make sure washer is on the door pin
1 1/2” Pin
A
A
A A
Back Panel Assembly
Top Back Brace
Bastion Post
3/4” Pin
Bastion Post
Left Back Leg
Right Back Leg
B B
Bottom Brace
Note pin hole in center
B. Fasten the Legs to the one side top/bottom, then the other side using the Bastion Posts and Pins
already inserted in steps 4 and 5. Insert Barrel Nuts into the Nut Access Holes and tighten down with
Set Screws.
C. Repeat the entire process for the Front Panel Assembly.
