STEP 10
Attach Front Assembly
2 Person Job!!

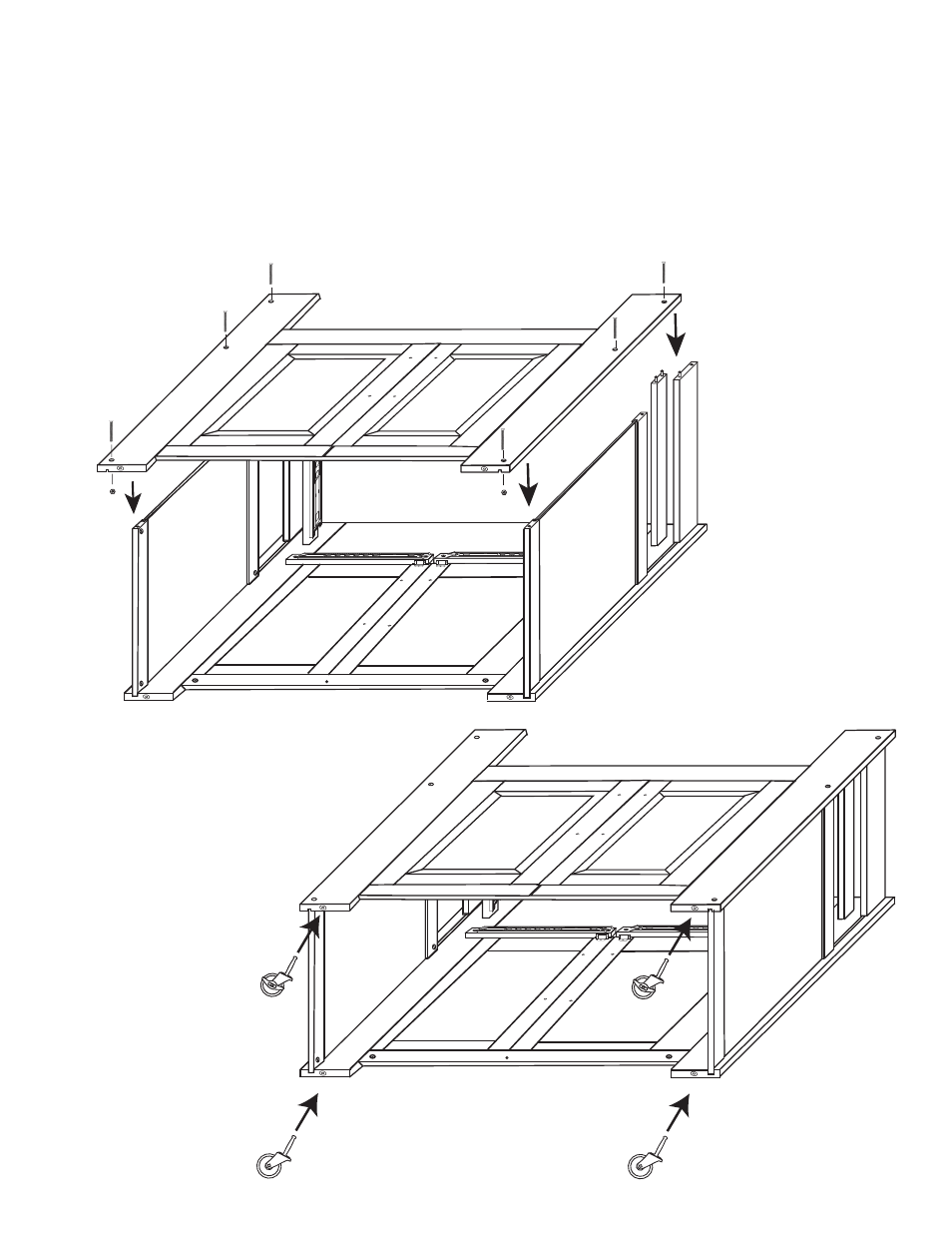

A. Attach the front assembly to the sides using Pins and 1 3/4” Machine Screws/Nuts.
B. Insert the castors into the caster sockets.
1 3/4
machine
screws
Illustration 10A
Illustration 10B
Tip: Don’t try to align all the pins
at the same time. Better to work
from one end toward the other.
i.e. insert Pins on right sides
lowering Front Assembly
and align Pins on left side
until all Pins are seated.
