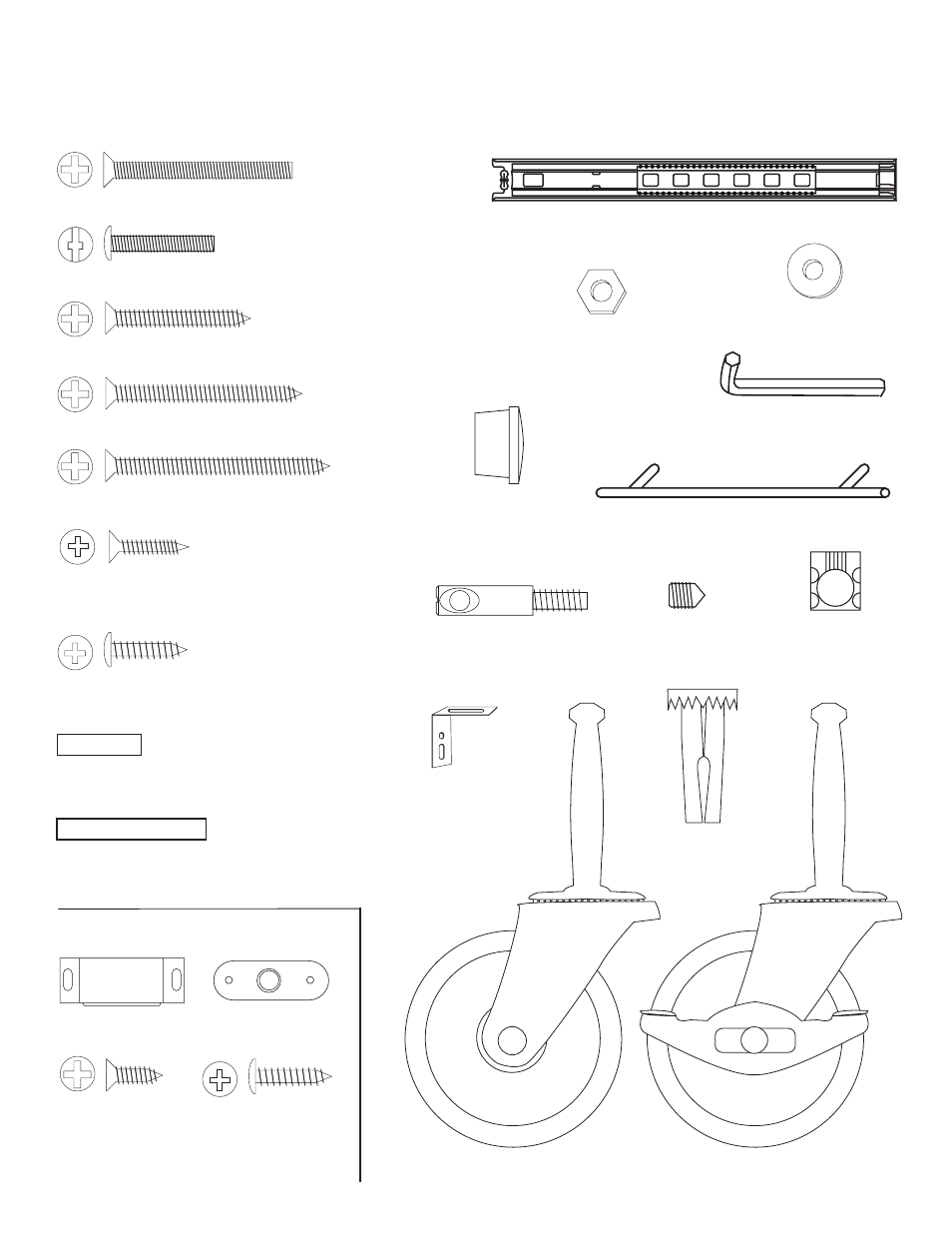

HARDWARE
1 3/4” Phillips Flat Head Bolt (12)
1 1/4” Phillips Flat Head #8 Screw (12)
3/4” Long 3/16” DIA. Steel Pin (20)
(Brace Ends and Glide Suports)
1 1/2” Long 3/16” DIA. Steel Pin (18)
(Shelf Supports and Doors)
Caster Socket (4)
5/8 Wooden
Disk (12)
1/2” Flat Washer (16)
10-24 Hex
Nut (12)
Bastion
Set Screw (10) Bastion Post (10)
Bastion
Barrel Nut (10)
“L” Bracket (4)
5/8” Phillips Flat Head #6 Screw (8)
”L” Bracket Screws
7/16” Phillips Pan Head #6 Screw (24)
Glide Screws
18” Full Ext Glide Sets (3)
Bar Handle (8)
MSKRU M5-25 For Handles (16)
Caster with Stops (2) Caster (2)
1 3/4” Phillips Flat Head #8 Screw (12)
2 1/2” Phillips Flat Head #8 Screw (6)
Allen Wrench
5/8” Pan Head
Screw (8)
1/2” Phillips
Flat Head
#4 Screw (4)
Magnet Plate (4) Magnet (4)
MAGNET PACK
(Drawer Back &
Cutting Board Glide Support)
(Attaches Cutting
Board Side Rails)
(Attaches Cutting
Board Fronts)
Note: Not to scale
