- 49 -
6.4 SEQ Display Setup

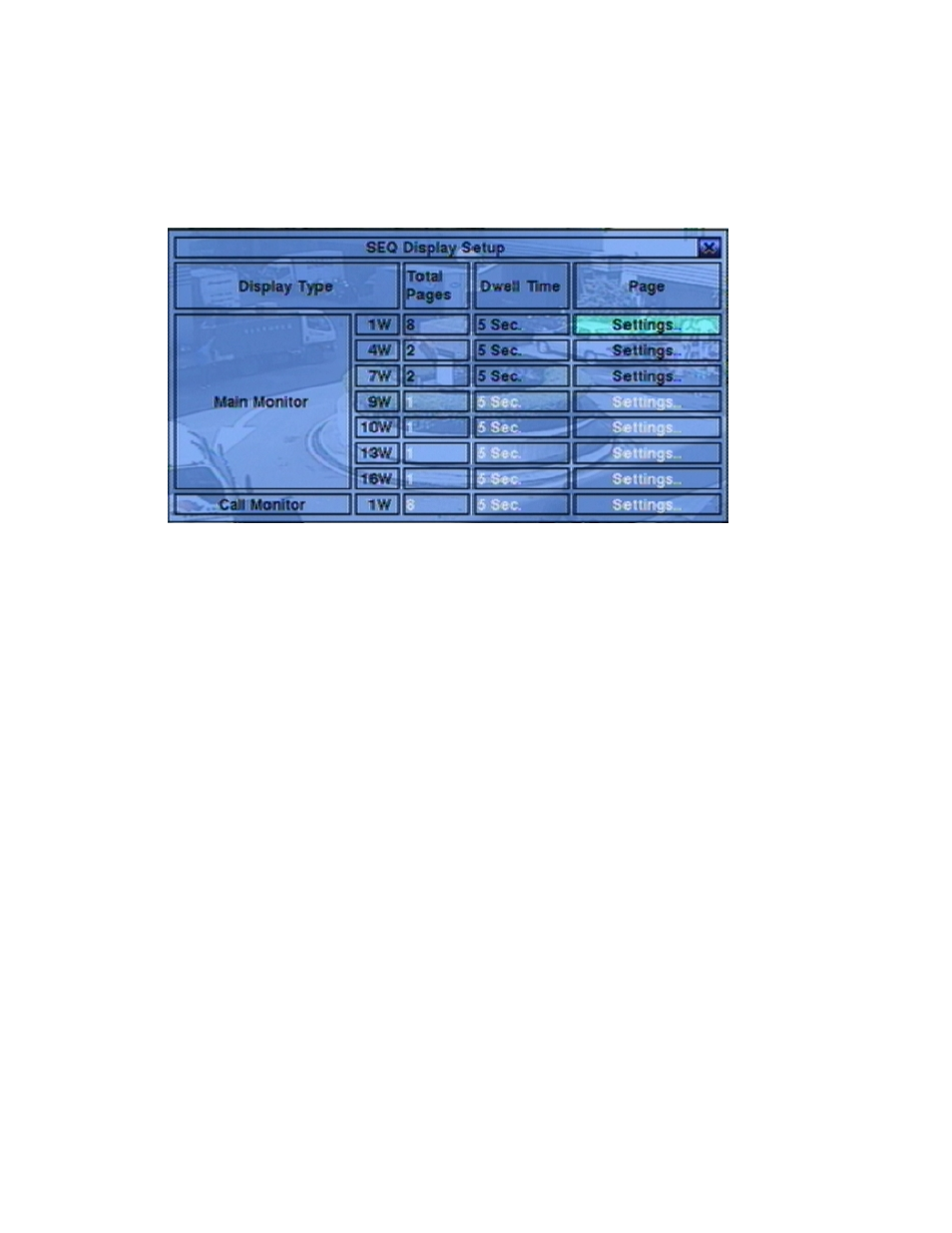

In Setup Menu display, press ▲▼◄► to change the highlighted option to SEQ
Display, and then press ENTER to call up SEQ Display Setup as shown.
The SEQ Display Setup allows the administrator to define the display pages in SEQ
Display for main monitor. There are up to 4 display types - 1-Window, 4-Window,
7-Window, and 9-Window - for main monitor.
The general operations are as below:
„
▲▼◄► (Mouse: Left click)
Press these buttons to select the items.
„
ESC (Mouse: Right Click)
Press this button to escape from this screen, and return to Setup Menu display. If
the Save dialog is shown, press ENTER to exit and save, ESC
(Mouse: Right
Click) to exit without saving.
Following is a brief description for each item and its specific operations:
„
Total Pages – total pages for this SEQ Display Type. The maximum number
varies according to the display type. Press +/- buttons to select the desired
number from the available list.
„
Dwell Time – the dwell time (3 ~ 60 seconds, discrete) for each page of this
display type. Press +/- buttons to change the value.
„
Page Settings.. – used to set the camera in each viewing window for each page of
this SEQ Display Type. Press ENTER (Mouse: Left click) to call up Display
Page Setup as shown.
