- 37 -

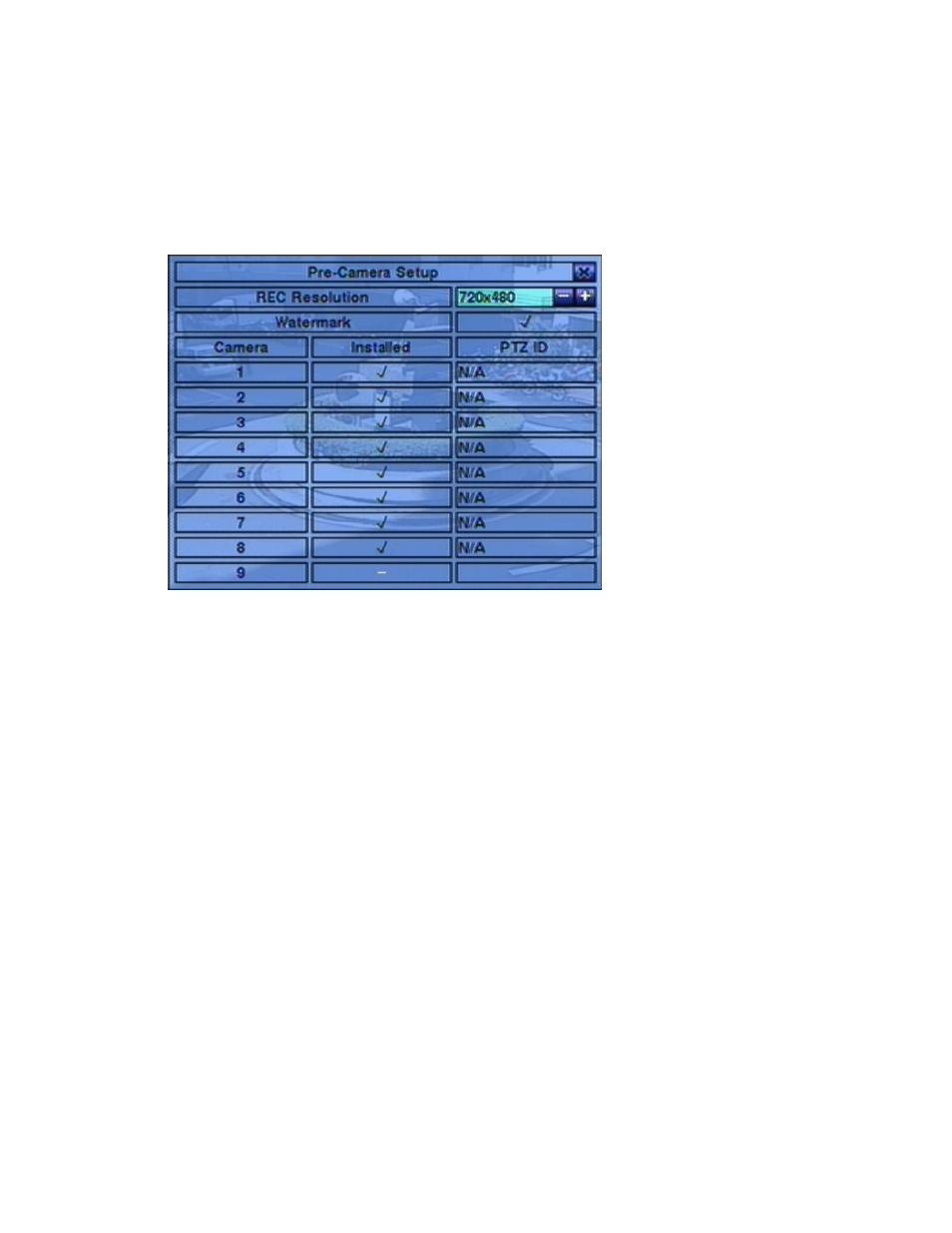

6.1 Pre-Camera Setup
In Setup Menu display, press ▲▼◄► to change the highlighted option to
Pre-Camera, and then press ENTER
(Mouse: Left click) to call up Pre-Camera
Setup display.
There are up to 8/4 cameras which can be connected to the system. The Pre-Camera
Setup allows the administrator to define some fundamental attributes for all the
installed cameras.
The general operations are as below:
„
▲▼◄►
Press these buttons to select the items.
„
Numeric
Press these buttons to select the camera.
„
ESC (Mouse: Right Click)
Press this button to escape from this screen, and return to Setup Menu display. If
the contents have been modified, a Save dialog will be shown to ask the user to
save the changes, press ENTER to exit and save, ESC
(Mouse: Right Click) to
exit without saving.
Following is a brief description for each item and its specific operations:
„
REC Resolution – the record resolution for all the cameras in the system. For
NTSC, it can be 720x480, 720x240, or 360x240; for PAL, 720x576, 720x288, or
360x288. Press +/- buttons to select the resolution.
