PAGE 6
INSTALLATION SECTION 4
Fill ALL conduit seal fittings with Chico compound and Chico fiber per
the manufacturer's instructions.
The power connection to the control box is made through a conduit
connection in the top of the control box. Connect the proper conduit
and wiring as required by code. Connect the incoming power to the
three wires that protrude from the conduit connection. See ladder type
wiring diagram in FIGURE 4D.
WARNING
IT IS CUSTOMER'S RESPONSIBILITY TO FILL ALL
CONDUIT SEAL FITTINGS (INCLUDING THE ONES
TO THE SOLENOID VALVES) WITH CHICO COM-
POUND AND CHICO FIBER TO ENSURE THE
INTEGRITY OF THE EXPLOSION PROOF RATING
The electrical controls for the HLSXA dryers are housed in a NEMA 4/7
rated metal enclosure that is explosion proof (Class 1, Div 1, Groups
C & D).
4.7 ELECTRICAL CONNECTIONS
WARNING
SERIOUS PERSONAL INJURY AND DAMAGE TO THE DRYER
WILL OCCUR IF THE DRYER IS CONNECTED TO A POWER
SOURCE OTHER THAN THE VOLTAGE LISTED ON THE DATA
TAG.
WHEN INSTALLING THE ELECTRICAL CONNECTIONS FOR
THIS DRYER, COMPLY WITH NATIONAL ELECTRICAL CODE
AND ALL APPLICABLE FEDERAL, STATE AND LOCAL CODES

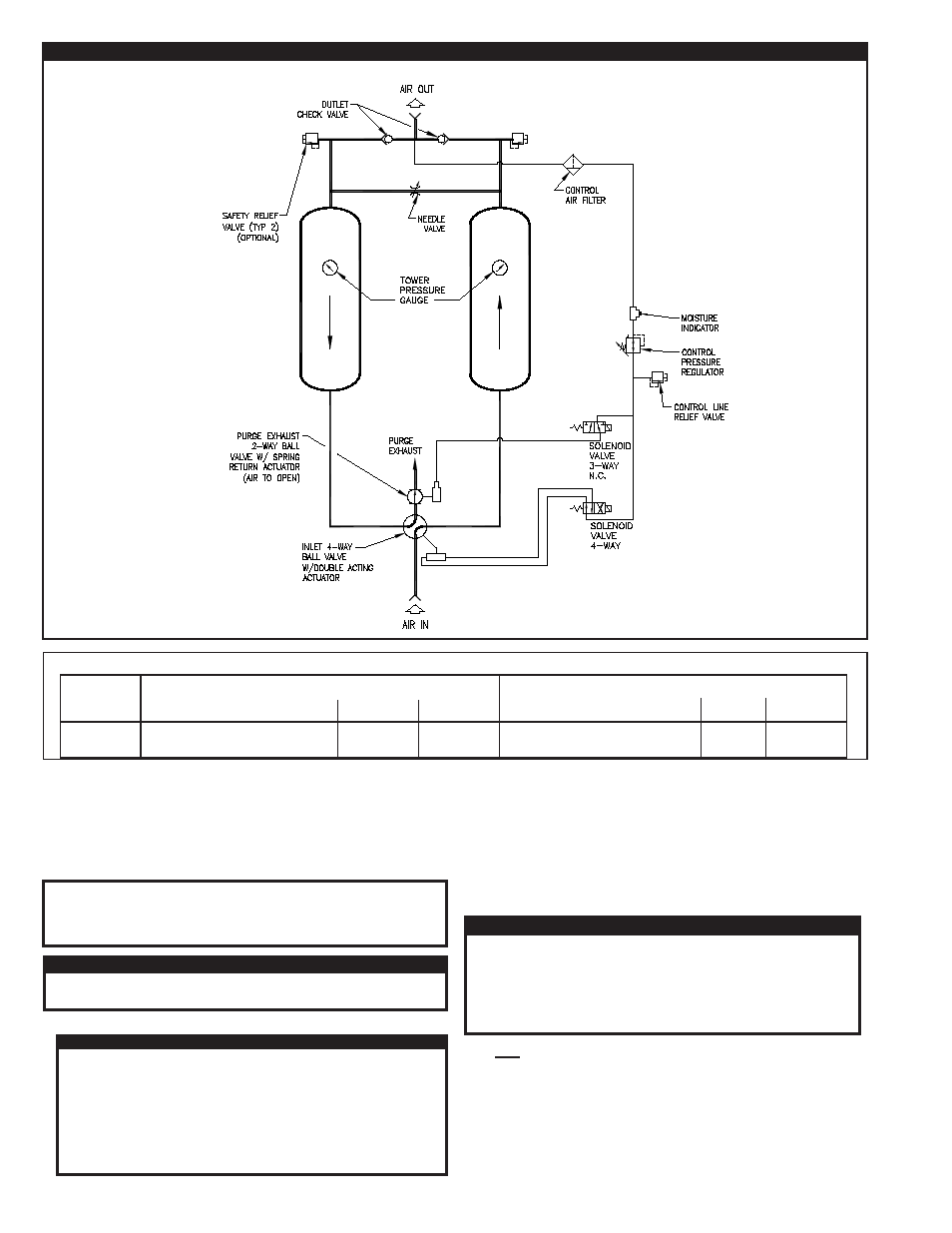

FIGURE 4B: DRYER PNEUMATIC SCHEMATIC
4.6 INSTALLING THE PURGE MUFFLER
The muffler was shipped separately. It should NOT be installed until
the dryer has been operated for several hours. From desiccant instal-
lation, some dust may be present in the desiccant towers. Operating
the dryer with the muffler installed immediately after the towers have
been filled with desiccant or at initial start up may cause the muffler to
clog.
IMPORTANT
The dryer must be operated for several hours without the muf-
fler after the towers have been filled with desiccant. This will
prevent the muffler from becoming clogged.
MODEL
HLSXA55
DRAIN
MANUAL/
AUTOMATIC
MODEL
F200-55-1/2-C
PD GAUGE
PD-6
DRAIN
MANUAL
MODEL
F200-55-1/2-RB
PD GAUGE
PD-6
PRE-FILTER AFTER-FILTER
FIGURE 4C: RECOMMENDED PRE/AFTER FILTERS
WARNING
WHEN OPERATING THIS DRYER WITHOUT THE MUFFLERS
INSTALLED, USE HEARING PROTECTION.
