USGlobalsat DG-100 User Guide - Manual (Page 14)

DG-100 page 14

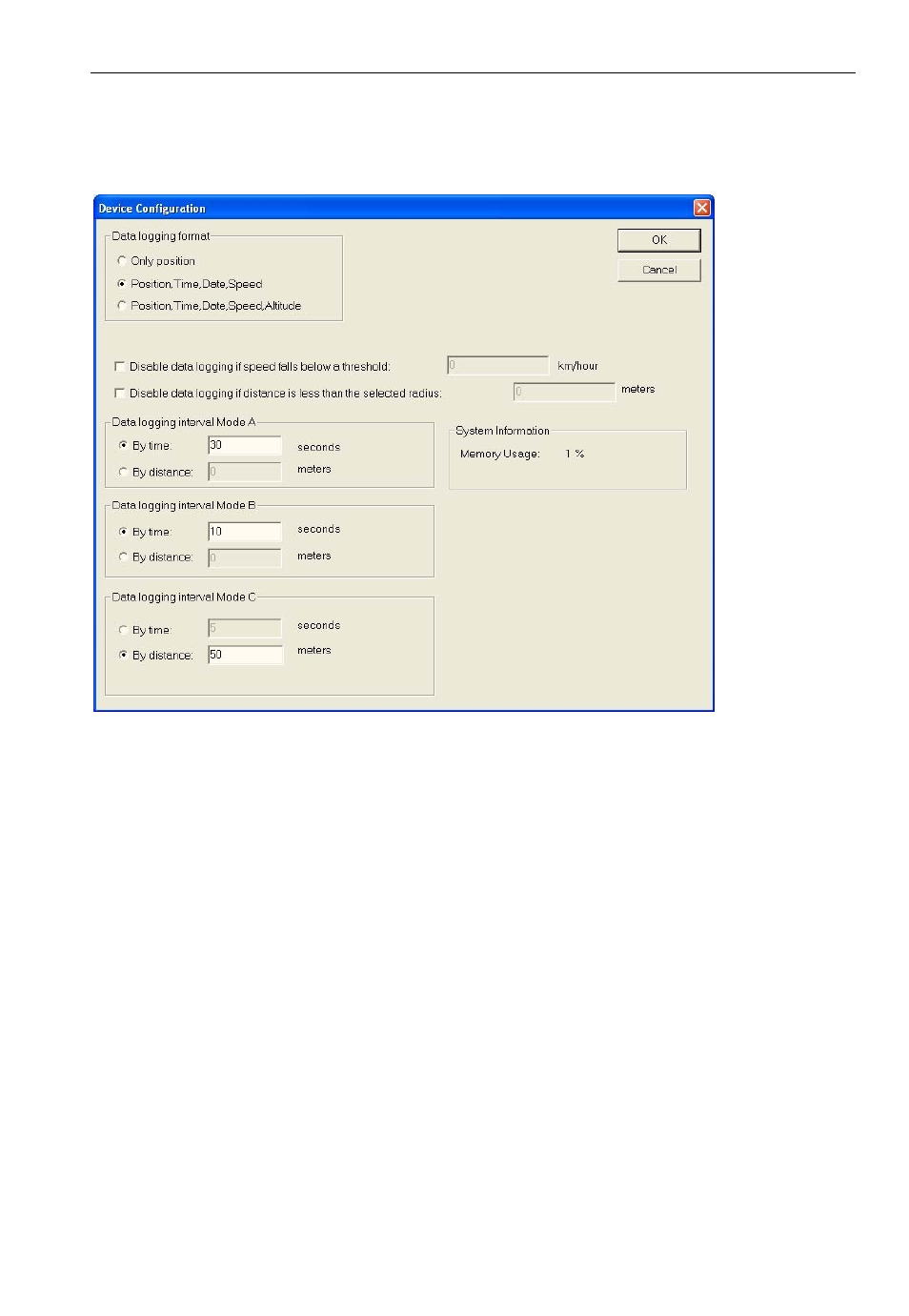

5. From menu bar, click on [Settings] > [Configuration] to open the Device
Configuration dialog box.
f Data logging format:
There are three options for you to choose those data items to be recorded.
f Disable data logging if speed falls below a threshold:
If your speed is below this specified value, DG-100 will not save the data of current
position.
f Disable data logging if distance is less than the selected radius:
If the distance between your last point and current point is less than this specified
value, DG-100 will not save the data of current position.
f Data logging interval Mode A, B, C
Setup the Mode Switch for the interval (time or distance) for recording the data.
f System information
It shows the current memory usage status.
6. When you have done the configuration setup, press OK button to save the settings
to DG-100.
7. These setting will take effect when next time you restart the device.
