Universal Air Tools UT150 (HP150) - Manual

Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Important Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Manufacturer/Supplier Product Type RPM
Cycles Per Min Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No Fax No (01494) 883300 (01494) 883237
Model No/Nos Serial No
Product Nett Weight
lbs
Kg
Recommended Use Of
Balancer Or Support
Recommended Hose Bore
Size - Minimum
Recommended Max.
Hose Length
Ins M/M Ft M
Foreseen Use Of Tool
The impact wrench is designed for the tightening and loosening
of threaded fasteners within the range as specified by the
manufacturer. It should only be used in conjunction with suitable
impact type 1½" square female drive nut running sockets. Only
use sockets which are of the impact type.
It is allowed to use suitable extension bars, universal joints and
socket adaptors between the square output drive of the impact
wrench and the square female drive of the socket.
Do not use the tool for any other purpose than that specified
without consulting the manufacturer or the manufacturer's
authorised supplier. To do so may be dangerous.
Never use an impact wrench as a hammer to dislodge or
straighten cross threaded fasteners. Never attempt to modify the
tool for other uses and never modify the tool for even its
recommended use as a nutrunner.
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air
pressure at the tool of 90 p.s.i./6.3 bar when the tool is running
with the trigger fully depressed and the air regulator in its
maximum opening flow position. Use recommended hose size

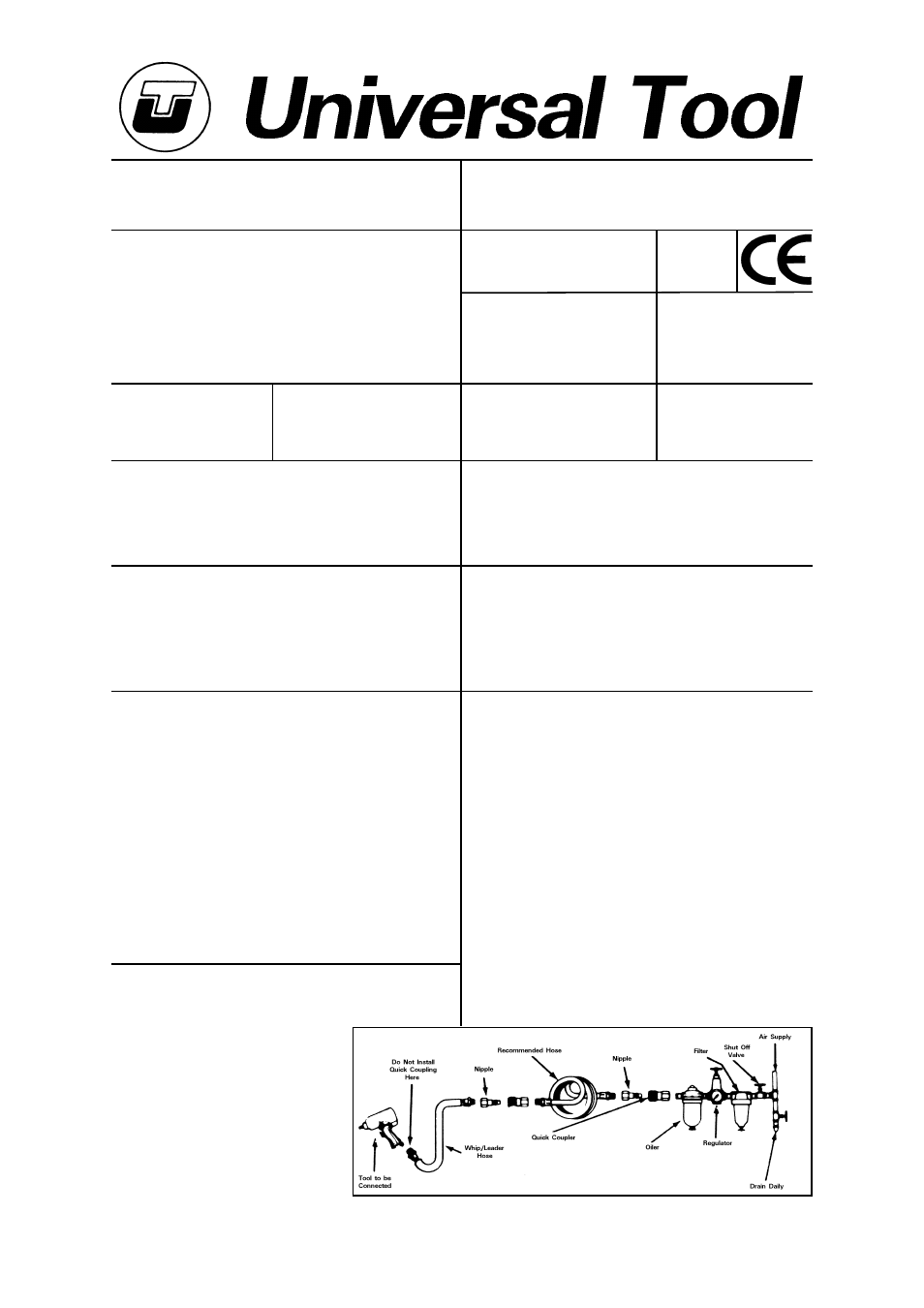

and length. It is recommended that the tool is connected to the
air supply as shown in figure 1. Do not connect a quick connect
coupling directly to the tool but use a whip or leader hose of say
approximately 12 inches length. Do not connect the tool to the
air line system without incorporating an easy to reach and
operate air shut off valve. The air supply should be lubricated. It
is strongly recommended that an air filter, regulator, lubricator
(FRL) is used as shown in Figure 1 as this will supply clean,
lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by
shutting off the air supply to the tool, depressurising the line by
pressing the trigger on the tool. Disconnect the air line and pour
Work Stations
The tool should only be used as a handheld hand operated tool.
It is always recommended that the tool is
used when standing on the solid floor. It can
be in other positions but before any such
use, the operator must be in a secure
position having a firm grip and footing and
be aware that when loosening fasteners the
tool can move quite quickly away from the
fastener being undone. An allowance must
always be made for this rearward move-
ment so as to avoid the possibility of
hand/arm/body entrapment.
1½" Square Inside Lever
Grip Impact Wrench
UT150 (HP150)
3,000
1/2 13 30 10
Yes
34.1
15.5
Air Pressure
Recommended Working 6.3 bar 90 PSI
Recommended Minimum n/a bar n/a PSI
Maximum 7.0 bar 100 PSI
Personal Safety Equipment
Use - Safety Glasses Yes
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Yes
Page No 1
Noise Level Sound Pressure Level 98.7 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Sound Power Level 110.4 dB(A)
Vibration Level
Test Method Tested in accordance with ISO
standard 8662 Parts 1 & 7
9.7 Metres / Sec²
