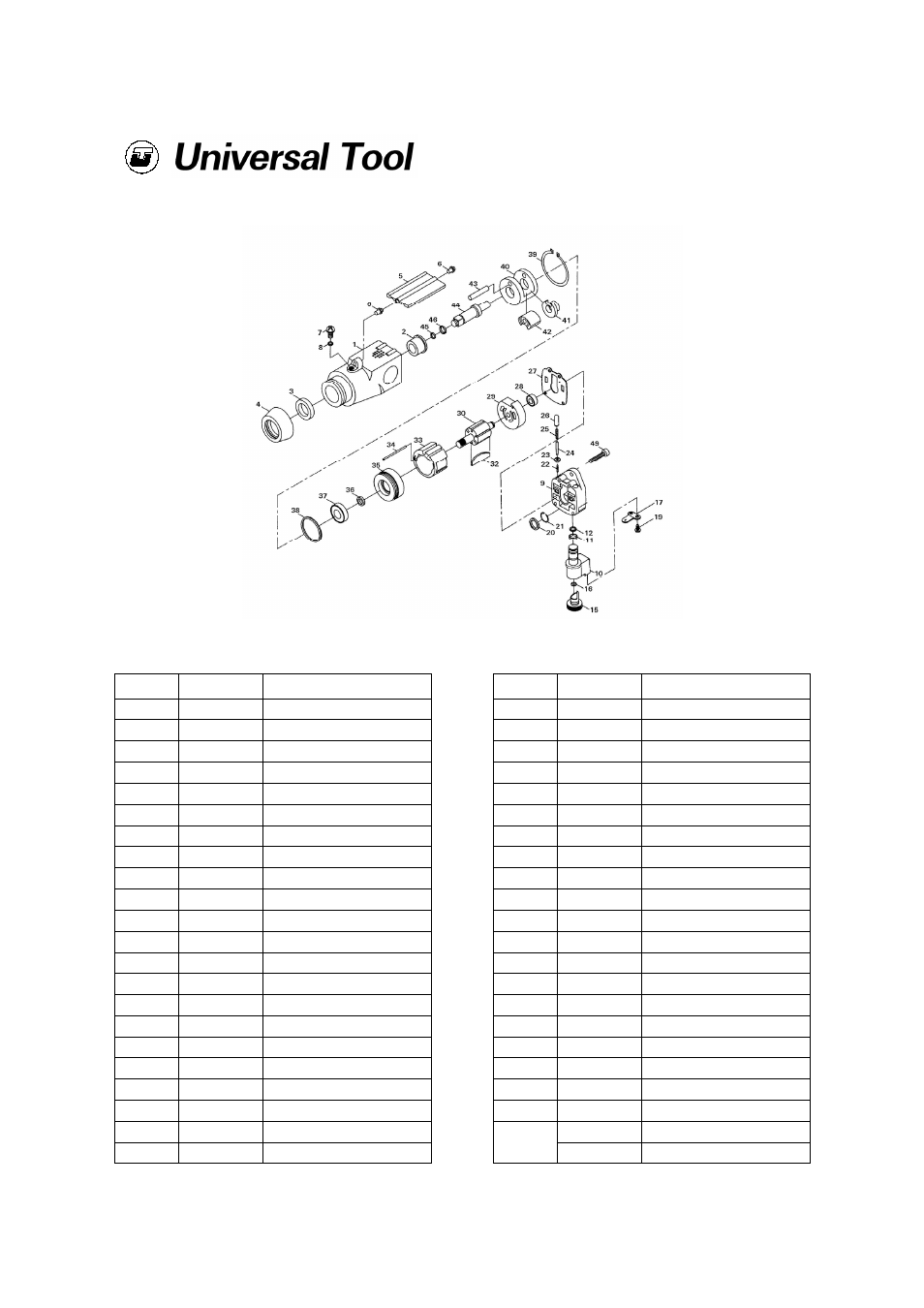

UT8020-T 3/8" Square Drive Palm Grip Impact Wrench
Page No 3
Mar 2005 Ver 1.1
Ref No Part No Description
1 106101 Motor Housing
2 106102 Anvil Bushing
3 106103 Oil Seal
4 106104 Rubber Nose Guard
5 106105 Throttle Lever
6 106106 Throttle Pin (2)
7 106107 Oiler Screw
8 0400-170 O-Ring
9 106109 Back Cap
10 106110 Air Inlet Block
11 1100-250 O-Ring
12 0880-140 O-Ring (2)
15 106115 Regulator
16 0700-200 O-Ring
17 106117 Retainer Plate
19 106119 Screw (2)
20 106120 Fixing Ring
21 000S-120 Retaining Ring
22 106122 Valve Spring (2)
23 106123 Valve Seat (2)
24 106124 Valve (2)
25 106125 Plunger Spring (2)
Ref No Part No Description
26 106126 Plunger (2)
27 106127 Back Cap Gasket
28 0626-ZZ0A Ball Bearing
29 106129 Rear End Plate
30 106130 Rotor
32 106132 Rotor Blade (6)
33 106133 Cylinder
34 106134 Motor Pin
35 106135 Front End Plate
36 106136 Oil Seal
37 0EE3-000A Ball Bearing
38 3550-180 O-Ring
39 000R-390 Snap Ring
40 106140 Hammer Cage
41 106141 Cam
42 106142 Hammer
43 106143 Hammer Pin
44 106144 Anvil
45 106145 O-Ring
46 106146 Socket Ret Ring
49
106149 Cap Screw-Long (2)
106150 Cap Screw-Short (2)
