Universal Air Tools UT8020T User Manual
Important, Operator instructions, Sound pressure level 90.3 db(a)

Read these instructions carefully before installing,
operating, servicing or repairing this tool. Keep these
instructions in a safe accessible place.
Important
Includes - Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules
Operator Instructions
Manufacturer/Supplier
Product Type
RPM
Cycles Per Min
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Model No/Nos
Serial No
Product Nett Weight
lbs
Kg
Recommended Use Of
Balancer Or Support
Recommended Hose Bore
Size - Minimum
Recommended Max.
Hose Length
Ins
M/M
Ft
M
Foreseen Use Of Tool
The impact wrench is designed for the tightening and loosening
of threaded fasteners within the range as specified by the
manufacturer. It should only be used in conjunction with suitable
impact type 3/8" square female drive nut running sockets. Only
use sockets which are of the impact type.
It is allowed to use suitable extension bars, universal joints and
socket adaptors between the square output drive of the impact
wrench and the square female drive of the socket.
Do not use the tool for any other purpose than that specified
without consulting the manufacturer or the manufacturer's
authorised supplier. To do so may be dangerous.
Never use an impact wrench as a hammer to dislodge or
straighten cross threaded fasteners. Never attempt to modify
the tool for other uses and never modify the tool for even its
recommended use as a nutrunner.
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air
pressure at the tool of 90 p.s.i./6.3 bar when the tool is running
with the trigger fully depressed and the air regulator in its
maximum opening flow position. Use recommended hose size

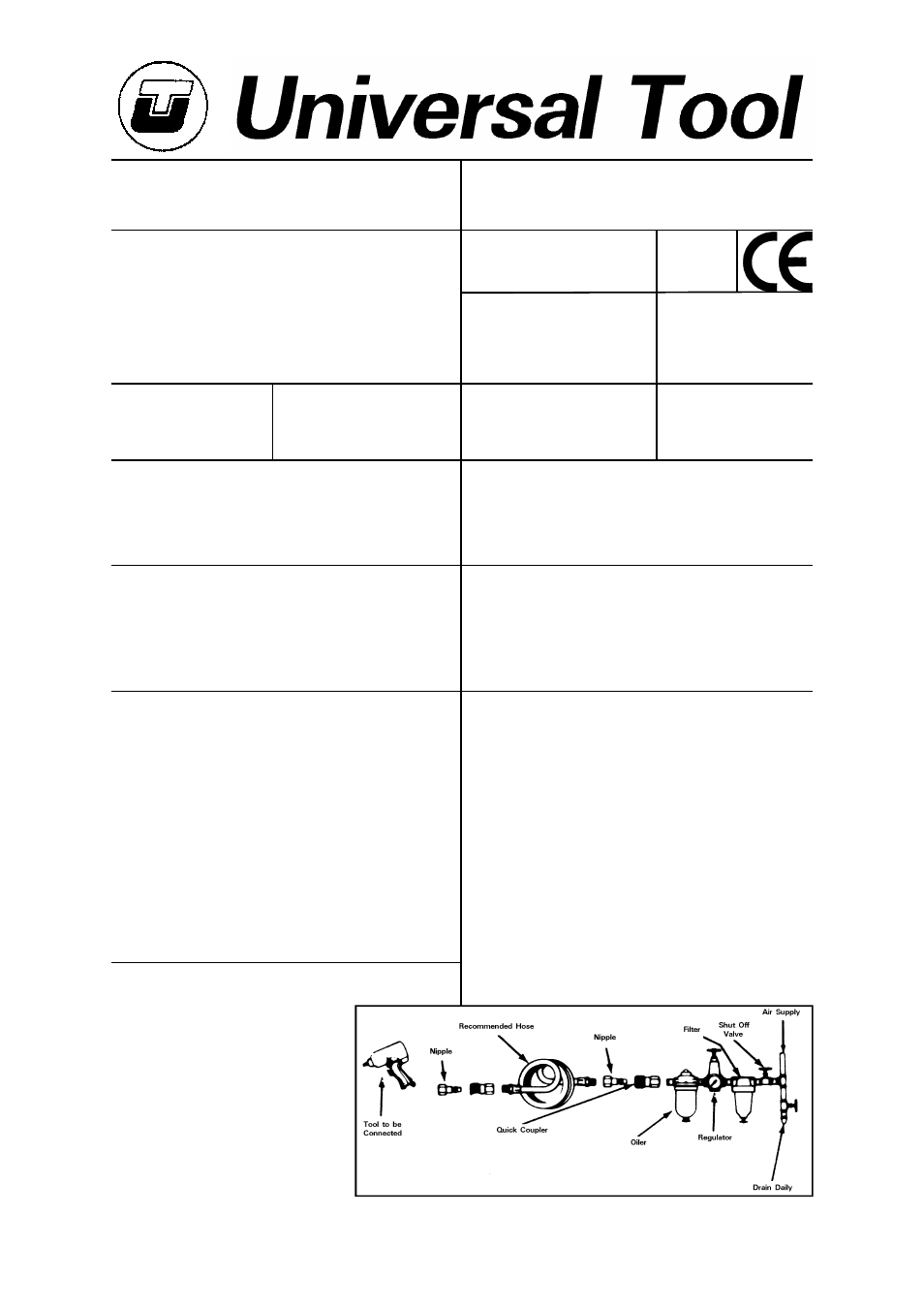

and length. It is recommended that the tool is connected to the
air supply as shown in figure 1. Do not connect a quick connect
coupling directly to the tool but use a whip or leader hose of say
approximately 12 inches length. Do not connect the tool to the
air line system without incorporating an easy to reach and
operate air shut off valve. The air supply should be lubricated. It
is strongly recommended that an air filter, regulator, lubricator
(FRL) is used as shown in Figure 1 as this will supply clean,
lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by
shutting off the air supply to the tool, depressurising the line by
Work Stations
The tool should only be used as a handheld
hand operated tool. It is always recom-
mended that the tool is used when standing
on the solid floor. It can be used in other
positions but before any such use, the opera-
tor must be in a secure position having a firm
grip and footing and be aware that when
loosening fasteners the tool can move quite
quickly away from the fastener being undone.
An allowance must always be made for this
rearward movement so as to avoid the possi-
bility of hand/arm/body entrapment.
3/8 Sq. Drive Butterfly
Lever Impact Wrench
UT8020-T
10,000
3/8
10
30
10
No
1.9
0.88
Page No 1
Tel No
Fax No
(01494) 883300
(01494) 883237
Noise Level
Sound Pressure Level 90.3 dB(A)
Test Method
Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Sound Power Level 100.3 dB(A)
Vibration Level
Test Method
Tested in accordance with ISO
standard 8662 Parts 1 & 7
2.8
Metres / Sec²
Air Pressure
Recommended Working
6.3
bar
90
PSI
Recommended Minimum
n/a
bar
n/a
PSI
Maximum
7
bar
100
PSI
Personal Safety Equipment
Use - Safety Glasses
Yes
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Yes
