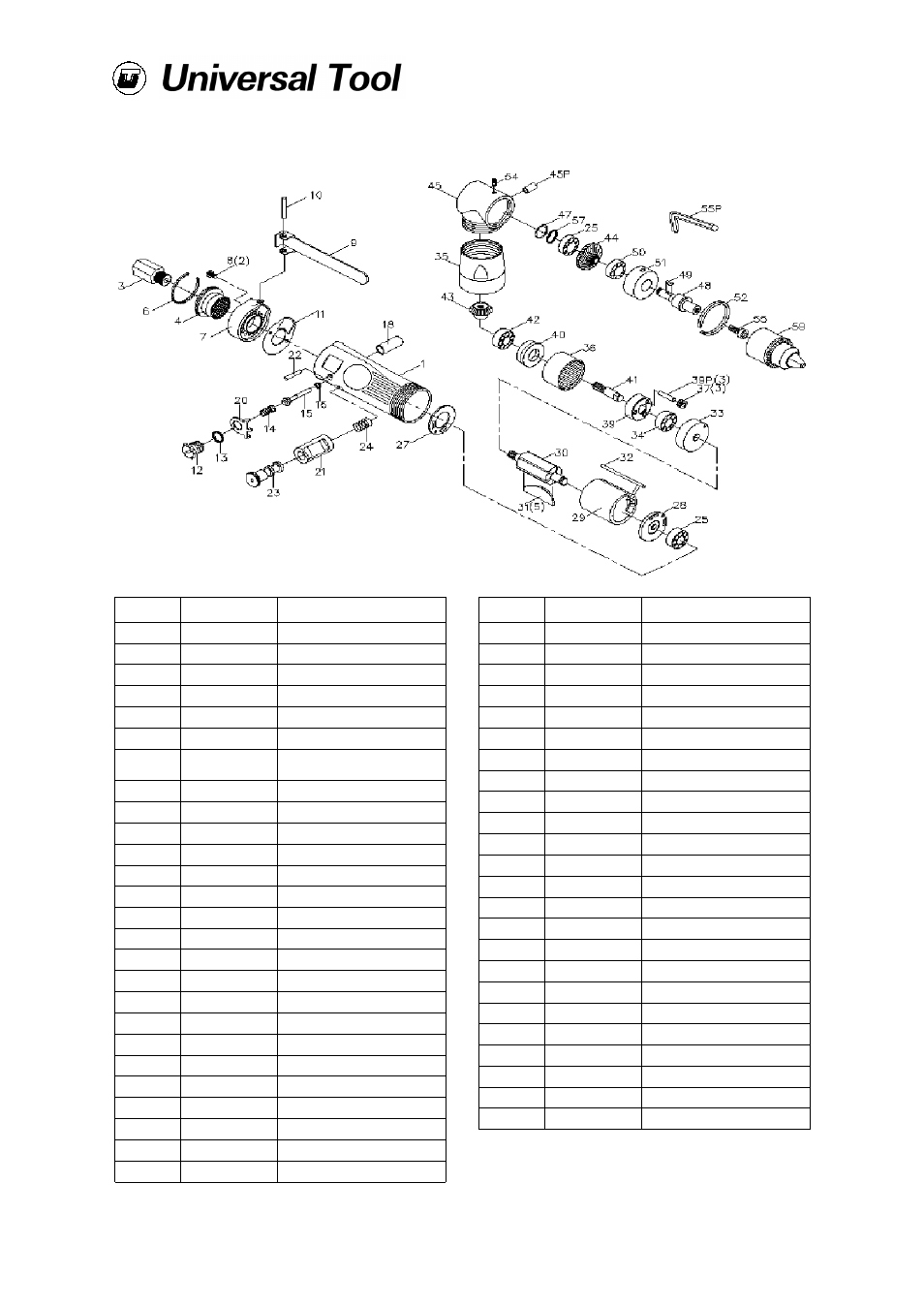

UT5807 3/8" Capacity Angle Drill
Page No 3 Nov 2004 Ver 1.11
Ref No Part No Description
1 126301 Motor Housing
3 126303 Inlet Bushing
4 126304-1AA0 Deflector
6 126306-1JBO Stop Ring
7 126307 Housing Cap
8 126308-IJBO Screw (2)
9 126309
Throttle Lever/ Safety
Lever
10 P-0030-240 Pin
11 126311-1SPO Housing Gasket
12 126312-1AAO Valve Screw
13 O-0700-200 O-Ring
14 126314-1AAO Valve Spring
15 126315-1GRO Throttle Valve
16 O-0400-200 O-Ring
18 126318-1AAO Valve Bushing
20 126320-1JBO Retainer
21 126321-1GRO Bushing
23 126323-1GRO Reverse Valve
24 126324-1AAO Reverse Spring
25 729705 Ball Bearing (2)
27 126327-1SPO Motor Gasket
28 126328-1GVO Rear End Plate
29 126329 Cylinder (P.M) / (Steel)
30 126330-1GVO Rotor
31 106316-1GRO Rotor Blade (5)
32 126332-1AA0 Motor Pin
Ref No Part No Description
33 126333-1JBO Front End Plate
34 729188 Ball Bearing
35 126335 Lock Ring
36 126336-1GRO Internal Gear
37 106322-1TTO Planet Gear (3)
39 126339-1AAO Cage
39P 103324-AAAO Pin (3)
40 126340-1JBO Spacer
41 126341-1GVO Gear Spindle
42 732229 Ball Bearing
43 126343-1AAO Pinion
44 126344-1AAO Gear
45 126345 Angle Housing
45P 103633-BSPO Ball Cap
47 R-S056 Retainer Ring
48 126348-1JBO Spindle
49 126349-1AAO Key
50 750841 Ball Bearing
51 126351-1LLO Bearing Case
52 R-R344 Retainer Ring
54 127810-AJBO Set Screw
55 137701-1AAO Screw (2)
57 126357-1AAO Wave Washer
59 H0019K 3/8" Keyless Chuck
