Universal Air Tools UT8744 - Manual (Page 3)

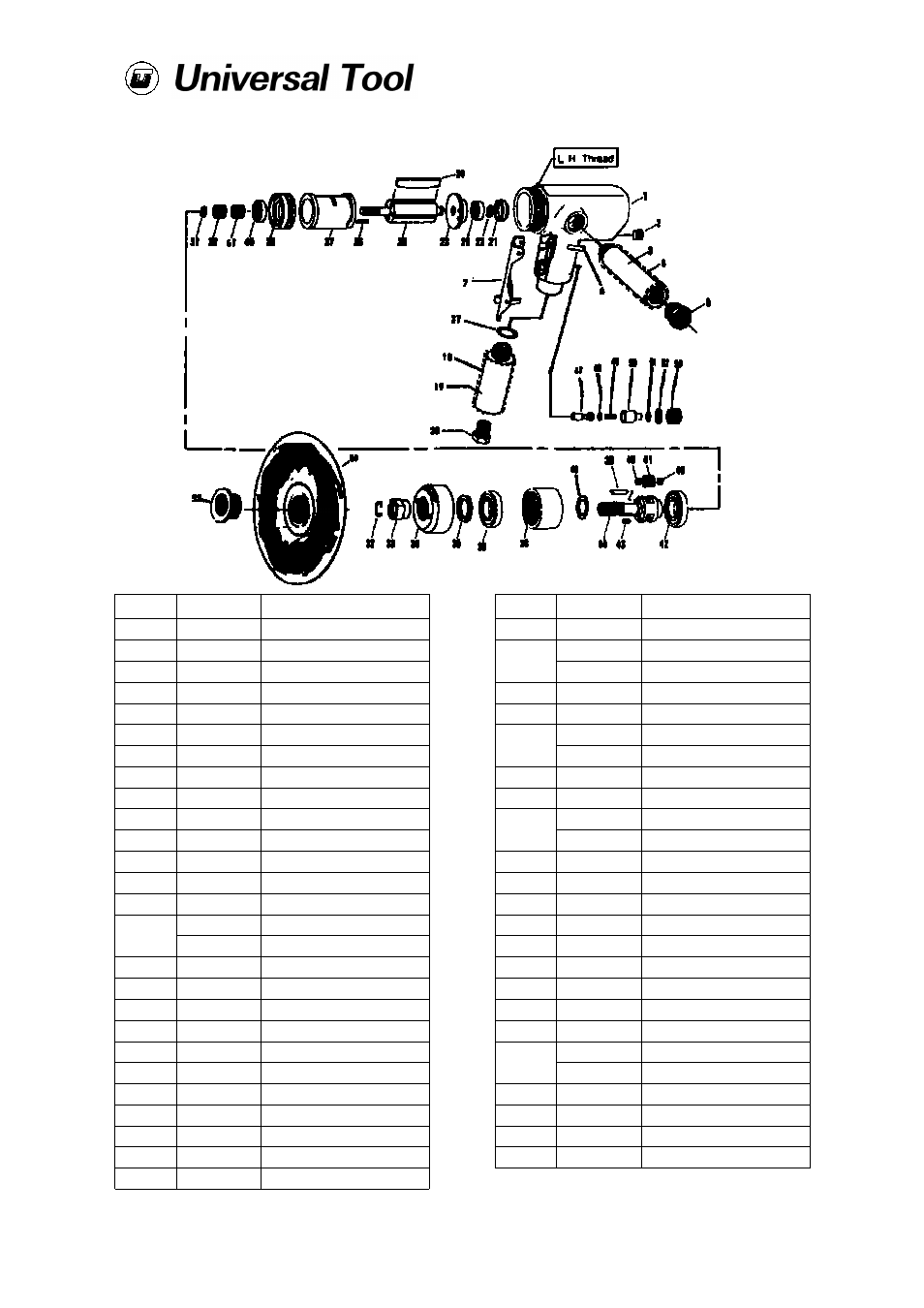

Page No 3
Ref No Part No Description
1 730150 Housing
2 1008209 Plug
3 729236 Dead Handle
4 729437 Handle Grip
5 729238 Exhaust Deflector
6 729167 Lever Pin
7 900382 Locking Lever
18 729327 Handle Grip
19 729254 Handle
20 729257 Hose Adapter
21 729250 Bearing Cap
22 729225 Retaining Ring
23 729231 Rear Plate
24 729230 Rotor Blade (4)
25
730151 Rotor (Sander)
731070 Rotor (Polisher)
26 729252 Dowel Pin
27 729229 Cylinder
28 729228 Front End Plate
29 729288 Ball Bearing
30 730152 Pinion (Sander)
31 729255 Retaining Ring
32 729212 Collar Retaining Ring
33 729213 Collar
34 730153 Clamp Nut
35 729215 Oil Seal
36 1005467 Ball Bearing
Ref No Part No Description
37 900409 O-Ring
38
730154 Ring Gear (Sander)
731073 Ring Gear (Polisher)
39 729219 Plant Pins (2)
40 729220 Needle Bearing (4)
41
730155 Idler Gear (2) (Polisher)
731072 Idler Gear (2) (Sander)
42 729222 Ball Bearing
43 729223 Woodruff Key
44
730156 Idler Gear Cage (Sander)
731074 Idler Gear Cage (Polisher)
45 729113 Ball Bearing
46 730157 Idler Gear Cage Washer
47 729259 Valve Stem
48 1012370 O-Ring
49 729258 Spring
50 729282 Air Regulator
51 729088 O-Ring
52 729073 O-Ring
53 729262 Valve Screw
54
99012 7" Dia Pad (Sander)
731184 7" Dia Pad (Polisher)
55 731075 Nut
57 1010911 Open End Wrench
60 729343 Name Plate Screw (2)
61 900410 Collar (Sander)
Jun 2005 Ver 1.2
UT8742
UT8744
7" Vertical Sander
7" Vertical Polisher
