Universal Air Tools UT8744 - Manual

Manufacturer/Supplier Product Type
RPM
Cycles Per Min
Tel No Fax No
(01494) 883300 (01494) 883237
Model No/Nos Serial No
Product Nett Weight
lbs
Kg
Recommended Use Of
Balancer Or Support
Recommended Hose Bore
Size - Minimum
Recommended Max.
Hose Length
Ins M/M Ft M
Foreseen Use of the Tool
This tool is designed for use with 7" diameter coated abrasive
discs of various grades of grit which are designed to be used at
the same or higher speed of this tool. The spindle thread is 5/8
- 11 UNC-2A and the tool can be used with other abrasive
devices that have the same female thread size and are designed
to run without a guard and have a rated speed equal to or higher
than the speed of the tool. Do not attempt to use any bonded
abrasive devices, i.e. grinding wheels, as those which could be
fitted because of their size, cannot be used without a suitable
guard. A guard is not available for this tool.
Do not fit any form of saw blade.
Do not fit any other abrasive or cutting device before checking
the suitability for use with this tool with the manufacturer or the
manufacturer's authorised distributor.
Do not modify this tool for other use, or for its use as a sander/
polisher before checking the intended alternative use with the
manufacturer or his authorised distributor.
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air
pressure at the tool of 90 p.s.i./6.3 bar when the tool is running
with the trigger/lever fully depressed. Use recommended hose
size and length. It is recommended that the tool is connected to

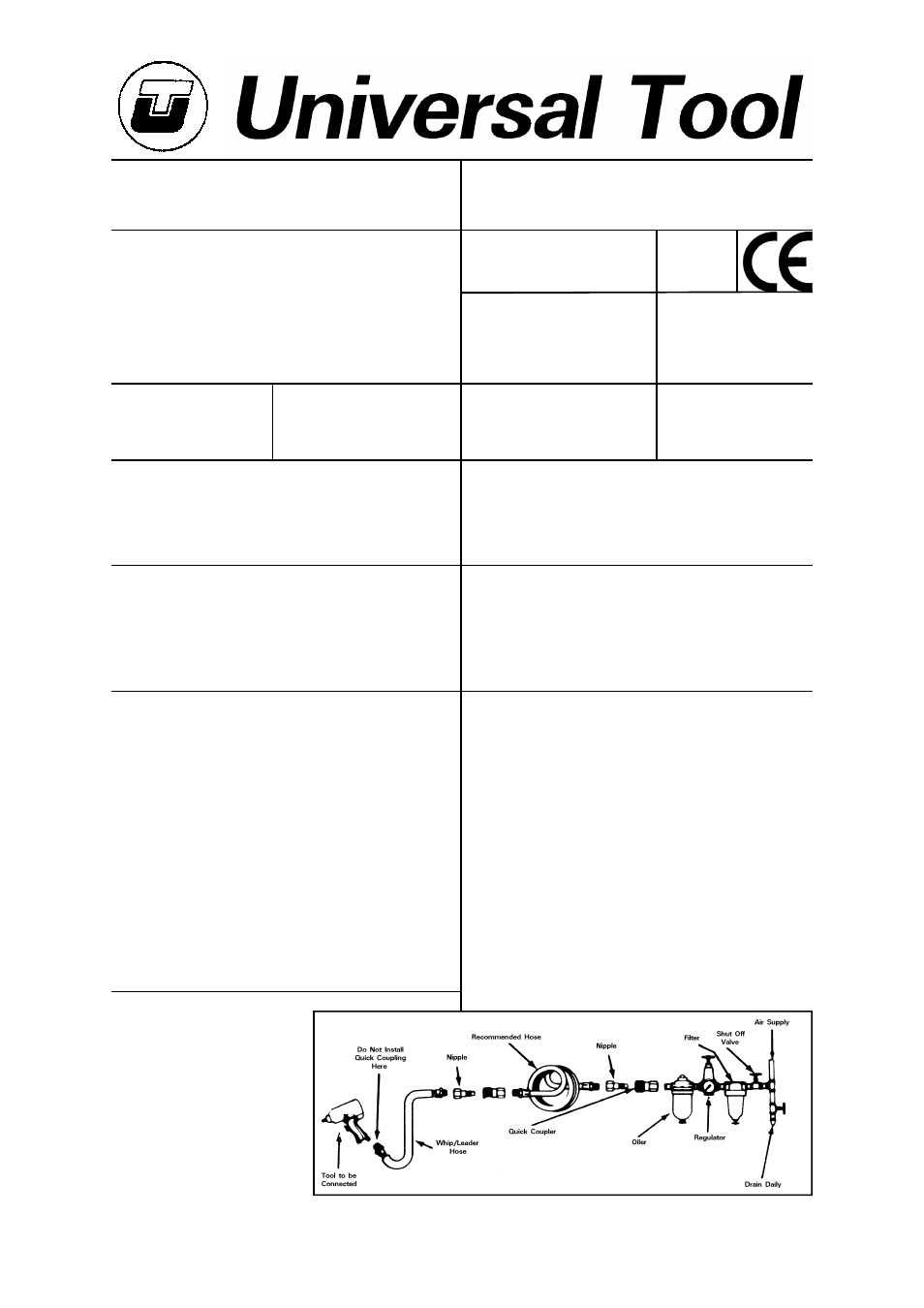

the air supply as shown in figure 1. Do not connect the tool to
the air line system without incorporating an easy to reach and
operate air shut off valve. The air supply should be lubricated. It
is strongly recommended that an air filter, regulator, lubricator
(FRL) is used as shown in Figure 1 as this will supply clean,
lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by
shutting off the air supply to the tool, depressurising the line by
pressing the trigger on the tool. Disconnect the air line and pour
into the intake bushing a teaspoonful (5ml) of a suitable
pneumatic motor lubricating oil preferably incorporating a rust
Work Stations
The tool should only be used as a
hand held hand operated tool. It is
always recommended that the tool
is used when standing on a solid
floor. It can be used in other posi-
tions but before any such use the
operator must be in a secure posi-
tion having a firm grip and footing
and be aware of the safety rules to
be obeyed when using the sander/
polisher.
No
Page No 1
Vertical Sander
Vertical Polisher
UT8742 - 6,000 RPM
Vertical Sander
UT8744 - 3,000 RPM
Vertical Polisher
4.4
2.0 3/8 10 30 10
(See Below)
Includes - Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules
Operator Instructions Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Noise Level Sound Pressure Level 83.2 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level
Test Method Tested in accordance with ISO
standards 8662/1 & 8662/4
Less than 2.5 Metres / Sec²
Personal Safety Equipment
Use - Safety Glasses
Yes
Use - Safety Gloves
Yes
Use - Safety Boots
Use - Breathing Masks
Yes
Use - Ear Protectors
Air Pressure
Recommended Working
6.3
bar
90
PSI
Recommended Minimum
n/a
bar
n/a
PSI
Maximum
7.0
bar
100
PSI
