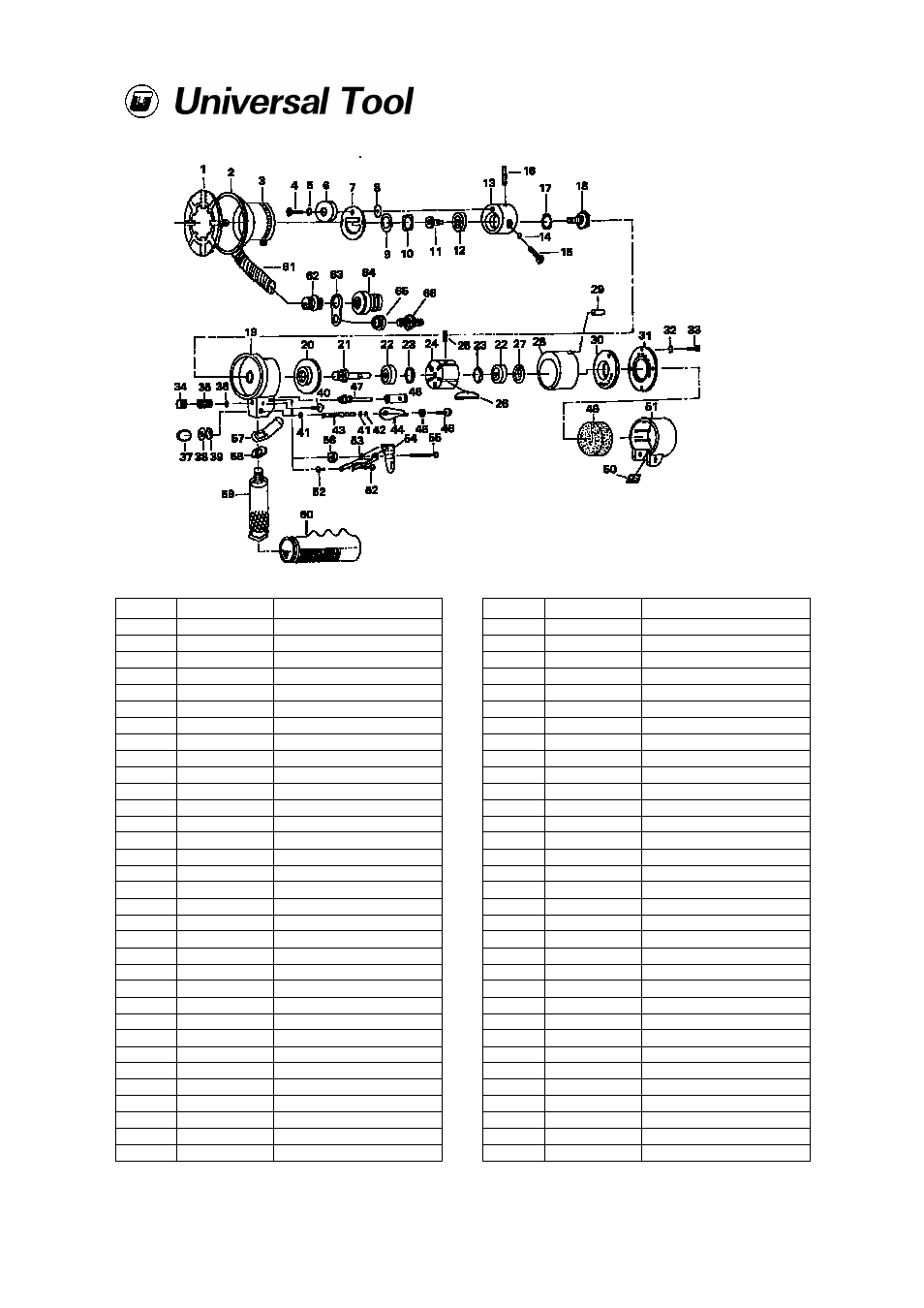

UT3
UT3DC

Dual Action Sander
Dual Action Sander-Dust Control

Page No 3

May 2004 Ver 1.32

Ref No

Part No

Description

1

301001-1LL0

Suction Sanding Pad

2

301002-1AA0

Suction Cover

3

301003-1AA0

Suction Cover Clamp

4

101002-1EA0

Cap Screw

5

101003-1JB0

Spring Washer

6

101004-1EA0

Balance Nut

7

101005-1EA0

Drive Washer

8

101006-1TC0

Wave Washer

9

000R-344

Retaining Ring

10

101008-1TC0

Wave Washer

11

101009-1GR0

Pad Mounting Shaft

12

6201-ZZ0A

Ball Bearing

13

101011-1JB0

Random Balance Body

14

101003-1JB0

Lock Washer

15

101012-1TC0

Socket Head Cap Screw

16

101013-1TC0

Fixing Screw

17

101014-1TC0

Wave Washer

18

101015-1TC0

Front Screw

19

301019-1PC0

Valve Body

20

101017-1LL0

Front Plate

21

101018-1LL0

Rotor Shaft

22

6200-ZZ0A

Ball Bearing

23

101020-1SP0

Shim (4)

24

101021-1GS0

Rotor

25

101022-1TC0

Set Screw

26

101023-1GR0

Rotor Blade (5)

27

101025-1SP0

Bearing Shield

28

101026-1BB0

Cylinder

29

101027-1LL0

Pin

30

101028-1DA0

Rear Plate

31

101029-1TC0

Rotor Fixing Cover

32

101030-1TC0

Spring Washer (4)

33

101031

Rotor Screw (4)

Ref No

Part No

Description

34

101032-1TC0

Throttle Valve Plug

35

101033-1AA0

Throttle Spring

36

0300-165

O-Ring

37

000S-056

Retaining Ring

38

101036-1JB0

Plate Washer

39

101037-1AA0

Rubber Washer

40

101038-1EA0

Screw (2)

41

0300-165

O-Ring (2)

42

0250-150

O-Ring

43

101040-1AA0

Regulator Valve

44

101042-1EA0

Regulator Switch

45

101043-1EA0

Lock Washer

46

101044-1EA0

Screw

47

101045-1GR0

Push Rod

48

101046-1AA0

Valve Body Bushing

49

101047-1AA0

Muffler

50

101048-1AA0

Muffler Element

51

101049-1AD0

Motor Cover

52

101050-1EA0

Screw (2)

53

101051-1AA0

Lever Bracket

54

101052-1VC0

Lever Booster

55

101053-1EA0

Bolt

56

101054-1EA0

Nut

57

101055-1AA0

Valve Lever

58

101056-1EE0

Lever Jam Nut

59

101058-1JB0

Hose Adaptor

60

101057-1IC0

Handle

61

301061-1AA0

Hose

62

301062-1LL0

Hose Joint

63

301063-1JB0

Set Plate

64

301064-1LL0

Suction Joint

65

301065-1JB0

Washer

66

301066

Adaptor
