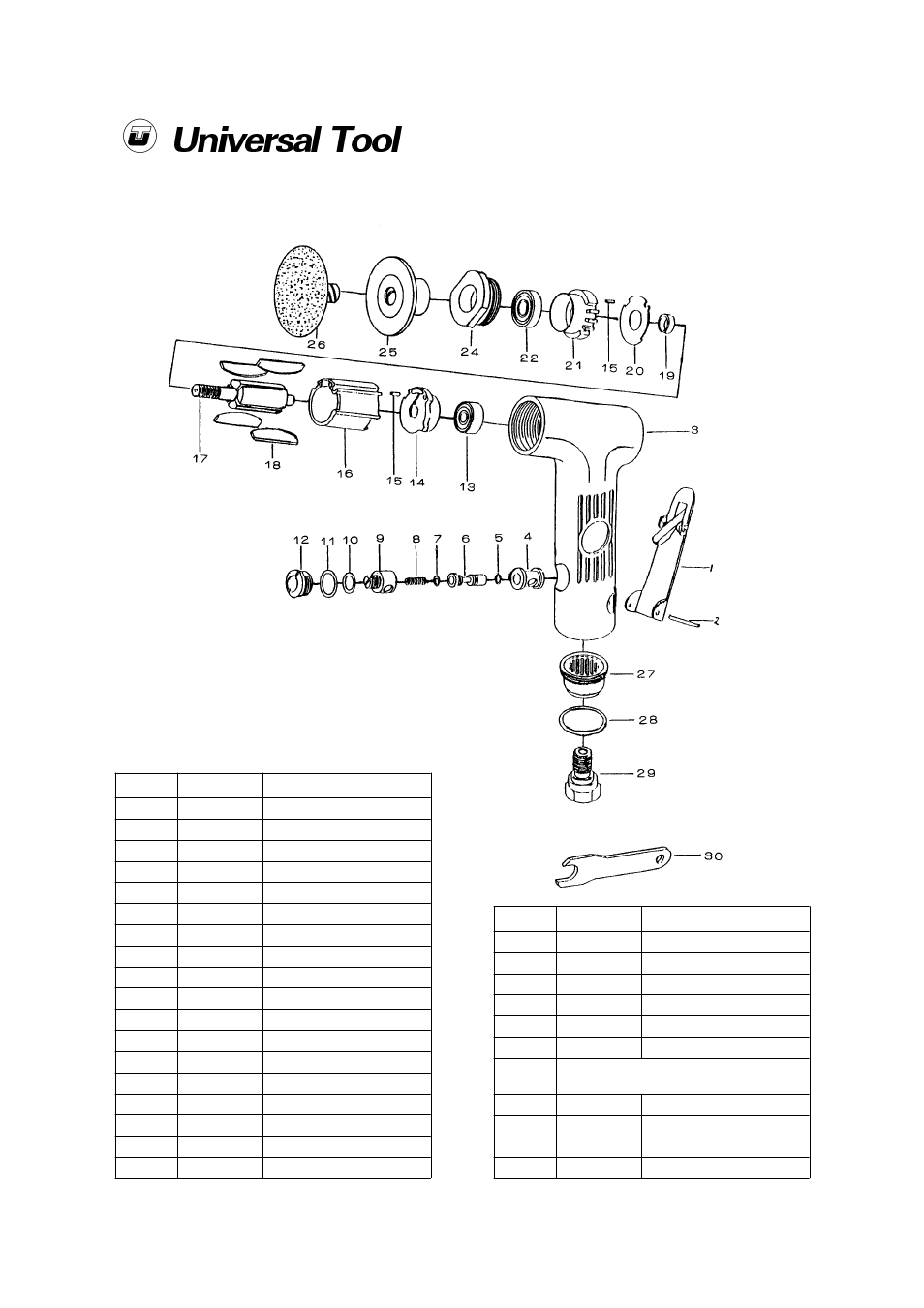

UT8777 Right Angle Paint Surfacing Tool
Page No 3 May 98 Ver 1.0
Ref No Part No Description
1 0308C001 Throttle Lever
2 0308C002 Spring Pin
3 0308C003 Housing
4 0308C004 Valve Bushing
5 0308C005 O-Ring
6 0308C006 Valve Stem
7 0308C007 O-Ring
8 0308C008 Valve Spring
9 0308C009 Air Controller
10 0308C010 O-Ring
11 0308C011 O-Ring
12 0308C012 Valve Screw
13 0308C013 Bearing
14 0308C014 End Plate
15 0308C015 Pin (2)
16 0308C016 Cylinder
17 0308C017 Rotor
18 0308C018 Blade (4)
Ref No Part No Description
19 0308C019 Collar
20 0308C020 Steel Plate
21 0308C021 Front Plate
22 0308C022 Bearing
24 0308C024 Lock Ring
25 0308C025 Disc Holder
26
For details of suitable discs consult
supplier
27 0308C027 Exhaust Sleeve
28 0308C028 O-Ring
29 0308C029 Air Inlet
30 0308C030 Wrench (11 mm)
