Universal Air Tools UT8777 User Manual
Foreseen use of tool, Putting into service air supply, Work stations

Manufacturer/Supplier
Product Type
RPM
Cycles Per Min
Tel No
Fax No
Model No/Nos
Serial No
Product Nett Weight
lbs
Kg
Recommended Use Of
Balancer Or Support
Recommended Hose Bore
Size - Minimum
Recommended Max.
Hose Length
Ins
M/M
Ft
M
Foreseen Use of Tool
This tool is designed for the purpose of light surface
finishing/preparation. It is particularly useful for the preparation of
painted surfaces. It can be used with bristle discs or with coated
abrasive disc pads.
Do not use the tool for any other purpose than that for which it has
been designed before first seeking advice from the manufacturer or
an authorised representative.
Do not modify the tool for any other or its use as a paint surfacing tool
unless first discussing and having approval for any modification from
the manufacturer or an authorised distributor.
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air pressure
at the tool of 90 p.s.i./6.3 bar when the tool is running with the
lever/trigger fully depressed. Use recommended hose size and
length. It is recommended that the tool is connected to the air supply

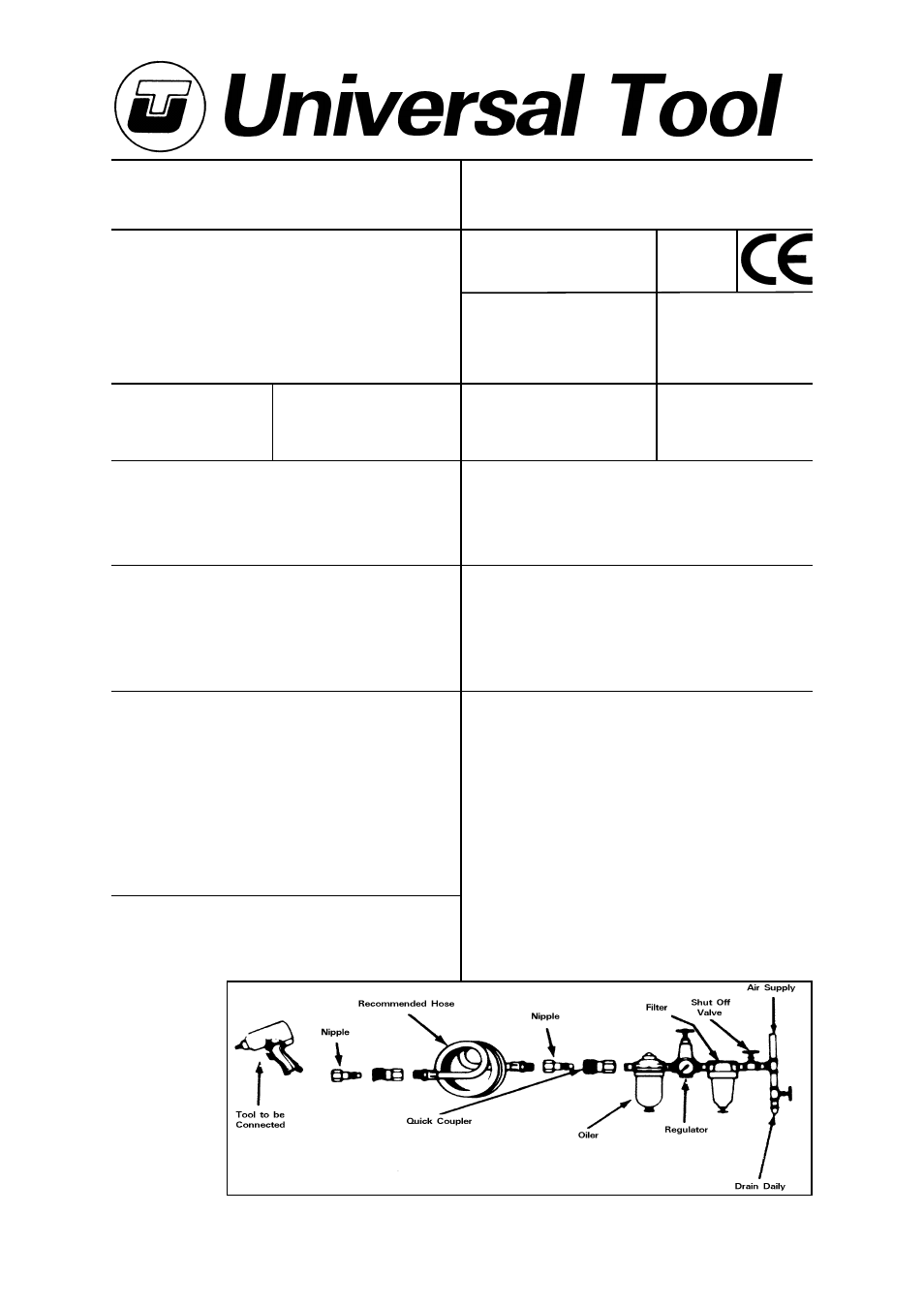

as shown in figure 1. Do not connect the tool to the air line system
without incorporating an easy to reach and operate air shut off valve.
The air supply should be lubricated. It is strongly recommended that
an air filter, regulator, lubricator (FRL) is used as shown in Figure 1 as
this will supply clean, lubricated air at the correct pressure to the tool.
Details of such equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by shutting
off the air supply to the tool, depressurising the line by pressing the
lever/trigger on the tool. Disconnect the air line and pour into the
intake bushing a teaspoonful (5ml) of a suitable pneumatic motor
Work Stations
The tool should only be used as a handheld hand operated tool. It is
always recommended that the tool is used when standing on the solid
floor. It can be
used in other po-
sitions but before
any such use, the
operator must be
in a secure posi-
tion having a firm
grip and footing
and be aware of
the extra safety
precautions that
must be observed
when using Grind-
ing Machines.
No
Page No 1
Right Angle Paint
Surfacing Tool
UT8777
1.32
0.60
3/8
10
30
10
25,000
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Operator Instructions
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Noise Level
Sound Pressure Level 84.7 dB(A)
Test Method
Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Sound Power Level 95.6 dB(A)
Vibration Level
Test Method
Tested in accordance with ISO
standard 8662 Parts 1 & 8
Less than 2.5 Metres / Sec²
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
(01494) 883300
(01494) 883237
Personal Safety Equipment
Use - Safety Glasses
Yes
Use - Safety Gloves
Yes
Use - Safety Boots
Use - Breathing Masks
Yes
Use - Ear Protectors
Yes
Air Pressure
Recommended Working
6.3
bar
90
PSI
Recommended Minimum
n/a
bar
n/a
PSI
Maximum
7
bar
100
PSI
