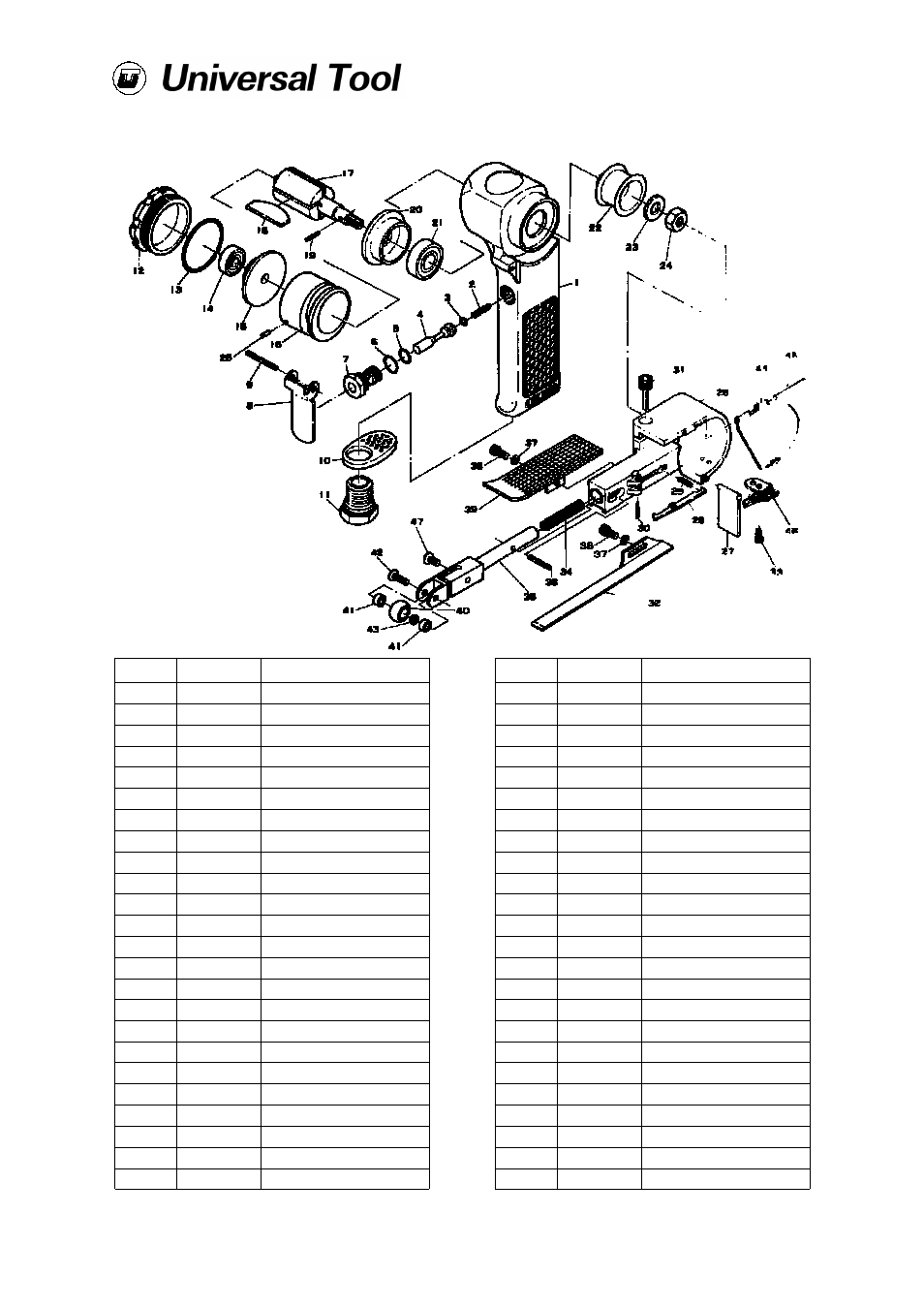

UT8765 20mm Belt Sander
Page No 3
Jan 2005 Ver 1.2
Ref No Part No Description
1 900629 Motor Housing
2 900490 Spring
3 1008173 O-Ring
4 900051 Valve Stem
5 729088 O-Ring
6 729091 O-Ring
7 900053 Valve Body
8 900514 Throttle Lever
9 729167 Lever Pin
10 900515 Deflector
11 900516 Air Inlet
12 900517 Motor Nut
13 729018 O-Ring
14 729012 Ball Bearing
15 900518 Rear Plate
16 900630 Cylinder
17 900631 Rotor
18 900246 Rotor Blade (4)
19 900522 Roll Pin
20 900523 Front Plate
21 729113 Ball Bearing
22 900632 Drive Pulley
23 900633 Washer
24 900526 Lock Nut
Ref No Part No Description
25 900634 Cylinder Pin
26 900635 Wheel Cover
27 900636 Apron
28 900637 Stopper
29 900638 Stopper Spring
30 732389 Roll Pin
31 900176 Cap Screw
32 900639 Shoe
33 900640 Cap Screw (2)
34 900641 Tension Spring
35 900642 Tension Arm
36 900643 Stopper Pin
37 900644 Washer (2)
38 900645 Cap Srew (2)
39 900646 Finger Plate
40 900647 Idle Pulley
41 900648 Ball Bearing (2)
42 900649 Idle Shaft
43 900650 Collar
44 900651 Wheel Cover Lid
45 900652 Roll Pin
46 900653 Cover Latch
47 900654 Counter Sink
900660 Belt
