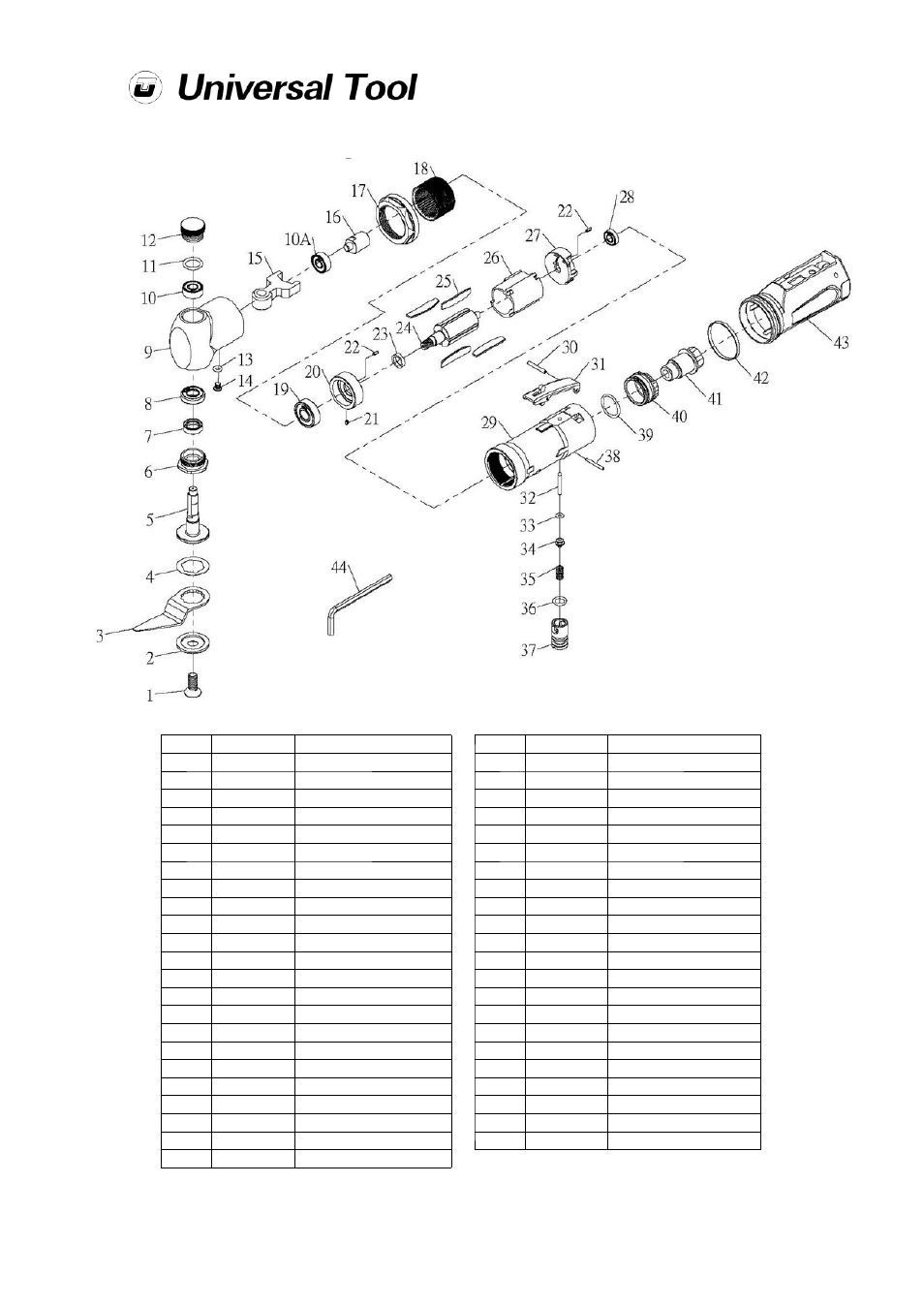

UT616BN Windscreen Cutter
Page No 3 Apr 2012 Ver 1.00
Ref No Part No Description
1 616BN-01 Screw
2 616BN-02 Retainer
3 616BN-03 Blade 57mm
4 616BN-04 Packing
5 616BN-05 Spindle Drive
6 616BN-06 Nut Clamp
7 616BN-07 Seal Oil
8 616BN-08 Ball Bearing
9 616BN-09 Head
10 616BN-10 Ball Bearing
10A 616BN-10A Ball Bearing
11 616BN-11 O-Ring
12 616BN-12 Plug
13 616BN-13 O-Ring
14 616BN-14 Screw
15 616BN-15 Fork Drive
16 616BN-16 Shaft Crank
17 616BN-17 Coupling Nut
18 616BN-18 Internal Gear
19 616BN-19 Ball Bearing
20 616BN-20 Front End Plate
21 616BN-21 Spring Pin
22 616BN-22 Spring Pin
Ref No Part No Description
23 616BN-23 Washer
24 616BN-24 Rotor
25 616BN-25 Rotor Blade (4)
26 616BN-26 Cylinder
27 616BN-27 Rear End Plate
28 616BN-28 Ball Bearing
29 616BN-29 Motor Housing
30 616BN-30 Spring Pin
31 616BN-31 Safety Lever Assembly
32 616BN-32 Valve Shaft
33 616BN-33 O-Ring
34 616BN-34 Throttle Valve
35 616BN-35 Valve Spring
36 616BN-36 O-Ring
37 616BN-37 Valve Screw
38 616BN-38 Spring Pin
39 616BN-39 O-Ring
40 616BN-40 Exhaust Sleeve
41 616BN-41 Inlet Bushing
42 616BN-42 "O" Rubber Band
43 616BN-43 Housing Cover
44 616BN-44 Key
