2. Move the pusher plate to the rear of the cassette (toward the handle). Ensure the pusher plate
is fully back. It should stay in this position.
L
OADING
N
OTE
C
ASSETTES
Follow these steps to load the cassette with notes. When loaded, the notes must lean evenly against
the note plate, as shown in Figure 4-8.
WARNING: The shape of some notes may be affected by conditions of storage or bundling,
preventing them from forming neat, even piles. If not corrected, such conditions may cause
notes to be rejected by the dispensing mechanism. To compensate for the most common con-
ditions of slanting or cupped note piles, follow the directions given here. Notes with no appar-
ent shape problems are referred to as “common” notes.

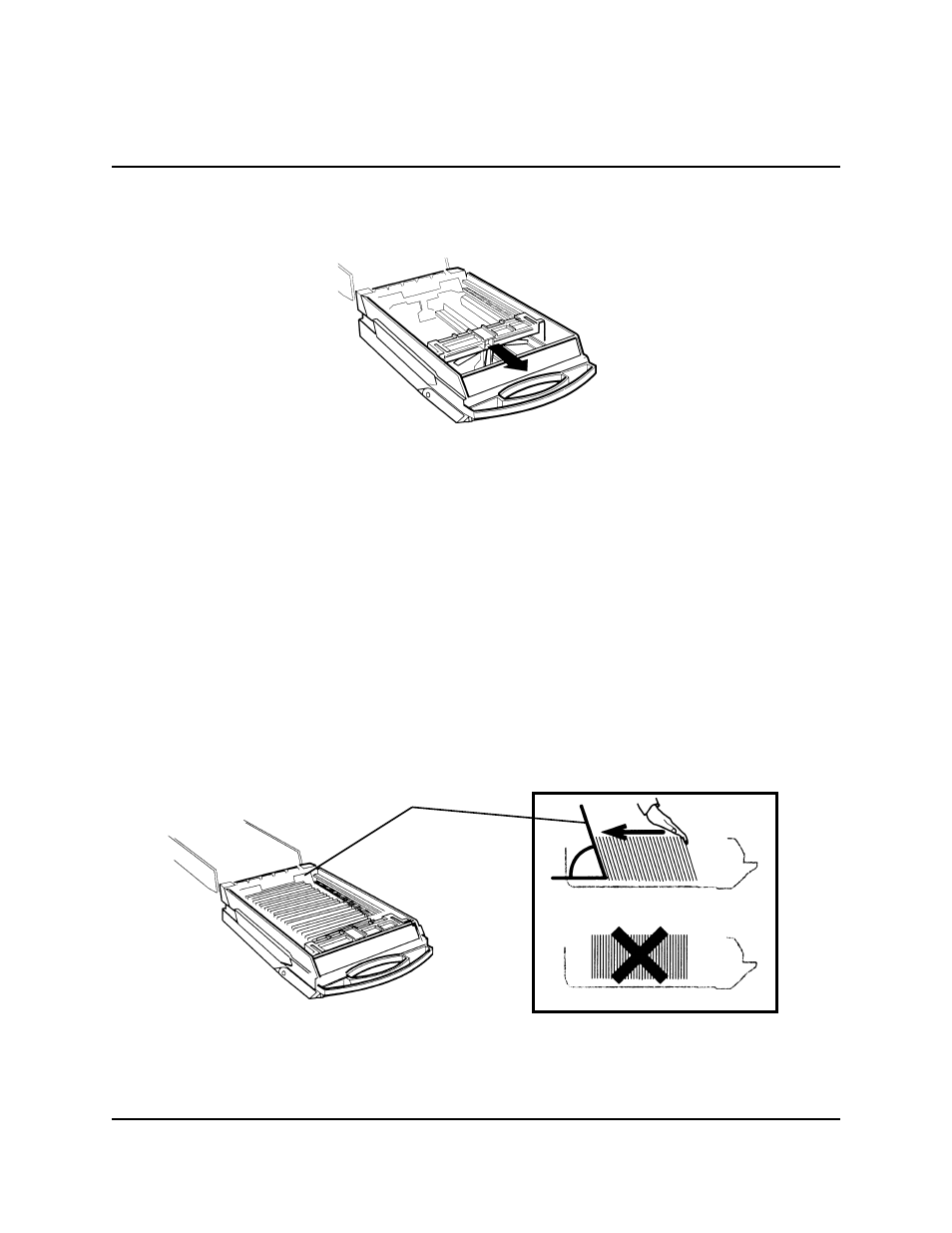

Figure 4-7. Lid Open and Pusher Plate Back.
Figure 4-8. Notes leaning against Note Plate.
Note Plate
