31

G

ENERAL

M

AINTENANCE

4.

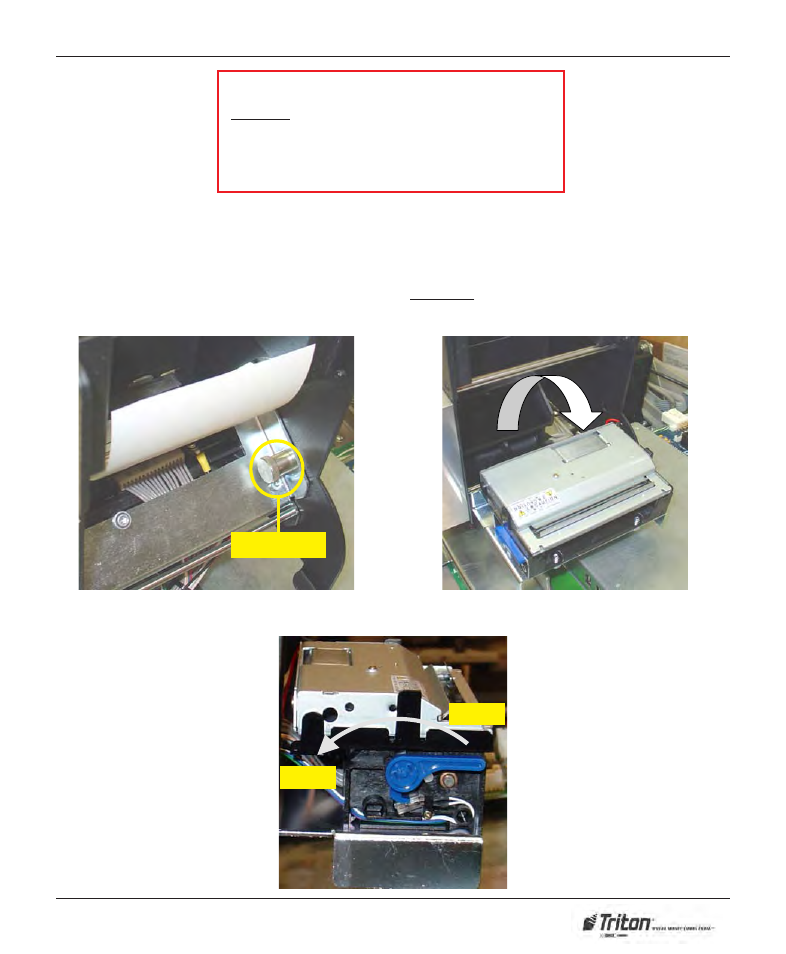

Pull the pin located on the right side of the printer bracket shown. Rotate the printer/cutter assembly
towards the front of the control panel.

5.

Release (O

PEN

) the blue tension lever located on the left side. Remove any paper from the printer/

cutter assembly. Move the tension lever back to the CLOSED position (blue lever facing towards the
right). Close the printer/cutter assembly by rotating up and pin secures.

Open

Closed

Pull release pin.

Rotate printer/cutter assembly down.

Tension lever.

Release pin

** CAUTION **

DO NOT pull receipt paper backwards through the
printer with the tension rollers closed!

This may leave paper fragments that can cause pa-
per jams.
