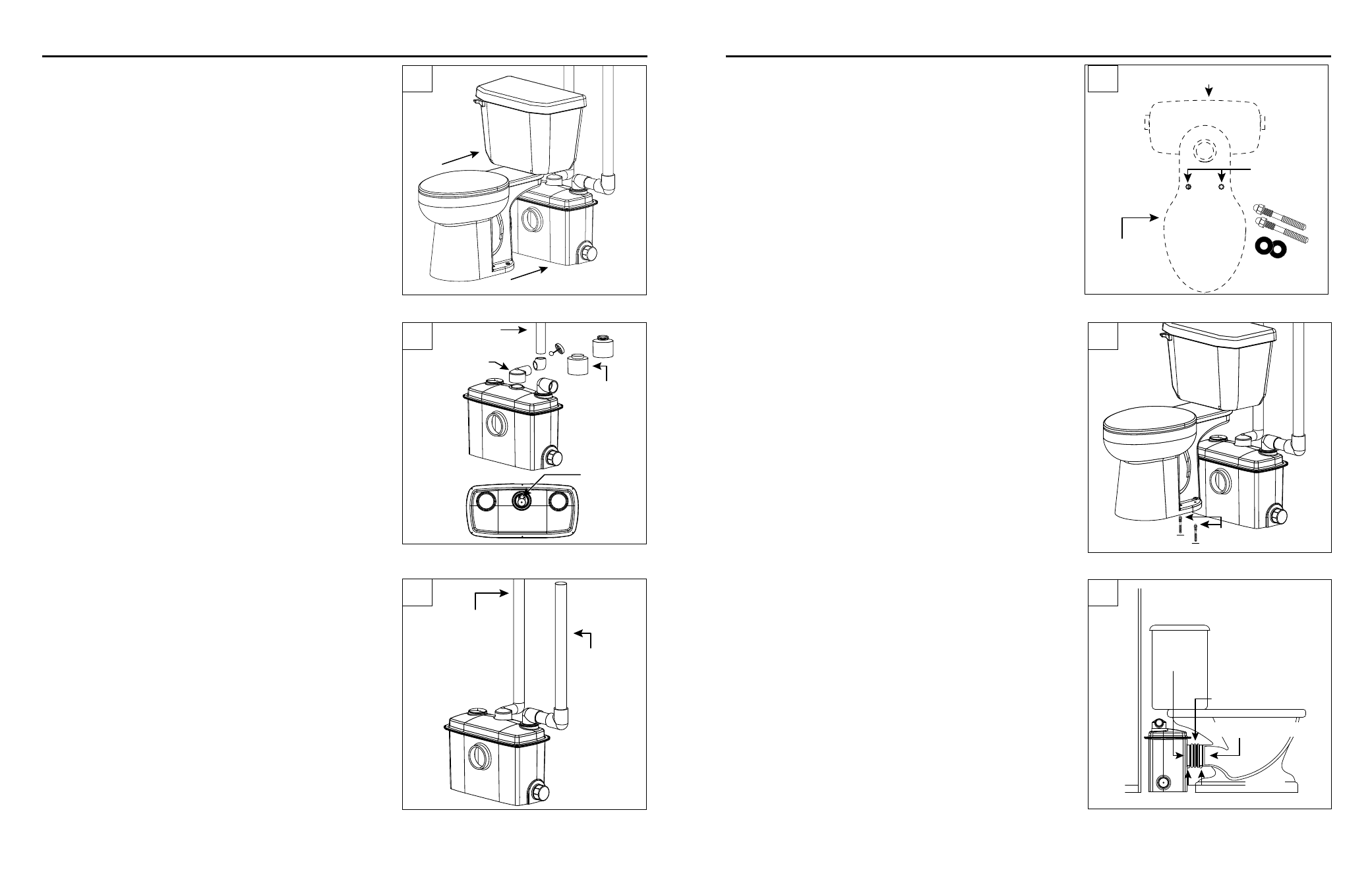

TOILET INSTALLATION
1. Pre-drill holes for closet screw sets at the points marked
earlier and install screws in holes.
Grinder/tank unit location
Closet
Screw Set
Locations
IL1751
Toilet
Location
4. Temporarily set the toilet in place to check that there
is no piping interference. Remove the toilet and set it
aside.
5. Using a 2 step PVC gluing system, connect the
discharge piping and grinder/tank unit discharge fitting.
CAUTION: When applying glue to discharge fitting,
ensure that none gets into the check valve assembly,
which is built into the cover of the grinder/tank unit. Pay
close attention to the proper alignment of the discharge
fitting previously marked in STEP 1.
6. Using a 2 step PVC gluing system, connect vent piping
as required for proper venting.
PIPING
3. For exposed installation, Install rubber coupling onto the
toilet discharge and grinder/tank unit hub and secure
with the worm clamps provided .
2. Place the toilet assembly over the closet screw sets.
Install the anchoring hardware and tighten in an
alternating pattern. Check for level and shim as required.
Be careful when tightening bolts or nuts against china to
avoid cracking the china.
IL1748
IL1749
2-Step
PVC
Gluing
System
Check
Valve
Assembly
Discharge
Fitting
Discharge
Pipe
IL1750
Vent
Pipe
Discharge
Pipe
IL1748
Closet Screw Sets
IL1753
Grinder/
tank unit
Inlet
Toilet Discharge
Rubber coupling
Clamps
4
5
6
1
2
3
