4 5

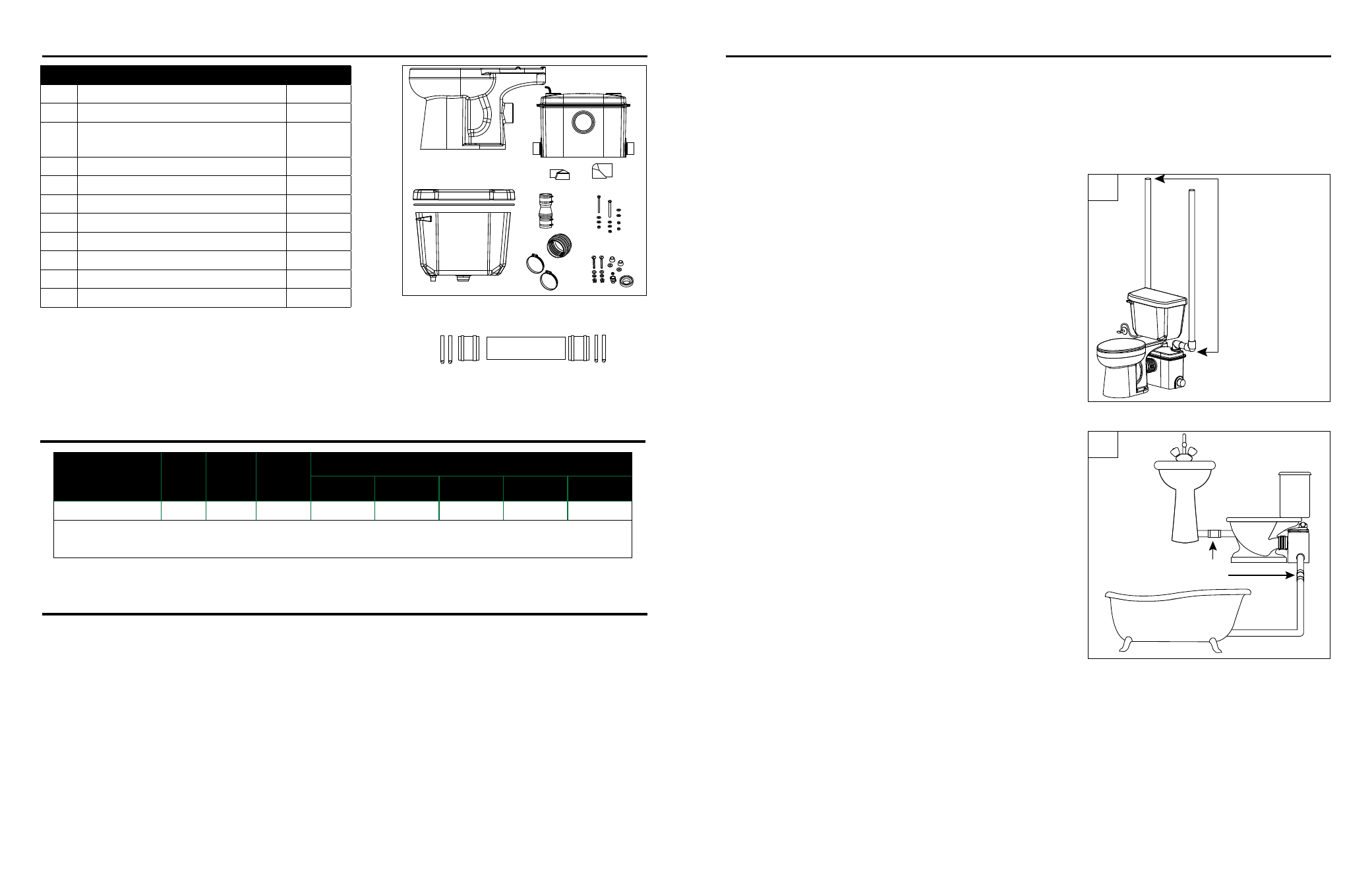

Before beginning installation of product, make sure all parts are present. Compare parts with package
contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Installation Time: 5 hours for non-hidden installation or additional fixtures.
Tools Required for Assembly (not included): tape measure, pipe tape, hacksaw, flathead screwdriver,
2-step PVC glue system (primer and sealer), hydraulic cement or other material
Part Description Quantity
A Rear flush toilet 1
B Toilet tank, lid & gasket 1
C
1/2 HP mini-grinder pump unit
with discharge fittings 1
D 2 in. x 1 in. 90° discharge fitting 1
E 1-1/2 in. vent fitting 1
F Check valve 1
G Grinder tank hardware pack 1
H Rubber coupling 1
J Clamps for rubber coupling 2
K Toilet hardware pack 1
L* Installation instructions 1
*Not Shown
PREPARATION
Parts Required For Assembly (not included): ,Discharge pipe and fittings per code, vent pipe and
fittings per code, ball valve or gate valve, union, water supply line, closet screw sets designed for
cement, 2 step PVC gluing system.
NOTE: For installations with pump unit hidden behind a wall, purchase extension kit 023260.
PACkAGE CONTENTS GENERAL PUMP USES
SPECIFICATIONS
A
B
C
D
E
IL1729
F
G
H
J
K
Model HP Volts Amps
Gallons Per Hour Lift Capacity
5 ft. 10 ft. 15 ft. 20 ft. 25 ft.
S1201/S1202 1/2 115 7 2700 2400 2100 1620 960
Recommended for installations up to 20 ft. total dynamic head. Consult factory if installation is
above 15 ft. vertical height in 1 in. pipe.
The Powerflush Optima allows you to add a bathroom in a variety of places:
Basements
New Homes
Cabins
Additions
Workshops
Garages
Slab Construction
Commercial Buildings
1. The patented grinder/tank system is designed to move
waste water and sewage up to existing sewer lines
recommended for installations up to 20 ft. total dynamic
head.
Recommended
for up to 20 ft.
total dynamic
head
IL1733
2. Multiple fixtures can drain into Powerflush Optima,
allowing you to include a bath or shower as well as
a vanity sink. Simply plumb these additional items
directly to the grinder/tank unit.
IL1734
Check
Valve
1
2
NOTE: For installations with pump unit hidden behind a wall,
purchase extension kit 023260.
IL1764
