6 7
IL1731
Optional Extension Kit 023260
Grinder/Tank
Unit
Wall
Level to within 1/8 in.
Power cord

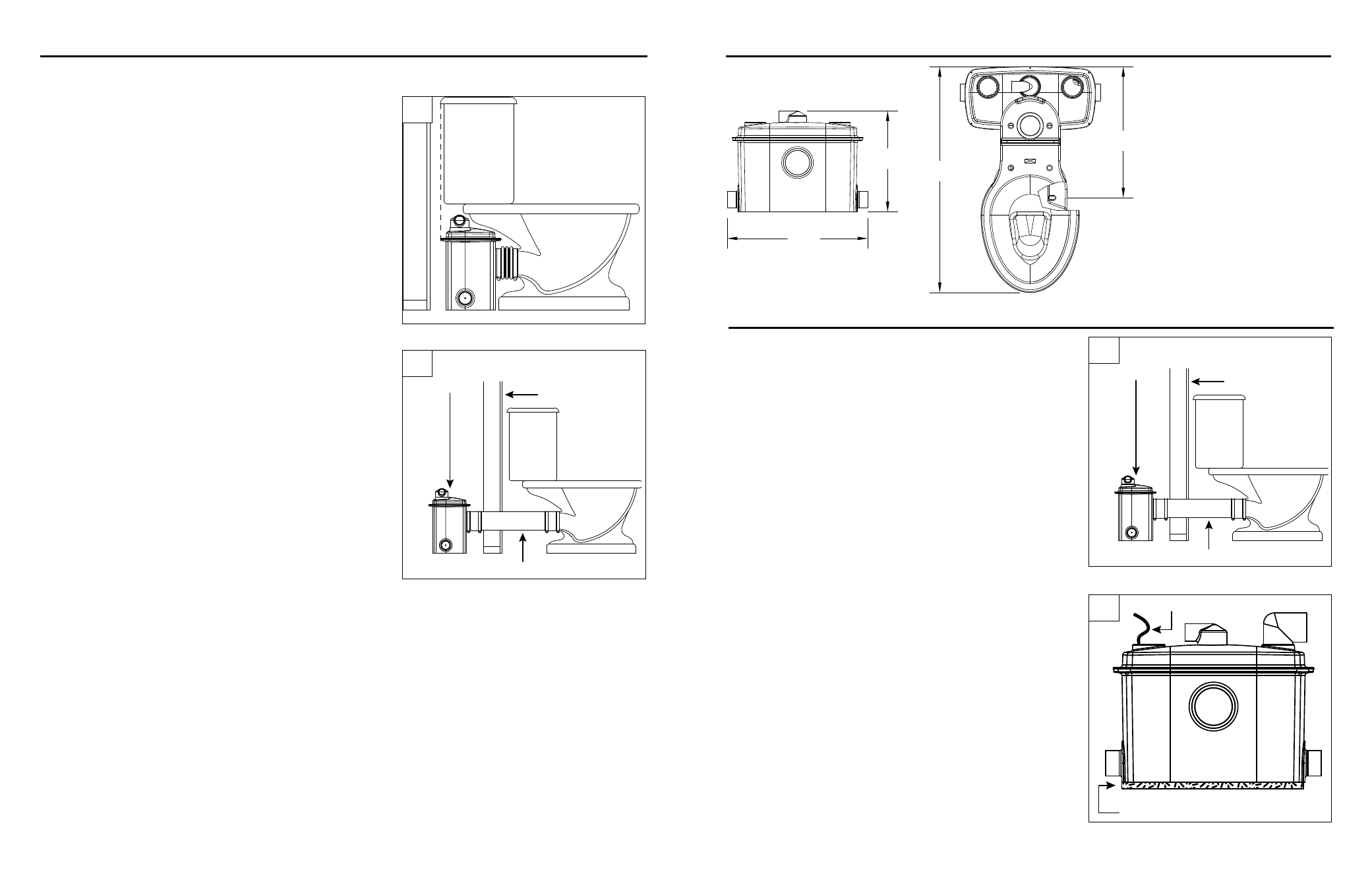

LOCATION SELECTION AND LEVELING OF TANk
NOTE: If grinder/tank unit wlll be hidden behind a wall,
be sure to allow access to the pump & switch after
installation.
1. Select a location which is readily accessible to
the existing discharge and vent lines. Installation
behind a wall will require extension kit 023260 (sold
separately).
1
2. Level grinder/tank unit to within 1/8 in. for length and
width. Use hydraulic cement or similar material for
leveling.
CAUTION: Do not use wooden shims to level tank.
CAUTION: Ensure that nails, screws or other sharp
objects do not puncture tank
2
DIMENSIONS
17-1/2 in.
Dim A.
14-3/8 in.
20 in.
All dimensions are in
inches.
Dim A:
S1201 Round Bowl = 29 in.
S1202 Elongated Bowl = 31.5 in.
IL1731
Optional Extension Kit 023260
Grinder/Tank
Unit
Wall
4. Hidden Installation (grinder/tank unit is hidden behind
wall). For installation behind a wall, extension kit
023260 (sold separately) is required.
4
GENERAL PUMP USES
IL1730
3. Exposed Installation (grinder/tank unit is
visible behind toilet).
This grinder/tank system can be used in the following installations:
3
