5.3 FILLING THE LIQUID FERTILIZER TANK
To fill the liquid fertilizer tank:
1. Remove fill cap, 1 Figure 33, and attach
fill hose from liquid fertilizer supply
source to the quick coupler.
2. Ensure that main valve, 2 Figure 33, is
in the closed position.
3. Open fill valve, 3 Figure 33 and begin
filling tank by starting fill pump.
4. When tank is near full, shut off fill pump
and close fill valve, 3 Figure 33.
5.4 LIQUID FERTILIZER APPLICATION RATE
1. Refer to the Calibration section of this
Operator’s Manual to determine the
proper pump setting. To adjust the
pump setting:
2. Loosen pointer setting nut, 1 Figure 34.
3. Rotate dial, 2 Figure 34, to desired
setting.
NOTE: If dial is difficult to turn by
hand, use the supplied pump setting
wrench.
4. Tighten pointer setting nut firmly, but do
not over tighten.

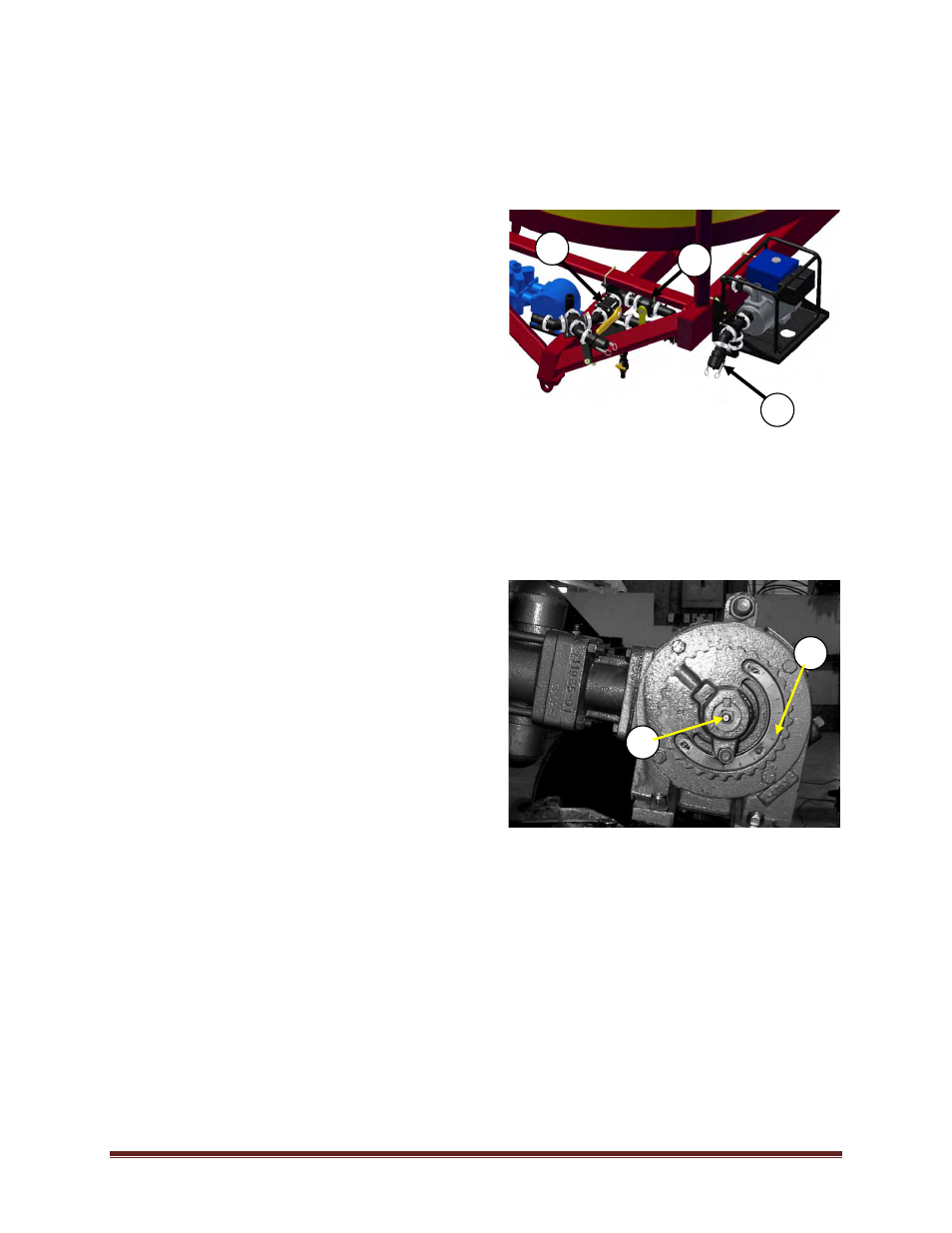

Figure 33
2
1
Figure 34
3
1
2
