Manual Granular and Liquid Tanks Page 31
4.10 GROUND DRIVE METERING
The ground drive metering system is engaged by activating an electric clutch, Figure 31.
A switch on the control panel in the cab toggles “ON” and “OFF” and a lamp in the
switch indicates when the switch is toggled “ON”.

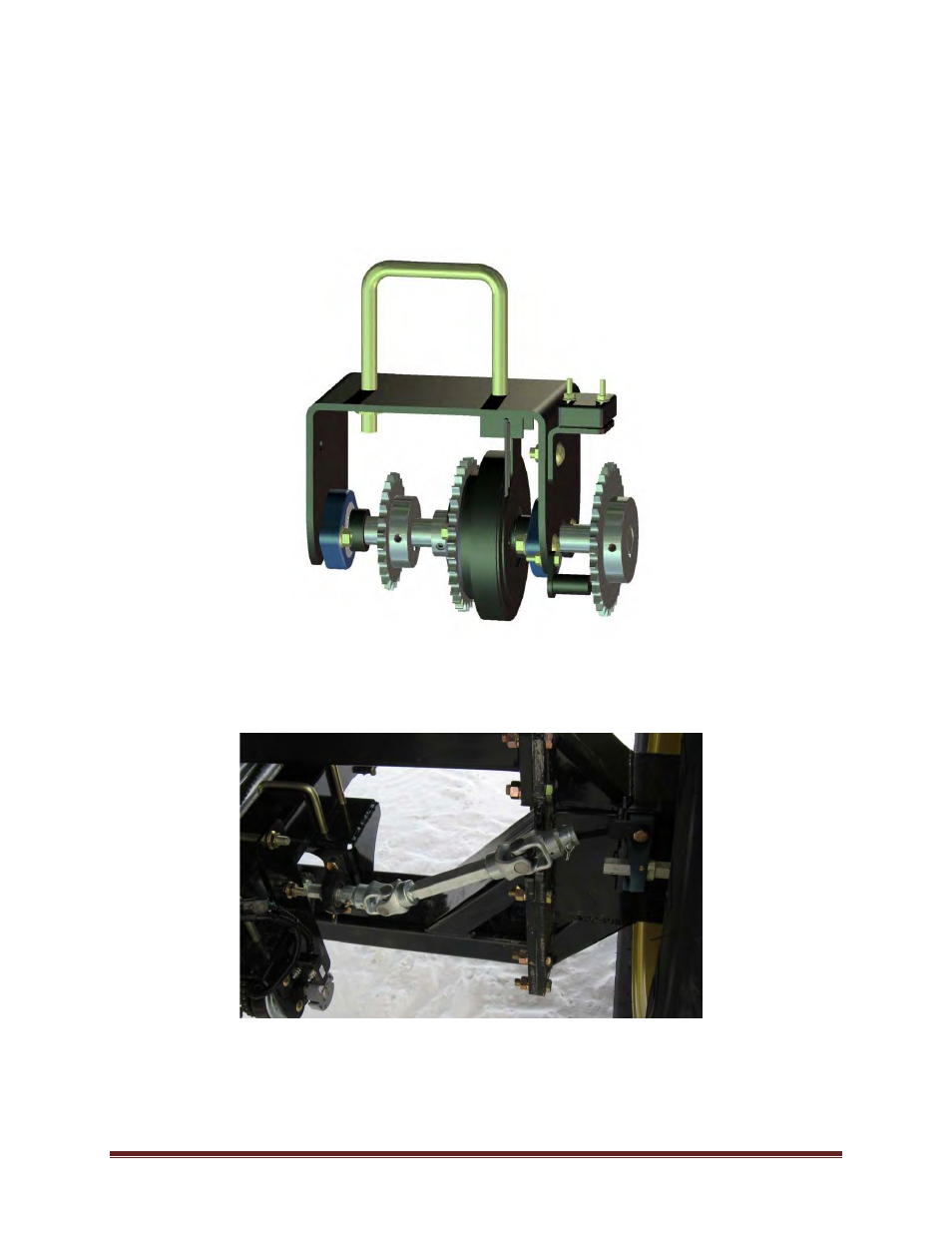

Figure 31: Clutch Assembly
NOTE: Disengage ground drive (Figure 32) when transporting. Clutch damage
may occur if drive line is not disengaged when travelling.
Figure 32: Ground Drive
