4.2.1 Positioning the Conveyor
NOTE:
Ensure that the area in the vicinity of conveyor operation is free of
obstructions and that all bystanders, especially children, are kept at a safe
distance before positioning or operating the conveyor.
1. Ensure your tractor circuit is
engaged in the correct direction prior
to engaging the conveyor diverter
valve. If circuit is already engaged,
direct the fan diverter valve to the
conveyor position from the fan location,.
Use the remote provided to move the
conveyor in and out of transport. NOTE:
If remote does not operate properly
use manual levers to keep using the
conveyor, Figure 15.
2. Remove pin from outer arm locking
mechanism and unlatch, Figure 16.
3. Remove pin from rear locking arm and
lower conveyor, Figure 17.
4. Unfold conveyor, moving outer arm first
and position it where filling and emptying
the tank is optimal. Unfold conveyor
hopper.
5. Hydraulic cylinders will hold the position
so conveyor will not move if positioned
on level ground.
6. If required the wheel can be raised to
decrease the height of the hopper.

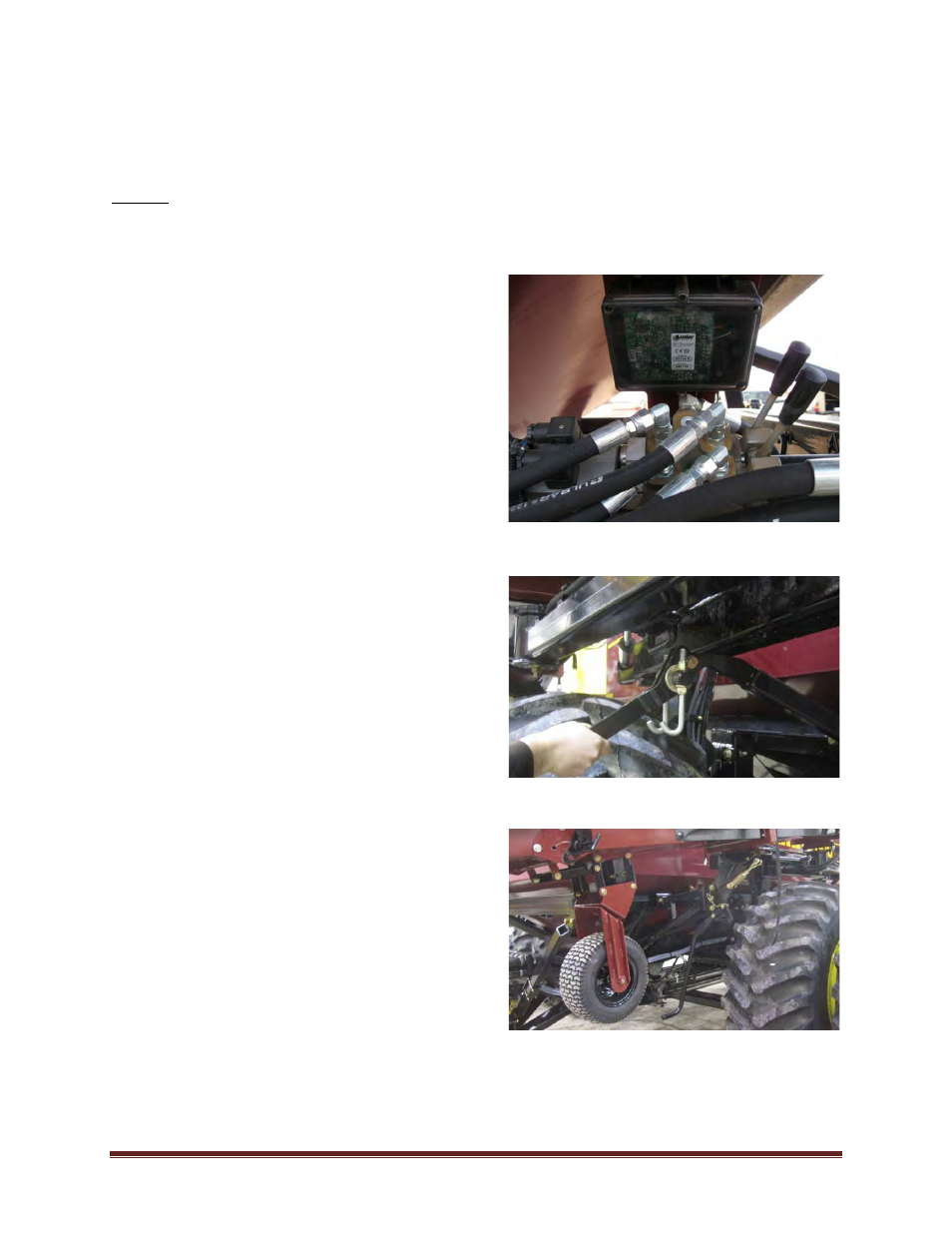

Figure 15
Figure 16
Figure 17
