SEED HAWK ® 2014 TOOLBAR OPERATOR’S MANUAL SEED HAWK ® 2014 TOOLBAR OPERATOR’S MANUAL 20
Item Description
1 Seed Knife
½” thick, includes stainless steel clip and
rubber drop tube
2 Fertilizer Knife
½” thick, includes stainless steel clip and
rubber drop tube
3
Packer Tire (Pneumatic or
Semi-Pneumatic) The packer/gauge wheel. 5 bolt hub for
tapered hub and bearing
4 Packer Arm Improved mud clearance
5 Main Shank Arm 5/8” thick
6 Shank Cylinder
Hydraulic pressure applied to the rod end
of the cylinder
7
Depth Adjustment pivot
point
The relationship of seed to fertilizer place-
ment will always stay the same with the
pivot point at this location
8
Quick Pin depth setting
device
A positive pin setting. Provides easy
adjustment to obtain optimum seed and
fertilizer depth
9 Chain
A visual from the tractor cab to use as a
reference to the proper packing and pene-
tration forces needed per field

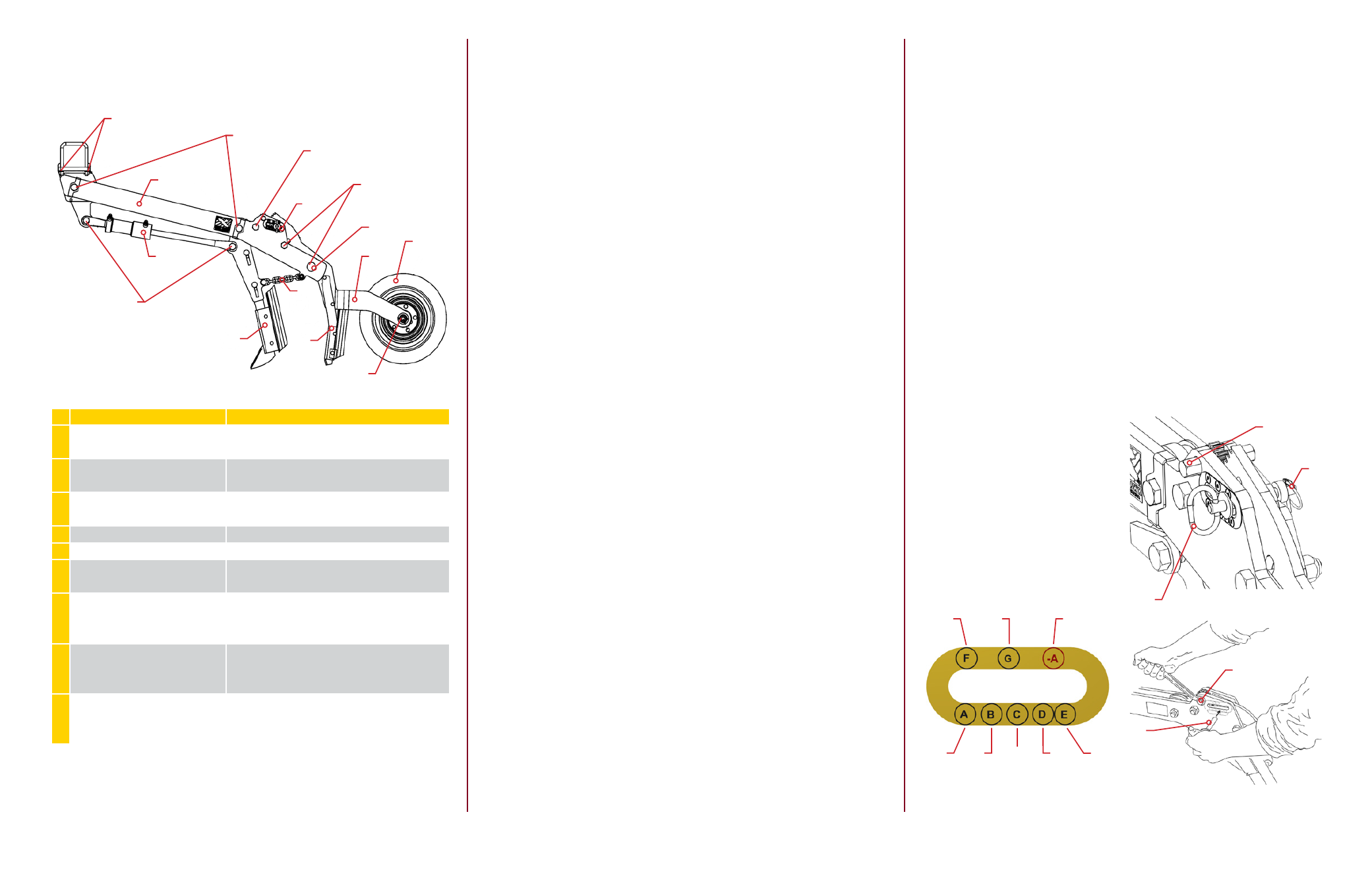

3.6 Openers
1
6
5
9
3
8
2
7
4
140 lb-ft
(190 N•m)
180 lb-ft
(244 N•m)
65 lb-ft
(88 N•m)
65 lb-ft
(88 N•m)
50 lb-ft
(68 N•m)
100 lb-ft
(136 N•m)
3.6.1 Quick Pin Opener
NOTE: Seed and fertilizer depth are always measured down from the packed
surface of the furrow.
21
1
3
2
The seed and fertilizer knives are mounted at a fixed distance apart on the
opener arm assembly. The knives are also offset laterally to place seed and fer-
tilizer in adjacent, yet separate, furrows. The packer/gauge wheel packs the soil
around the complete disturbed areas of the furrows to ensure optimum seed/
soil contact and fertilizer placement as well as maintaining available soil mois-
ture.
Hydraulic pressure to the main arm assemblies is controlled and adjusted from
the tractor.
ATTENTION! It is the responsibility of the operator to check the
seed depth across the toolbar at every field.
3.6.2 Seed Depth
Placing the seed at the proper depth and keeping the depth setting consistent
are critical to achieving optimum germination. The packer wheels are factory set
to place seed at a depth of ¾ in. (19mm) below the packed surface of the soil.
Fertilizer is placed approximately ¾ in. (19mm) below and 1-½ in. (38mm) to
the side of the seed.
To adjust seed depth:
1. Remove retaining pin from the
quick pin.
2. Remove quick pin from opener
shank.
3. Rotate the packer arm gear using a
¾” wrench, and align the correspond-
ing pin hole with the desired depth
setting (marked on the decal).
4. Replace the quick pin and the
retaining pin.
3
4
Less than 3/8”
(9.5mm)
3/8"
(9.5mm)
½"
(12.7mm)
5/8"
(15.9mm)
1-¼"
(31.7mm)
1-½"
(38.1mm)
¾"
(19mm)
1"
(25.4mm)
NOTE: The seed depth set-
tings are affected by ground
conditions, it is the opera-
tor's responsibility to check
seed depth after adjustment
and throughout seeding to
ensure proper seed depth is
maintained.
