A-4 INSTALLATION
LN-15 ACROSS THE ARC MODEL
A-4
CV655
V350-PRO
DC400
DC600
DC655
RANGER 9
RANGER 250
RANGER 300 DLX
RANGER 305G
COMMANDER 300
COMMANDER 500
Work
Clamp
Electrode Cable
Electrode Cable
Electrode Cable
Work
Clamp
Work
Clamp
Across the Arc
K1870-1
RANGER 8
SAE 400 WITH CV ADAPTER
ENGINE DRIVEN
WELDERS WITH
WIRE FEED MODULE
(LOCAL MODE)
CV250
CV300
CV400
Across the Arc
K1870-1
CC POWER SOURCE
Across the Arc
K1870-1
Output Terminals
Always Hot.
Output Terminals
Always Hot.
Output Terminals
Always Hot.
Order K484 Jumper
Plug Kit.
Output Terminals
Always Hot.
Power source contactor
switch must be in the "ON"
position or use a K848
Junper Plug Kit.
Across the Arc
K1870-1
Electrode Cable
Work
Clamp

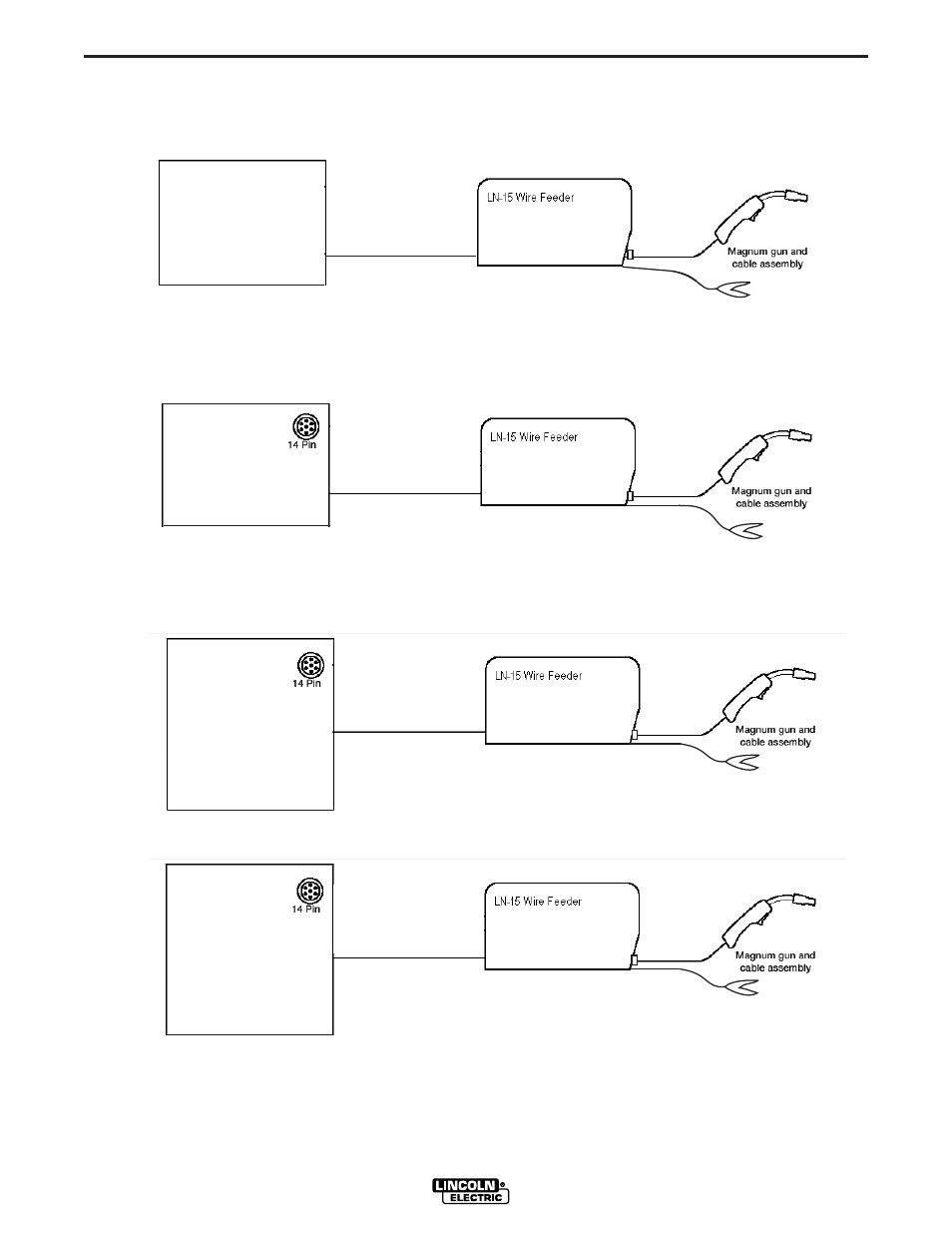

CONNECTION DIAGRAM, ACROSS THE ARC MODEL Set-Up ( See Figure A.1)
Typically used for general fabrication, maintenance and repair jobs because it ’ s easy to set up and operate.
Requires only one cable-less to carry. Contactor standard on Across The Arc Model.
FIGURE A.1
Although a constant voltage (CV) power source is recommended for best results with Innershield ® and gas
metal arc (GMAW) open arc welding, satisfactory general purpose welding may be obtained using the LN-15
with a constant current (CC) power source for noncritical commercial quality mild steel welding applications.
