DC-600 RED-D-ARC
C-1 ACCESSORIES C-1
WIRE FEEDERS AND TRACTORS
The DC-600 can be used to power any of the follow-
ing Lincoln Wire Feeders and Tractors:
Semi-Automatic Wire Feeders:
DH-10 LN-9 GMA
LN-7 LN-10
LN-7 GMA LN-15P
LN-742 LN-23P
LN-8 LN-25
LN-9
Automatic Wire Feeders:
NA-3 NA-5R
NA-5
Tractors:
LT-7 LT-56
FIELD INSTALLED OPTIONS
Remote Output Control (K857 or K857-1
with K864 Adapter)
An optional “remote out control” is available. The
K857 or K857-1 are the same remote control options
that are used on other Lincoln power sources. The
K857 or K857-1 consist of a control box with 25 feet
(7.6 meters) or 100 feet (30.3 meters)
The K857 and K857-1 have a 6-pin connector and
K857 require a K864 adapter cable which connects to
the 14-pin connector on the case front.
Remote Control Adapter Cable (K864)
A "V" cable 12" (.30 m) long to connect a K857 or
K857-1 Remote Control (6-pin connector) with an LN-
7 wire-feeder (14-pin connector) and the machine (14-
pin connector). If a remote control is used alone the
wire-feeder connection is then not used.
Undercarriages (K817P, K842)
For easy moving of the machine, an optional under-
carriage (K842) is available with mountings for two
gas cylinders at rear of welder.
Paralleling Kit (K1611-1)
Permits paralleling of two DC-600's for welding cur-
rents of up to 1200 amps, 100% duty cycle.
Tig Module (K930-2)
Portable high frequency generator for AC/DC TIG
welding.
FACTORY OR FIELD INSTALLED
OPTIONS
Multi-Process Switch (K804-1)
The MULTI-PROCESS SWITCH gives you the ability
to:
•
Switch between "stick welding or air/carbon arc
cutting" and using a semi-automatic or automatic
wire feeder.
• Change the polarity of a semi-automatic or auto-
matic wire feeder without changing any electrical
cable connections.

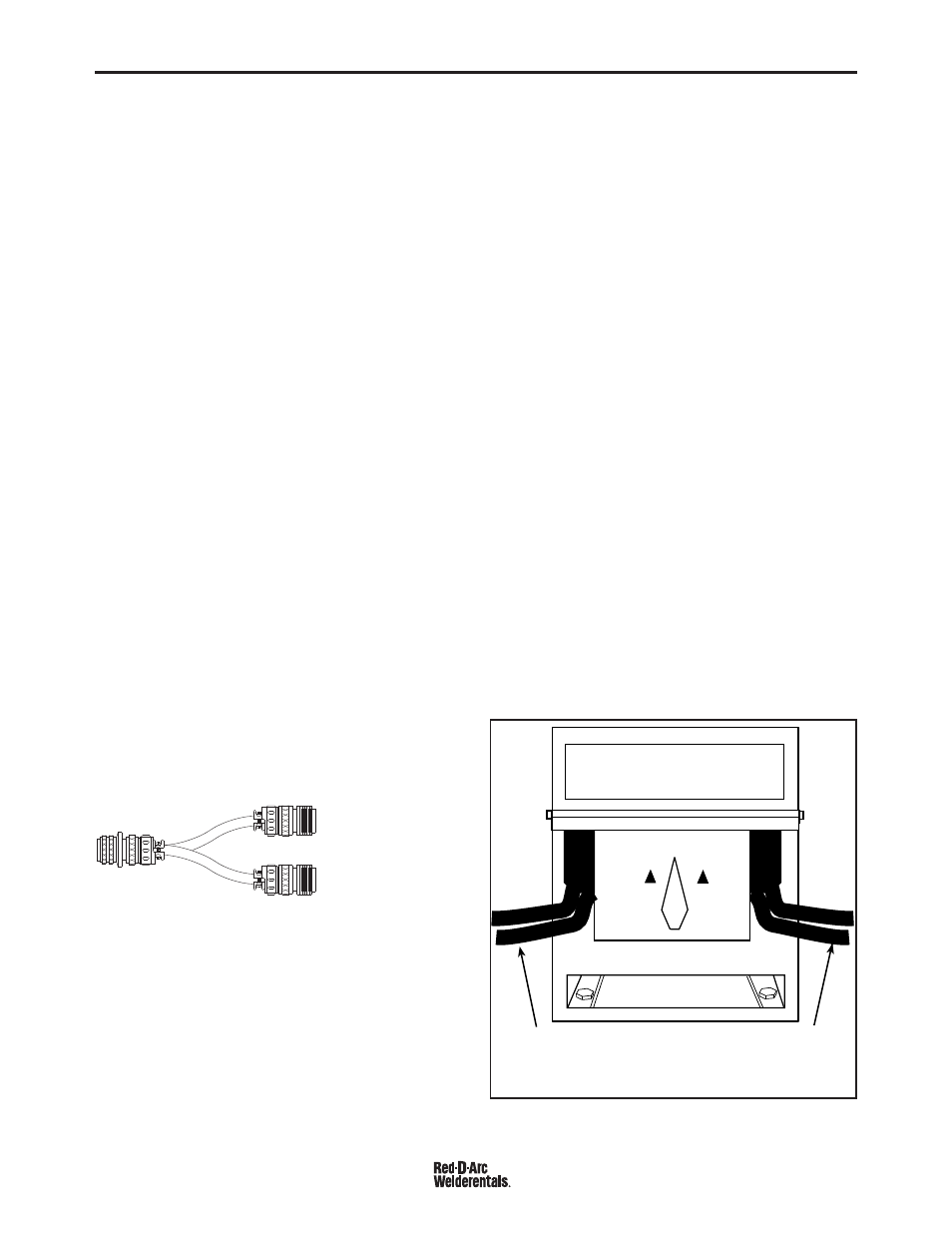

See Figure C.1
FIGURE C.1 - MULTI-PROCESS SWITCH
S T R A I G H T P L U G ( 1 4 P I N )
T O P O W E R S O U R C E C A B L E R E C E P T A C L E ( 6 S O C K E T )
C A B L E R E C E P T A C L E ( 1 4 S O C K E T )
T O : K 8 5 7 O R K 8 6 7 - 1
R E M O T E C O N T R O L
T O : L N - 7 W I R E F E E D E R S
– +
WIRE
FEEDER
CABLES
STICK OR
AIR/CARBON
ARC CABLES
STICK OR-
AIR-
CARBON-
ARC
+
-
