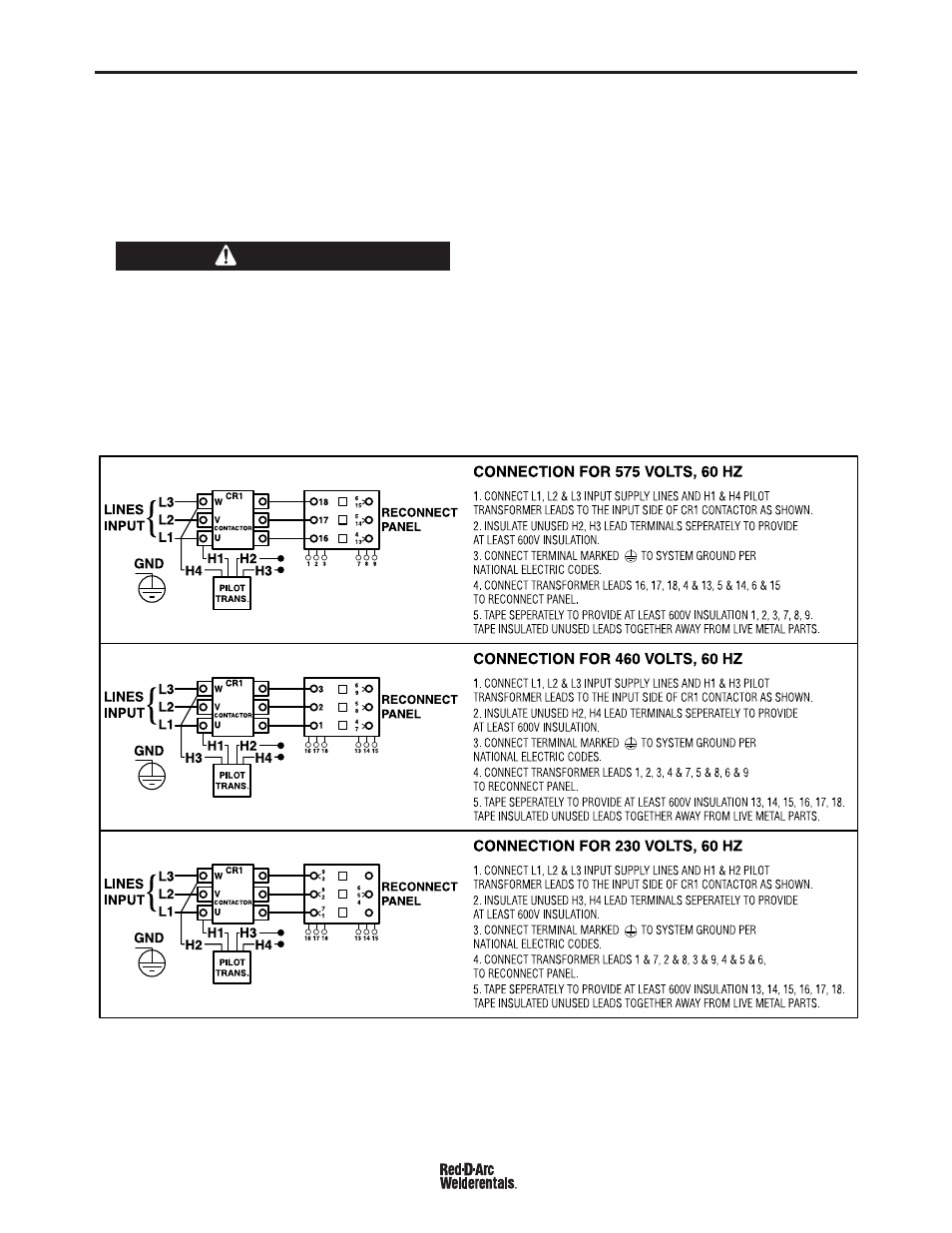

FIGURE A.4-Reconnect Panel Board Positions for 230/460/575 VAC Machines
A-4 INSTALLATION A-4
RECONNECT PROCEDURE
Multiple voltage machines are shipped connected to
the highest input voltage listed on the machineʼs rating
plate. Before installing the machine, check that the
Reconnect Panel in the Input Box Assembly is con-
nected for the proper voltage.
Failure to follow these instructions can cause
immediate failure of components within the
machine.
When powering welder from a generator be sure
to turn off welder first, before generator is shut
down, in order to prevent damage to the welder.
------------------------------------------------------------------------
To reconnect a multiple voltage machine to a different
voltage, remove input power and change the position
of the reconnect board on the Reconnect Panel.
Follow The Input Connection Diagram located on the
inside of Case Back Input Access Door. These con-
nection diagrams for the following codes are listed
below.
1. For 230/460/575, see Figure A.4. (M15666)
2. For Voltages not listed, see the Input Connection
Diagram pasted on the inside of the Case
Back Input Access Door.
CAUTION
DC-600 RED-D-ARC
