C-1 ACCESSORIES C-1
IDEALARC DC-600
OPTIONS/ACCESSORIES
• Multi-Process Switch (K804)
• Remote Control Box Assembly (K775)
• Undercarriages ( K817P, K842)
• Paralleling Kit (S20428)
Semi-Automatic and Automatic Wire Feeders
• LN-7
• LN-8
• LN-9
• NA-3
• NA-5
MULTI-PROCESS SWITCH
The MULTI-PROCESS SWITCH gives you the ability
to:
•
Switch between "stick welding or air/carbon arc
cutting" and using a semi-automatic or automatic
wire feeder.
• Change the polarity of a semi-automatic or auto-
matic wire feeder without changing any electrical
cable connections.
See Figure C.1

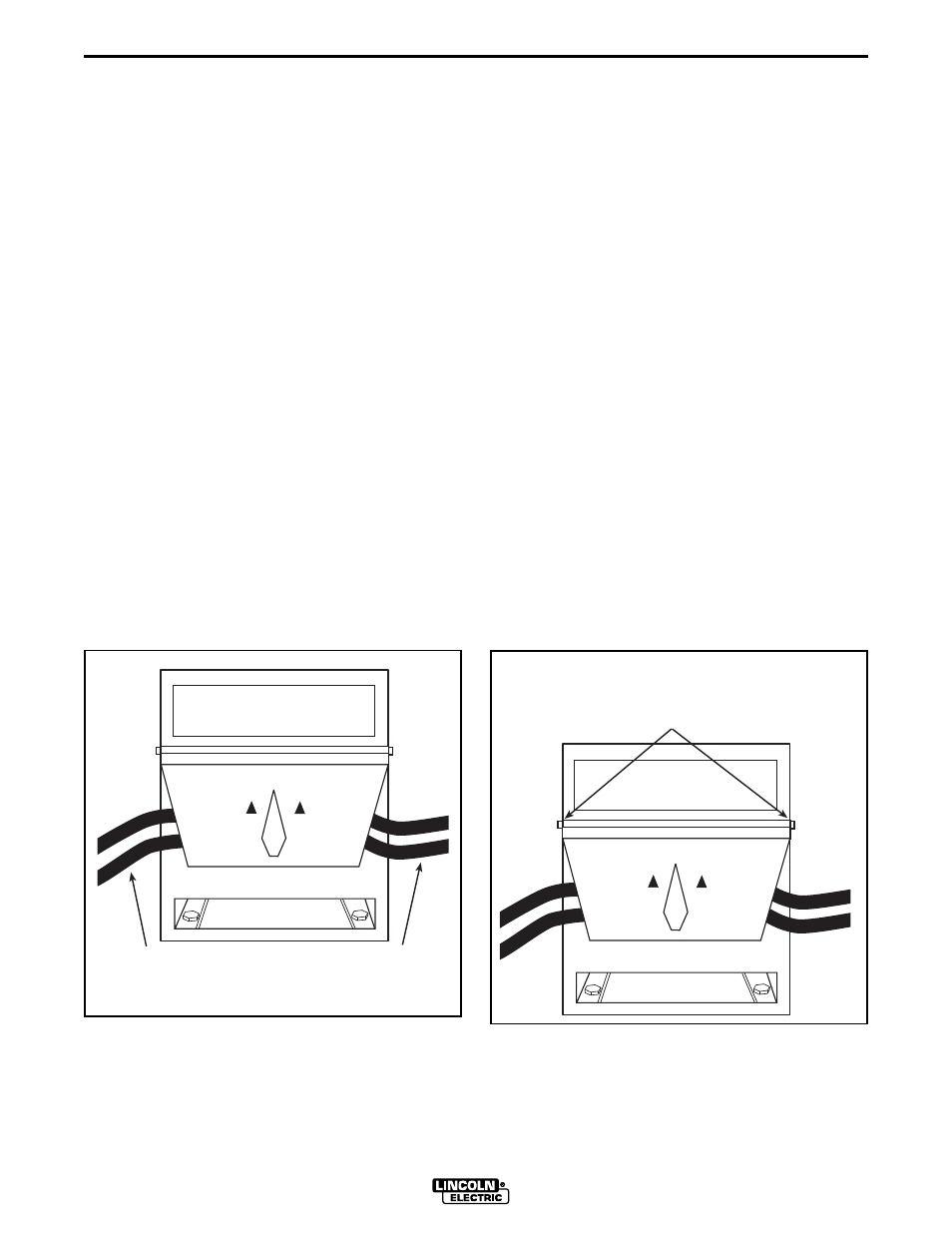

FIGURE C.1 - MULTI-PROCESS SWITCH
The MULTI-PROCESS SWITCH has two sets of out-
put terminals. You connect the wire feeder unit cables
to the set of terminals on the left side of the box and
the stick or air/carbon arc cables to the set of termi-
nals on the right side (facing the front of the machine)
as shown in Figure C.1.
When the MULTI-PROCESS SWITCH is in the "Stick
or Air/Carbon Arc" position, only those
terminals are energized. The wire feeder nozzle or
gun and electrode are not electrically "hot" when in
this mode.
Follow these steps to install the MULTI-PROCESS
SWITCH:
1. Confirm that the IDEALARC DC-600 ON/OFF
PUSH BUTTON is in the OFF position.
2. Disconnect main AC input power to the IDE-
ALARC DC-600.
3. Open the terminal strip access door located on
the Case Front Assembly.
4. Remove the two front, middle screws that secure
the two side panels of the machine. See Figure
C.2.
FIGURE C.2 - SIDE PANEL REMOVAL
}
Semi-Automatic Wire Feeders
}
Automatic Wire Feeders
– +
WIRE
FEEDER
CABLES
STICK OR
AIR/CARBON
ARC CABLES
NEGATIVE
POSITIVE
STICK OR
AIR
CARBON
ARC
– +
REMOVE SCREWS
TO MOUNT
MULTI-PROCESS
SWITCH
NEGATIVE
POSITIVE
STICK OR
AIR
CARBON
ARC
