©2010 Johnson Level & Tool - Rev. 1 11
Detector Usage (included in Model No. 40-6516)
1. Technical Specifications
Detecting precision
Fine: ±0.039" (±1mm)
Coarse: ±0.098" (±2.5mm)
Turn-off timer 10 minutes
Three types of sound
Size
6.614" x 2.677" x 0.905" (168 X 68 X 23mm)

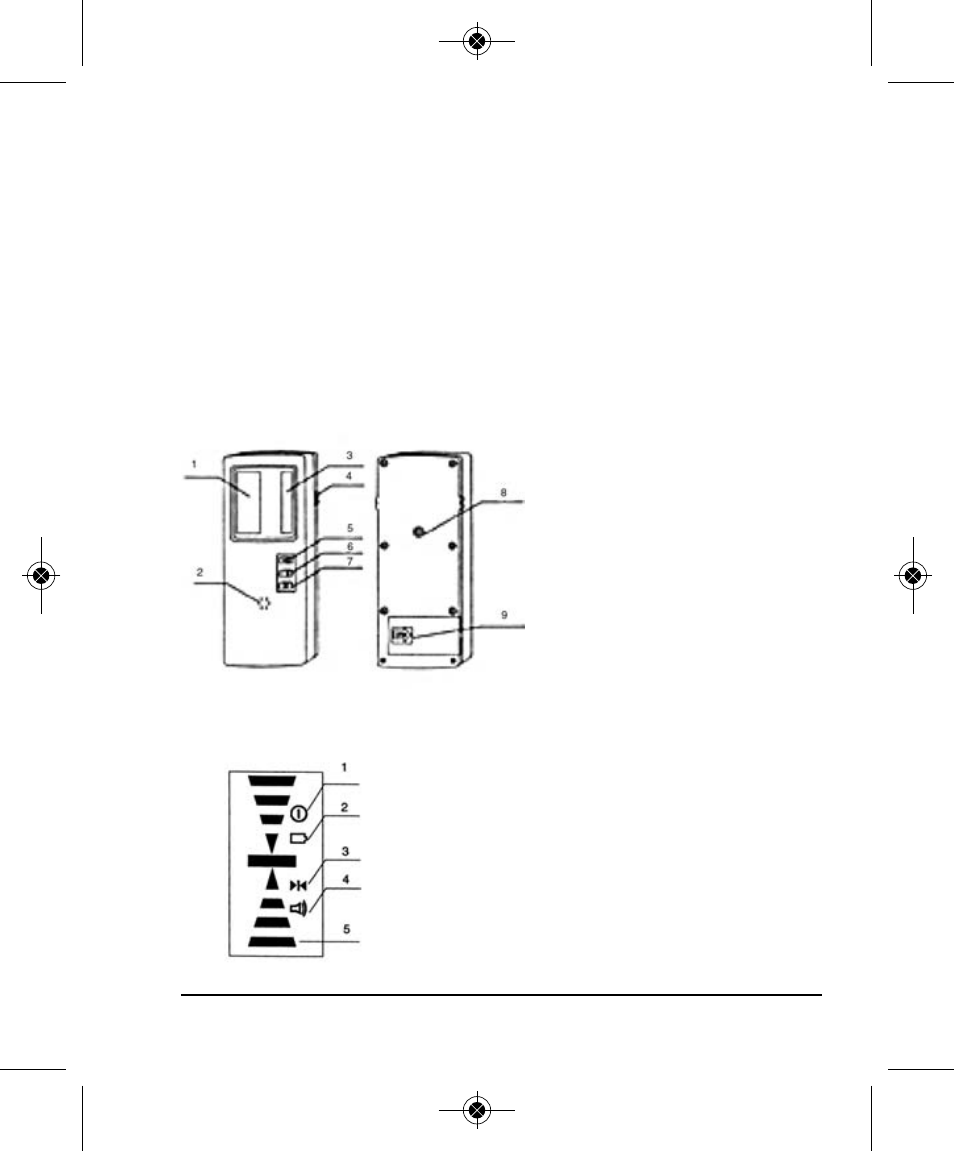

2. Components
(a) Structure
1. Display window
2. Buzzer
3. Receiving window
4. Reference rabbet
5. Sound button
6. Coarse/Fine detection button
7. Power button
8. Threaded hole
9. Battery-box cap
(b) Display
1. Power symbol
2. Low battery symbol
3. Coarse/Fine detection symbol
4. Sound symbol
5. Detecting position symbol
